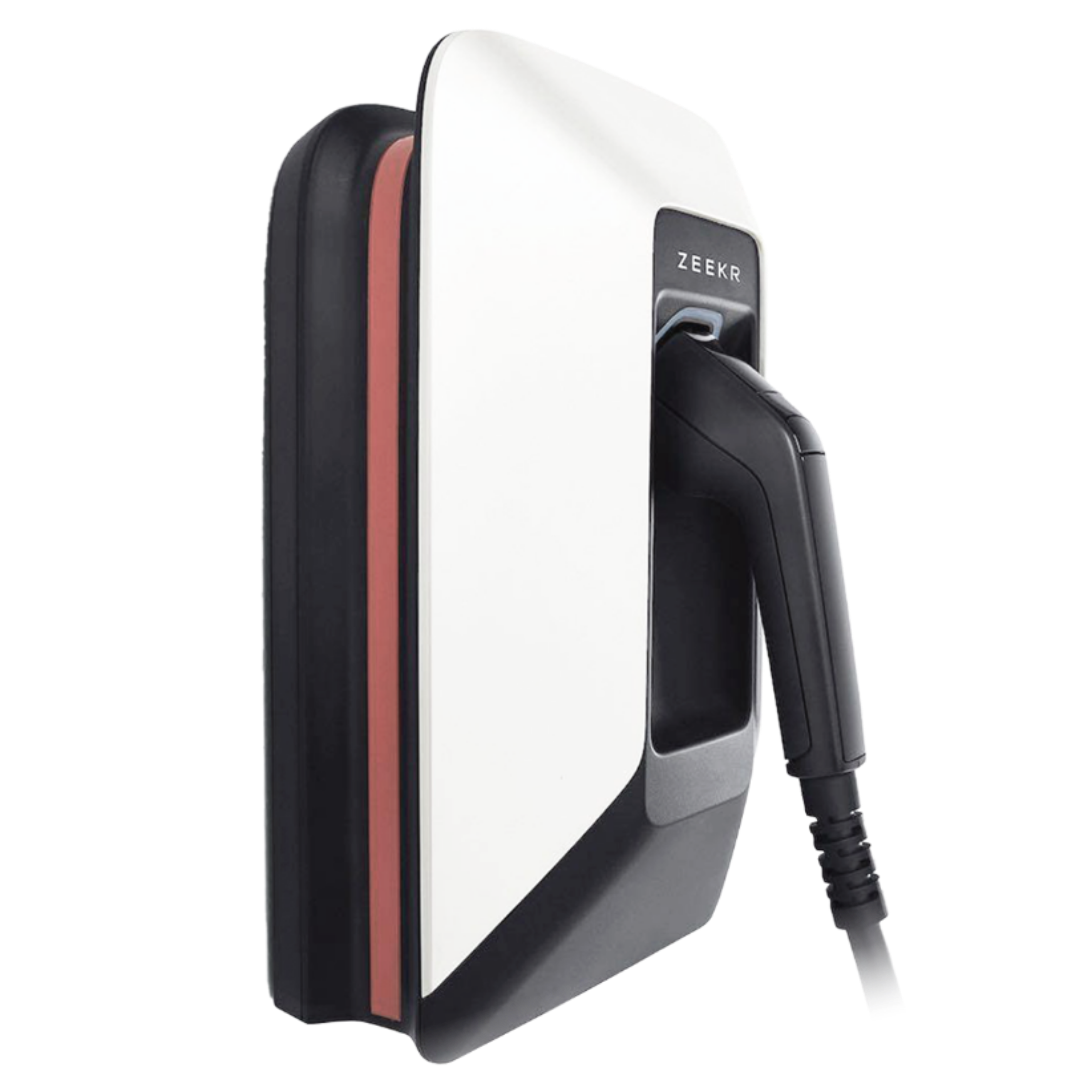

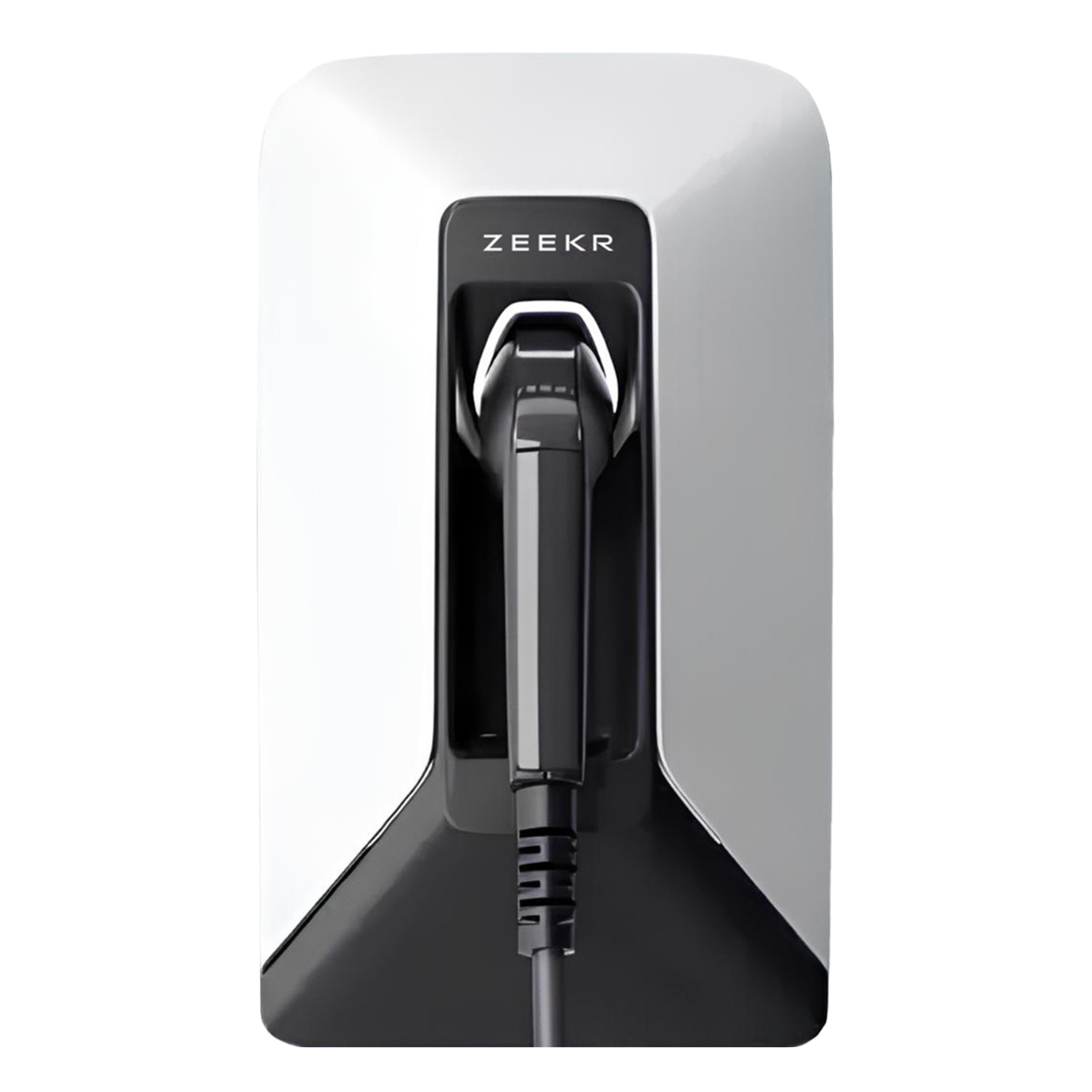

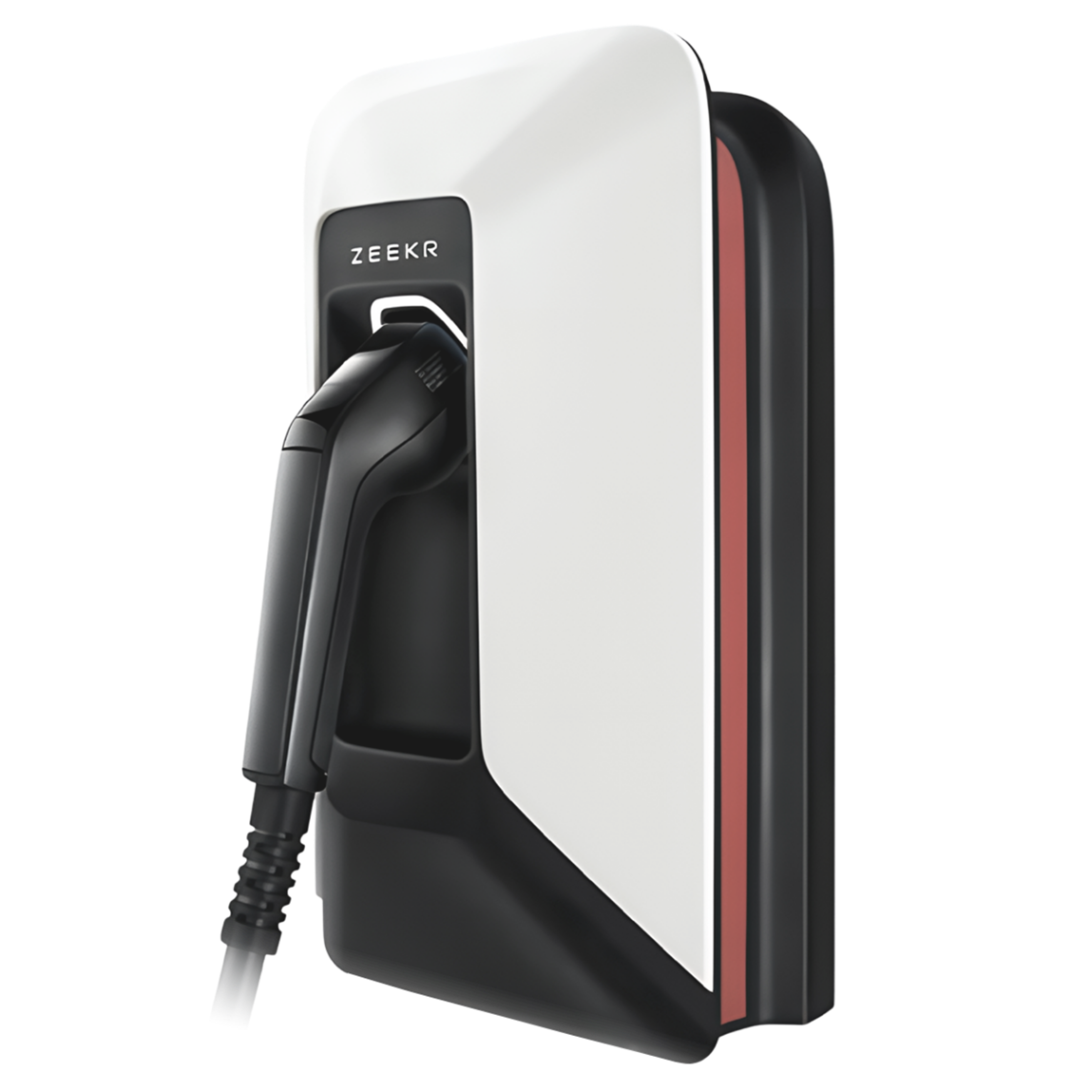

Zeekr AC Wallbox EV Charger
The Zeekr Wallbox AC EV Charger is a versatile and feature-rich charging solution for electric vehicles.
-
Power Output Options: 7kW / 22kW
-
Charging Mode: AC Mode 3
-
Connector Options:
- IEC 62196 Type 2 Cable (5m length)
- Type 2 Socket with Shutter
- IEC 62196 Type 2 Cable (5m length)
-
Installation Flexibility
- Wall-mounted
- Pedestal with Wiring Backplate
- Wall-mounted
-
LED Strips: Clear visual indicators for charging status, errors, and connectivity.
- Residual current protection: Type A 30mA AC + 6mA DC
Zeekr AC Wallbox
Engineered for Tomorrow’s Drive.
Connector Type
Type 2 (Mennekes)
Type 2 Connectors are the norm in Hong Kong for charging your electric car at home, on a standard AC electricity supply.
Connector Length
Zeekr AC Wallbox comes with a 5 meters long of the connector plug.
Easy Installation
Zeekr AC Wallbox can be easily installed on wall or pedestal with its wiring back-plate design.
Wall Mounted Installation
Standing Pole Installation
Durability
Works in different condition.
IP54
Enclosure Hardnress
IK08
Impact Protection
-30°C ~ 50°C
Operating Temperature
Compatibility
Adapt to all Electric Vehicles in Hong Kong.
Dimension
Stylish and space-saving.
General specification
Zeekr AC Wallbox
LED Strips
Plug & Charge / RFID
Mode 3
Type 2 Connector / Socket
Black / White
5 meters
251 x 434 x 163 mm
5 - 9 kg
IP54
IK08
-30 ºC to 50 ºC
OCPP 1.6 JSON
IEC/EN 61851-1, IEC/EN 62955, IEC 61851-21-2
EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2, EN 61000-3-3, EN 61000-3-11, EN 61000-3-12
EN 300 328 V2.1.1, EN 300 330 V2.1.1, EN 301 908-1 V11.1.2, EN 301 908-13
Electrical specification
7kW (1P) / 22kW (3P)
230V (1P) ±20%
230/400V (3P) ±20%
50Hz / 60Hz
AC: 30 mA
DC: 6 mA
±1% Accuracy
UVP, OVP, OCP, Ground Presence, Relay Stuck,
Over Temperature, Phase Imbalance
