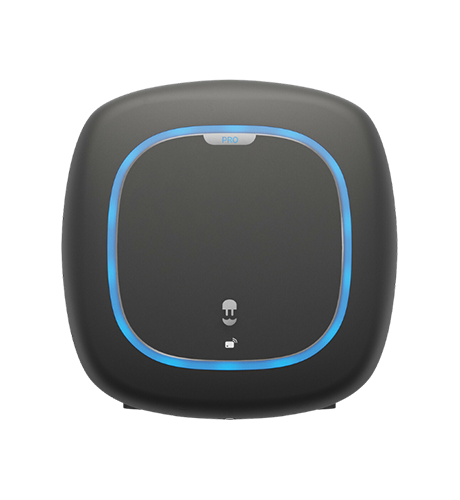

wallbox Pulsar Pro
Effortless shared charging
Always-ready accessibility for users. Easy management and control for network operators. One upgraded Pulsar charger designed especially for shared spaces.
- Reliable, cost-effective solution for shared spaces
- Integrated 4G connectivity and RFID access
- Compatible with all Wallbox Energy Management Solutions
- Power Sharing up to 100 chargers
- myWallbox App & Portal
- Built in DC 6mA Residual Current Detection

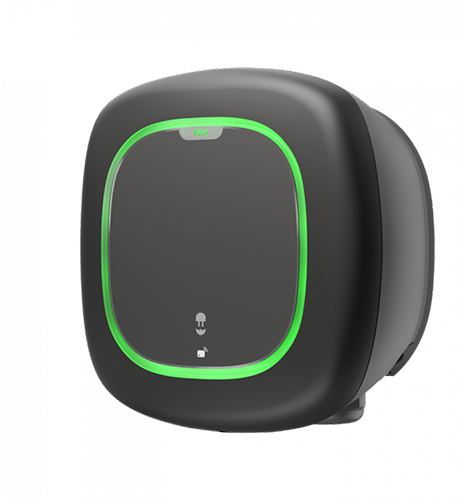

Wallbox Pulsar Pro
Effortless shared charging
Connector Type
Type 1 or Type 2 Connector Options cover all local EV models.
Type 1
J1772
Type 2
Mennekes

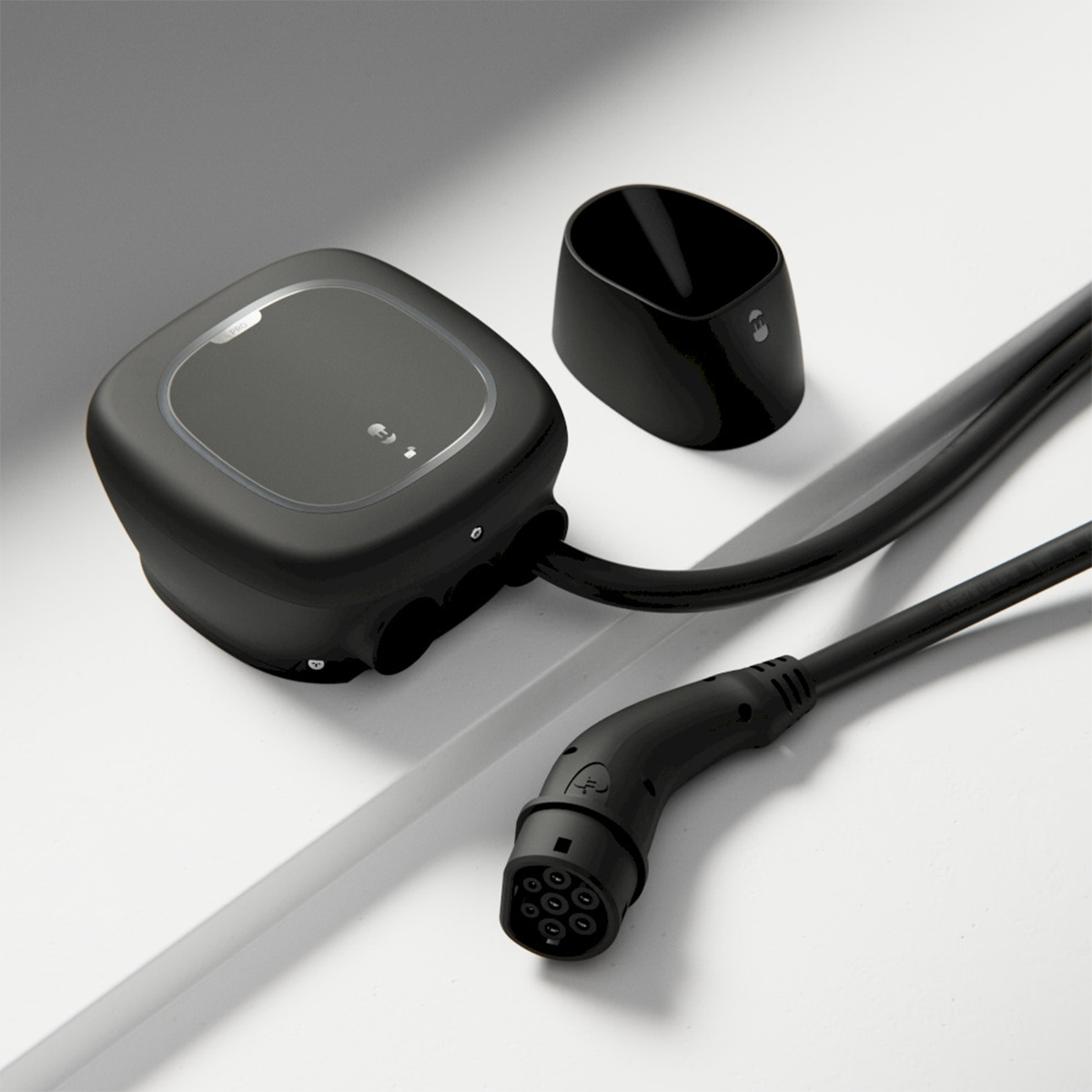

Connector Length
Pulsar Pro's charging connector comes with 5 meters long and there is an alternative option with 7 meters by request.

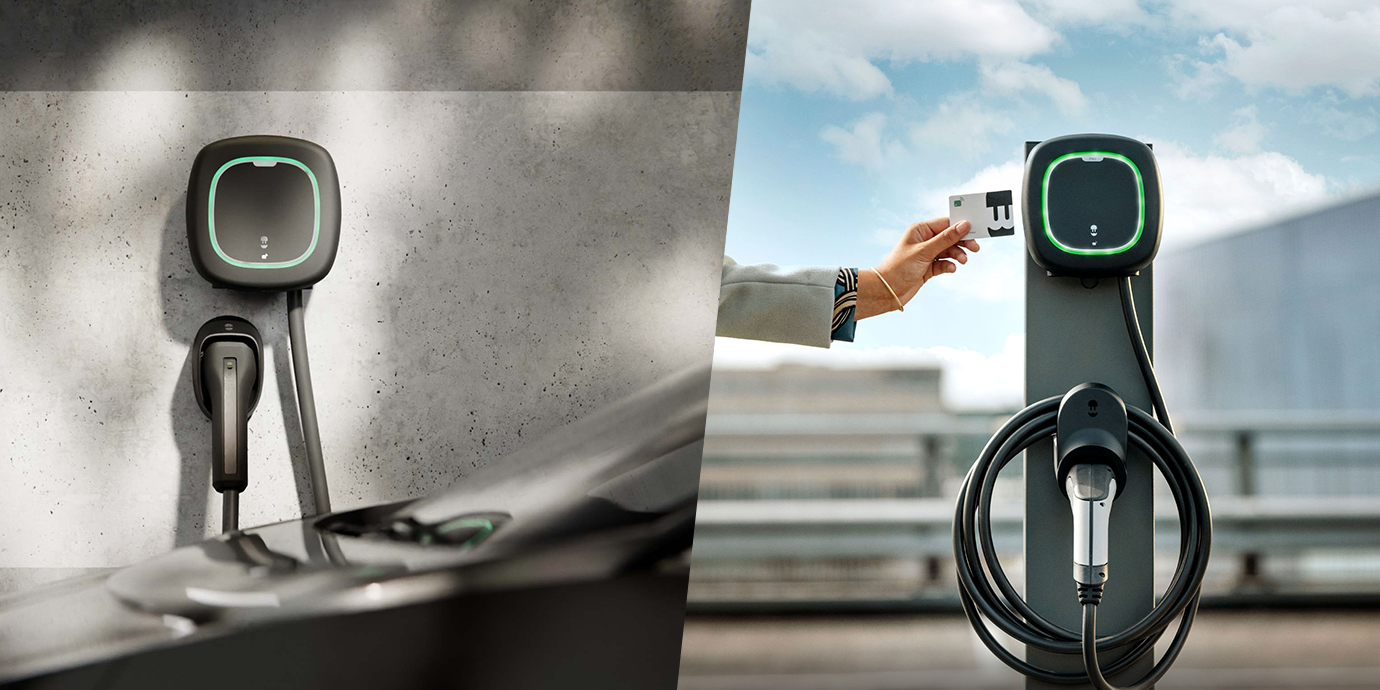

Easy Installation
Wallbox can be easily installed on wall or standing-pole with it back-plate design.

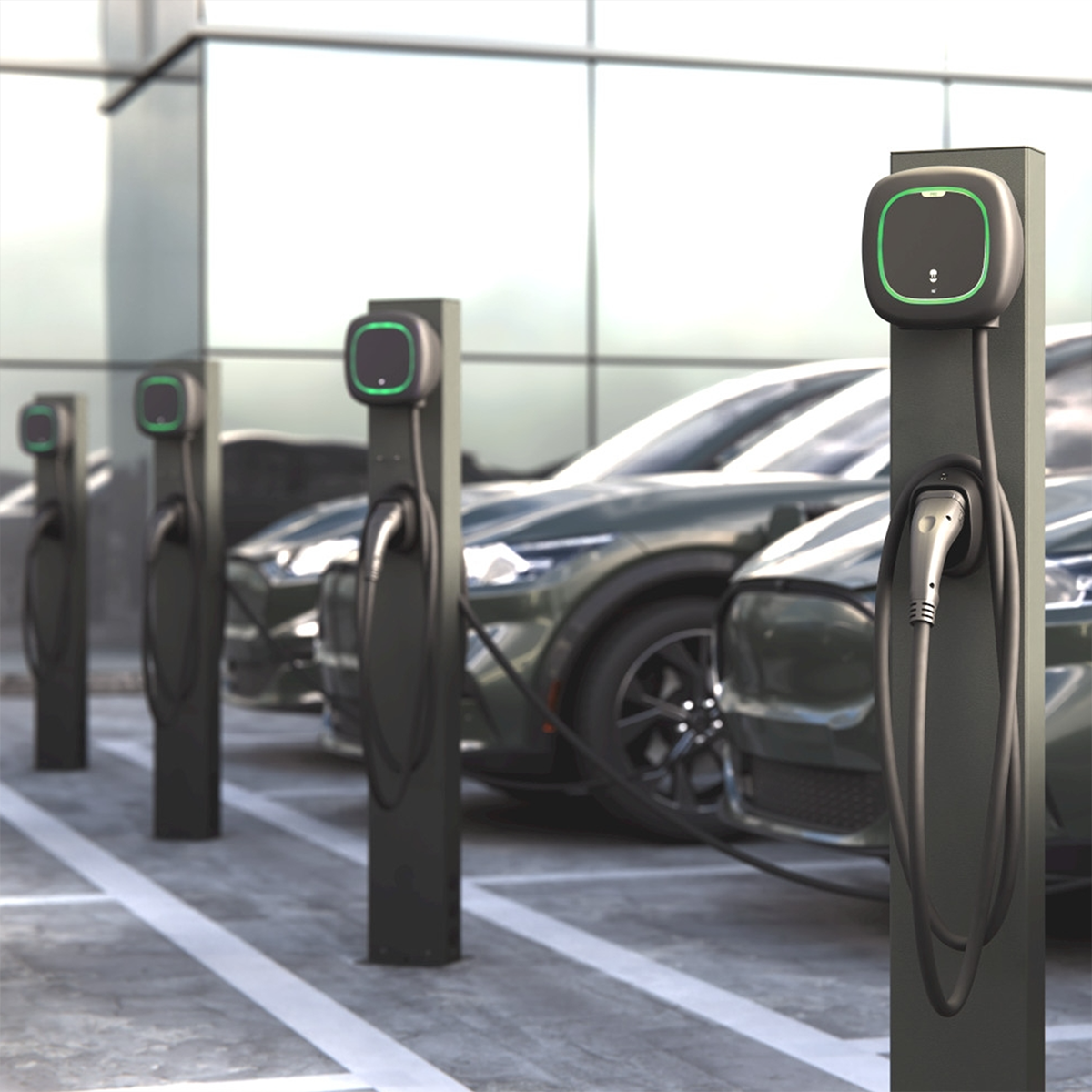

Standing Pole Installation

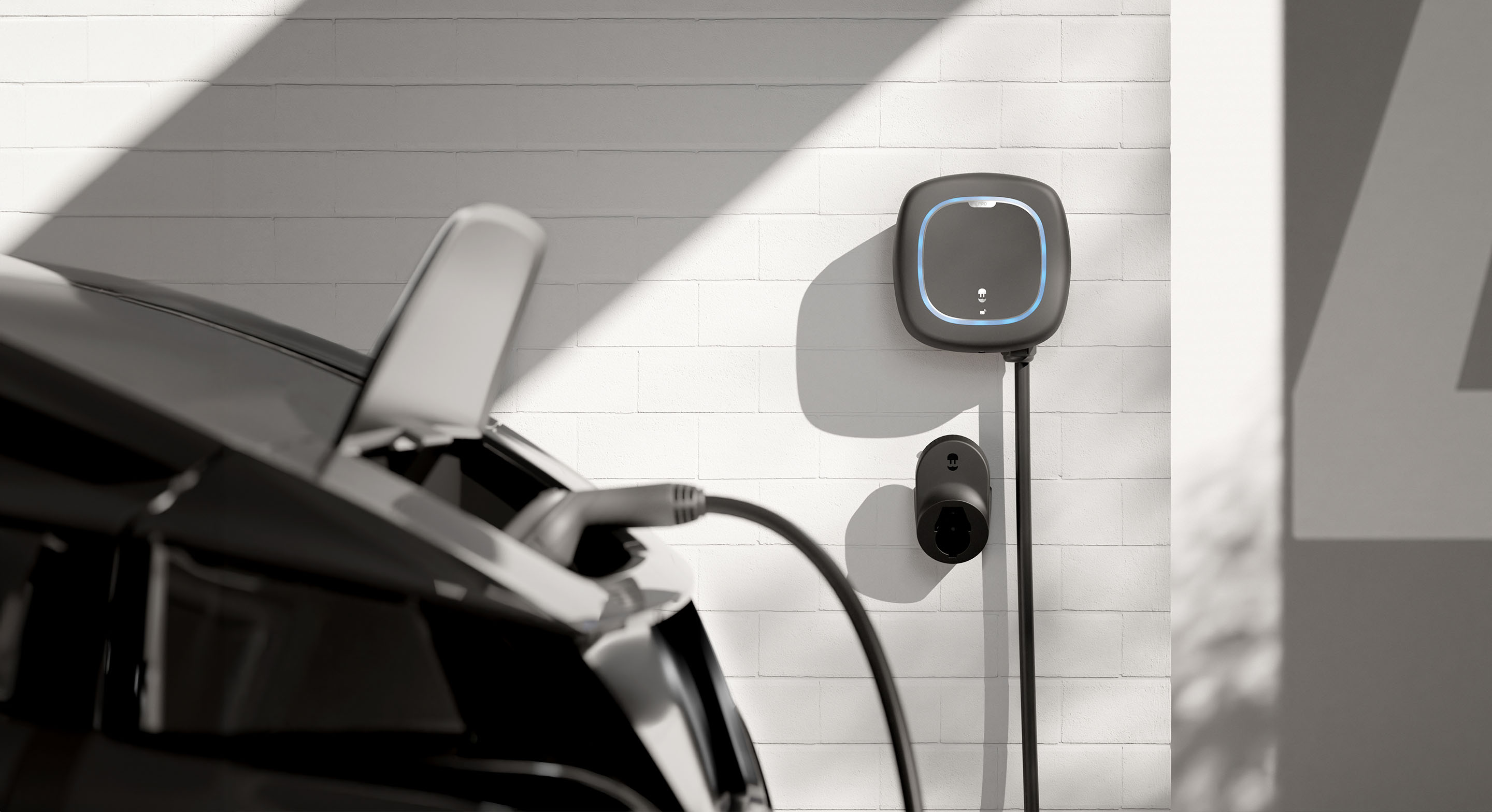

Wall Mounted Installation
Durability
Works in extreme condition.
IP55
Ingress Protection
IK10
Enclosure Hardness
-25°C - 50°C
Operating Temperature
Compatibility
Adapt to all Electric Vehicles in Hong Kong.

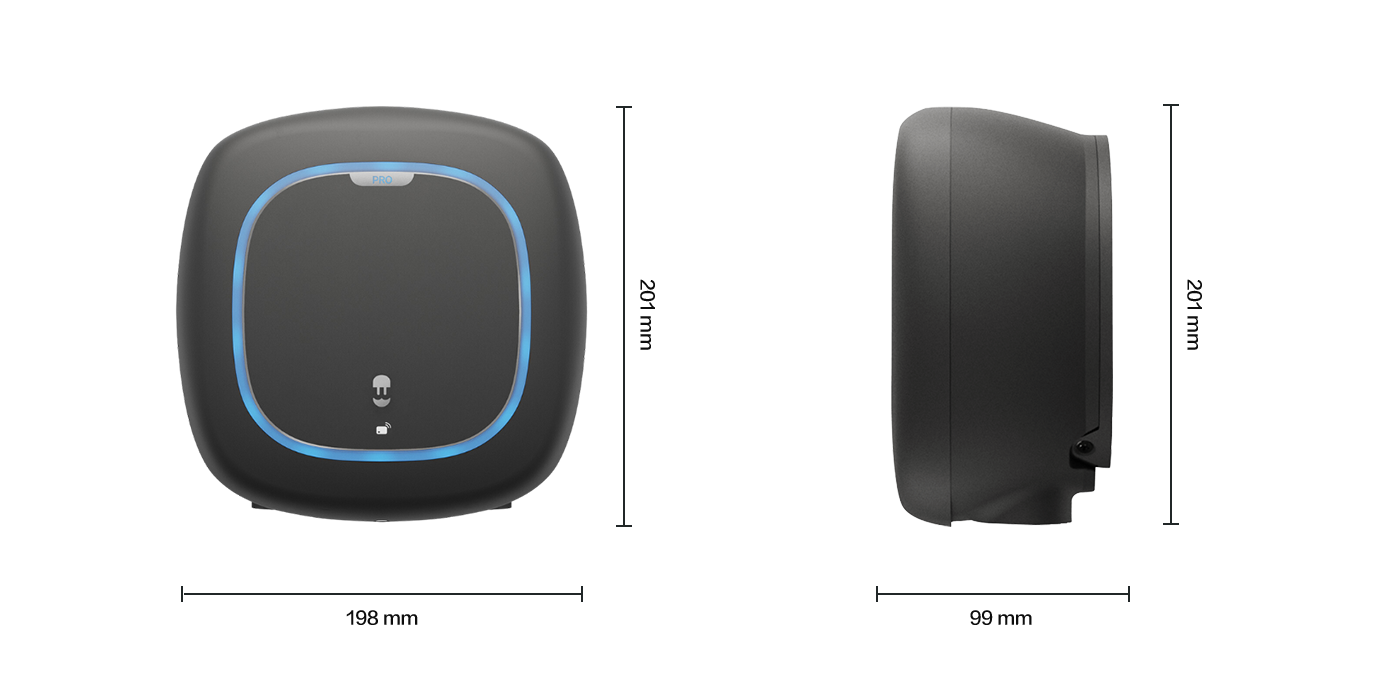

Dimension
Sleek and Compact Design
General specification
Wallbox Pulsar Pro
4G, Wi-Fi, Bluetooth
Halo RGB LED, myWallbox App & Portal
myWallbox App & Portal
myWallbox App & Portal, RFID
Mode 3
Type 1 / Type 2
Black / Grey
5m (7m Optional)
198 x 201 x 99 mm
1.3 kg (Without cable)
IP55, IK10
-30 ºC to 50 ºC
-40 ºC to 70 ºC
CE, UKCA, EAC and RCM
Mark.
IEC 61851-1, IEC 61851-21-2,
IEC 62196, BS 7671,IEC 60364.
RED Directive 2014/53/
EU and RoHS Directive
2011/65/EU
Electrical specification
7kW (1P) / 22kW (3P)
230V (1P) / 400V (3P)
6A to 32A
50 Hz / 60 Hz
Up to 13mm²
AC 30mA, DC 6mA
CAT III
Class A equivalent (Error ≤ 2%).
Factory calibrated.
Optional external shunt
(welding shut down)
