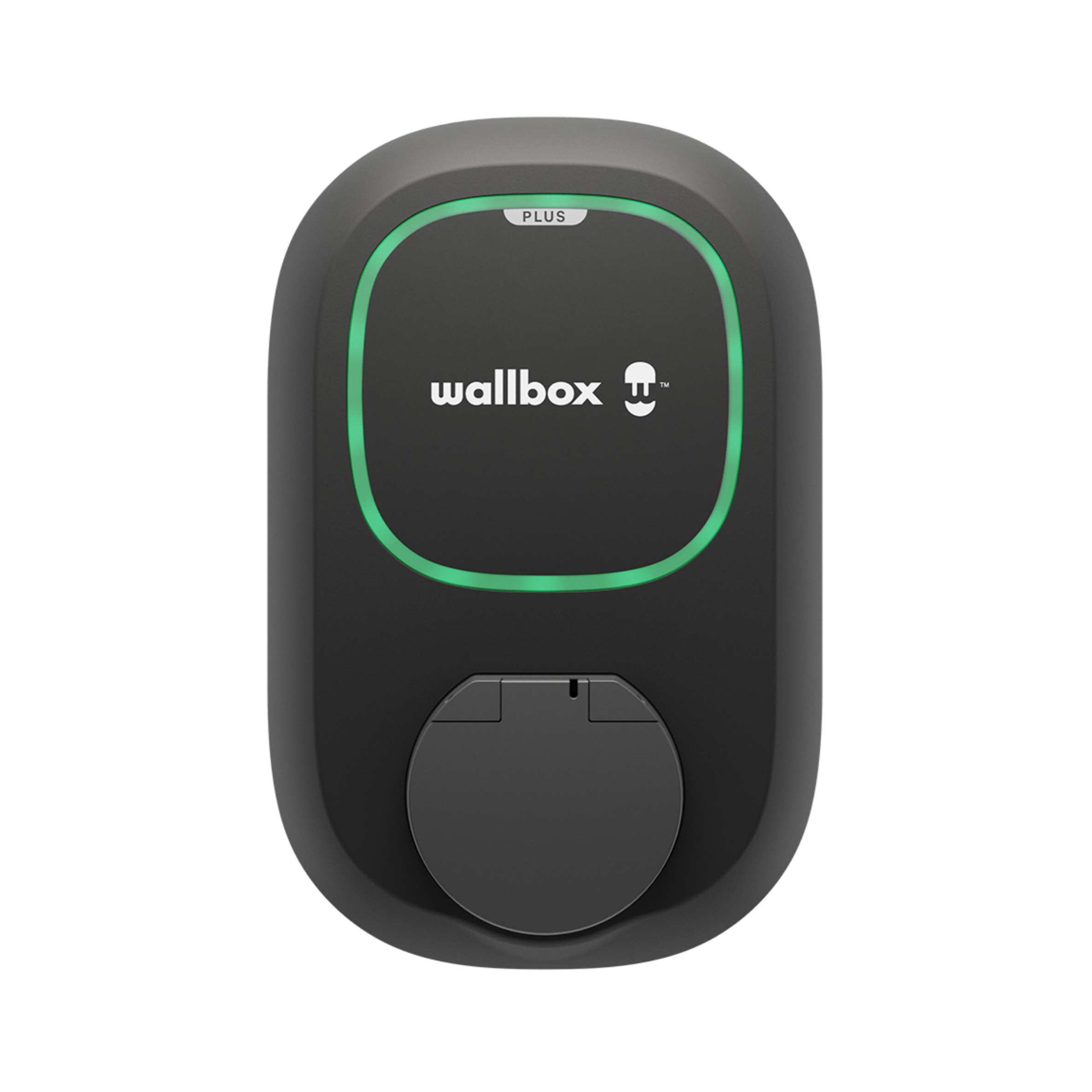

wallbox Pulsar Plus Socket
Powerful is just the beginning
Pulsar Plus Socket is a practical, intelligent charging system for electric vehicles and plug-in hybrids, which connects to the Wallbox app using Wi-Fi or Bluetooth. Pulsar Plus Socket features a built-in socket with shutter protection, as well as a higher protection rating and a new easy-install design.
- Charge fast, charging power up to 22kW
- myWallbox App Support
- IP55 / IK10 Protection Rating
- Wall mounted or standing pole installation
- Built in DC 6mA Residual Current Detection

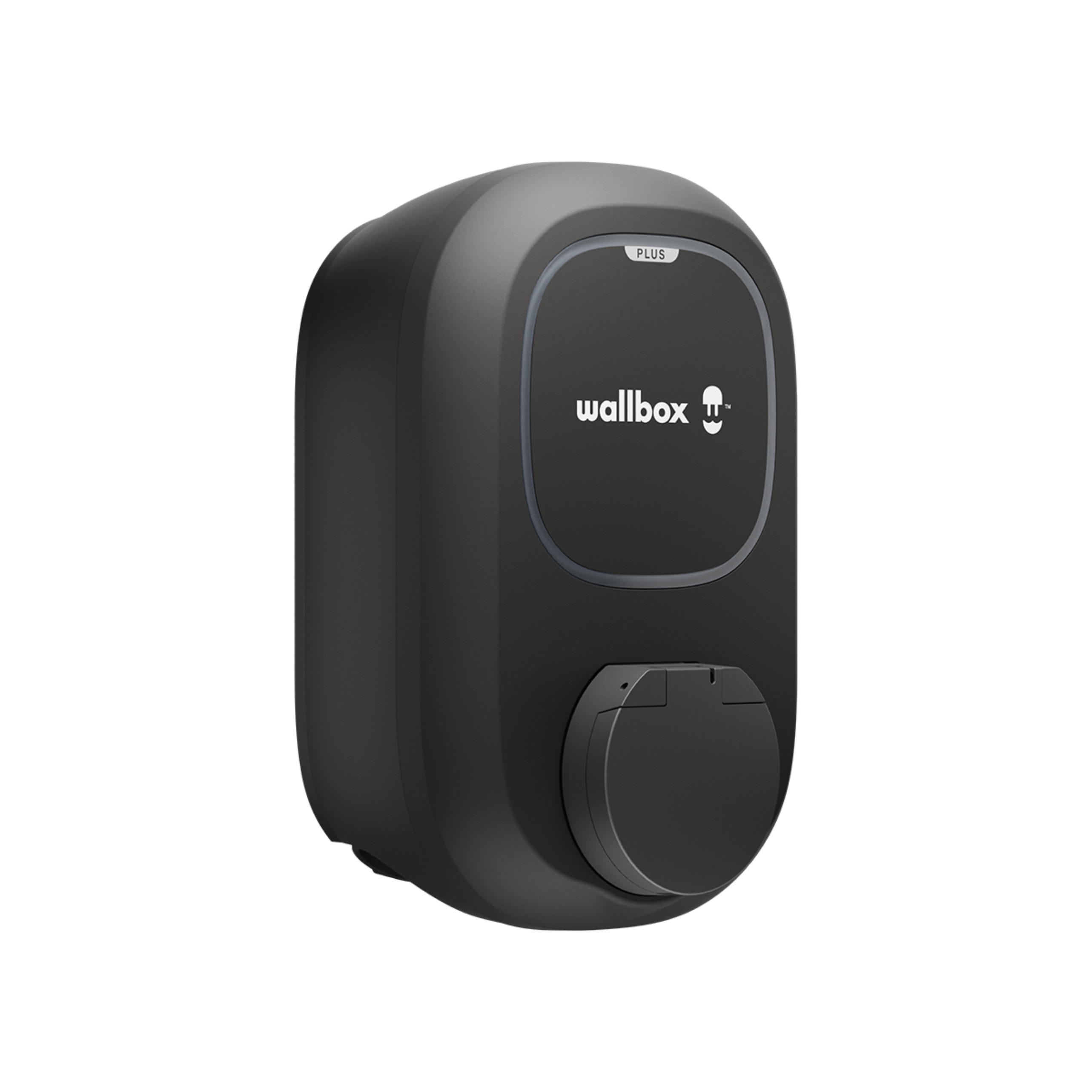

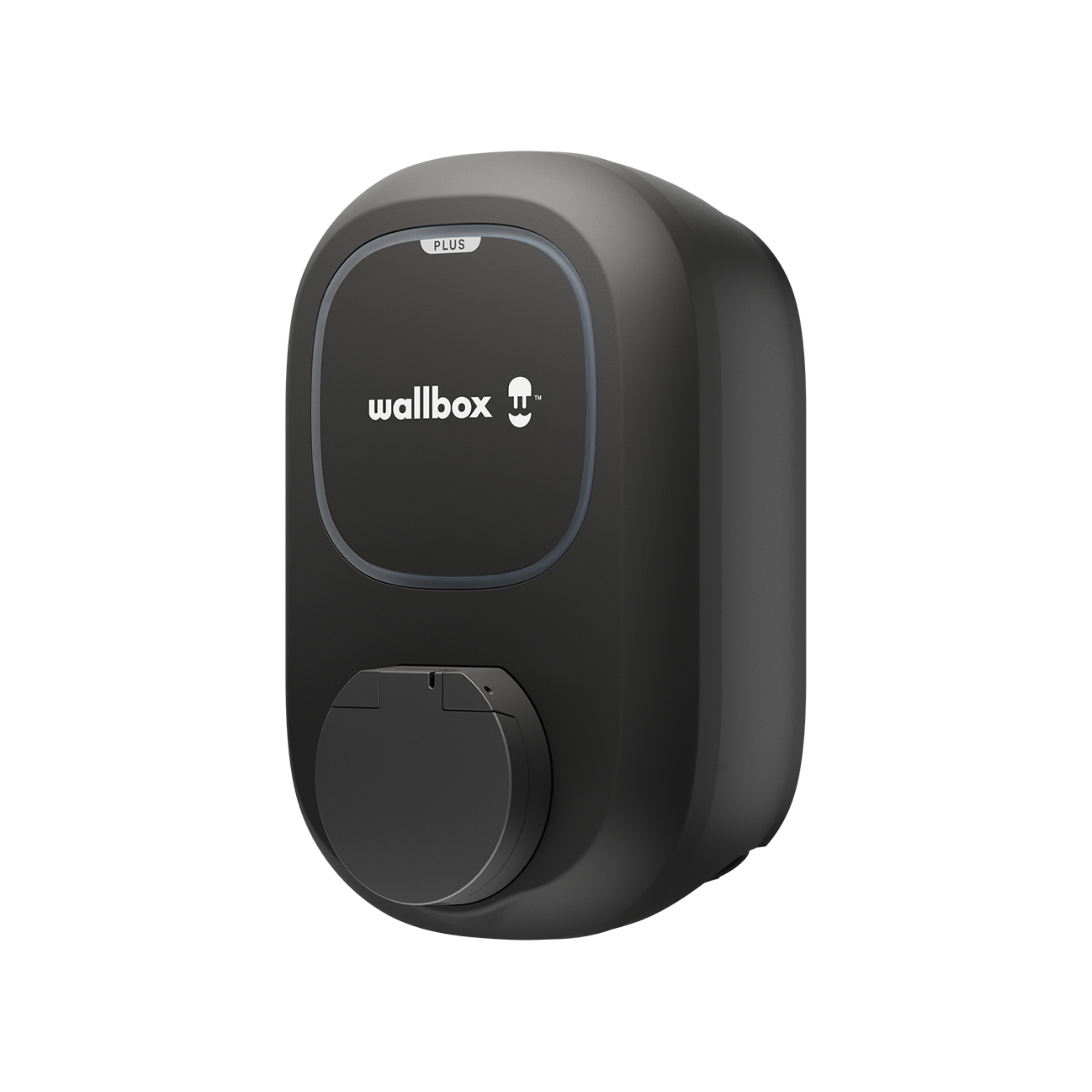

Wallbox Pulsar Plus Socket
All you need to charge smart and go far.
Connector Type
Wallbox Pulsar Plus - Socket version, comes with the Type 2 socket which covers all EV models in Hong Kong.

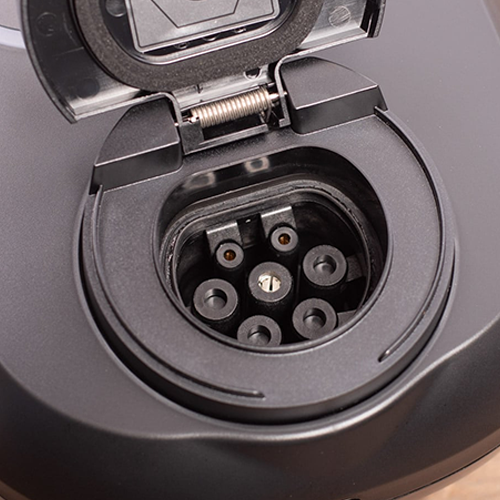

Type 2 Socket
Compatible with local electric vehicle charging specifications

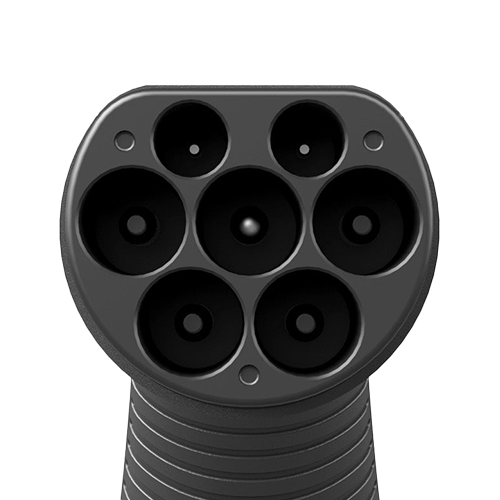

Type 2 Connector
Pulsar Plus Socket version supports Type 2 connector

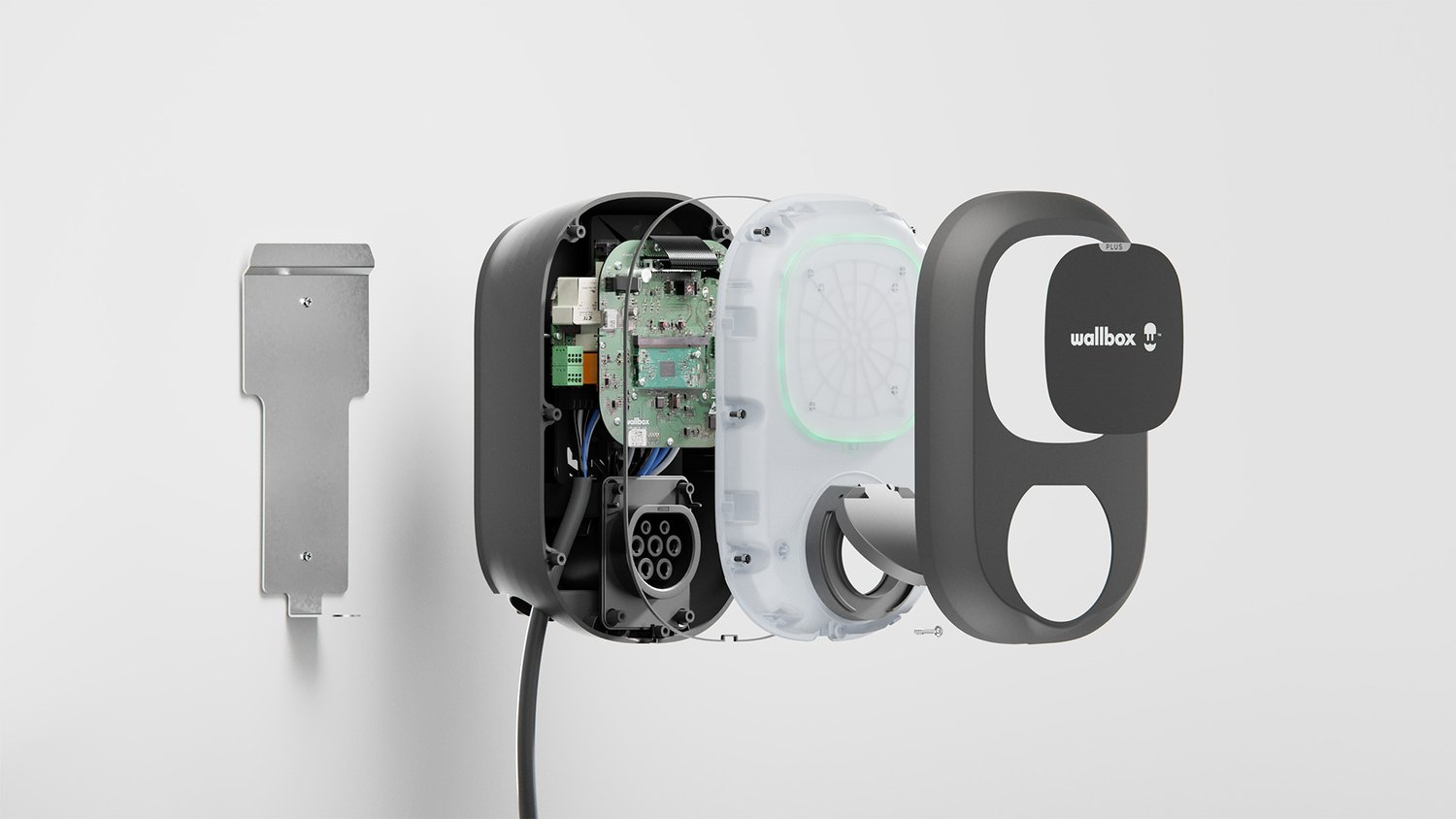

Easy Installation
Pulsar Plus socket can be easily installed on wall or standing-pole with it back-plate design.

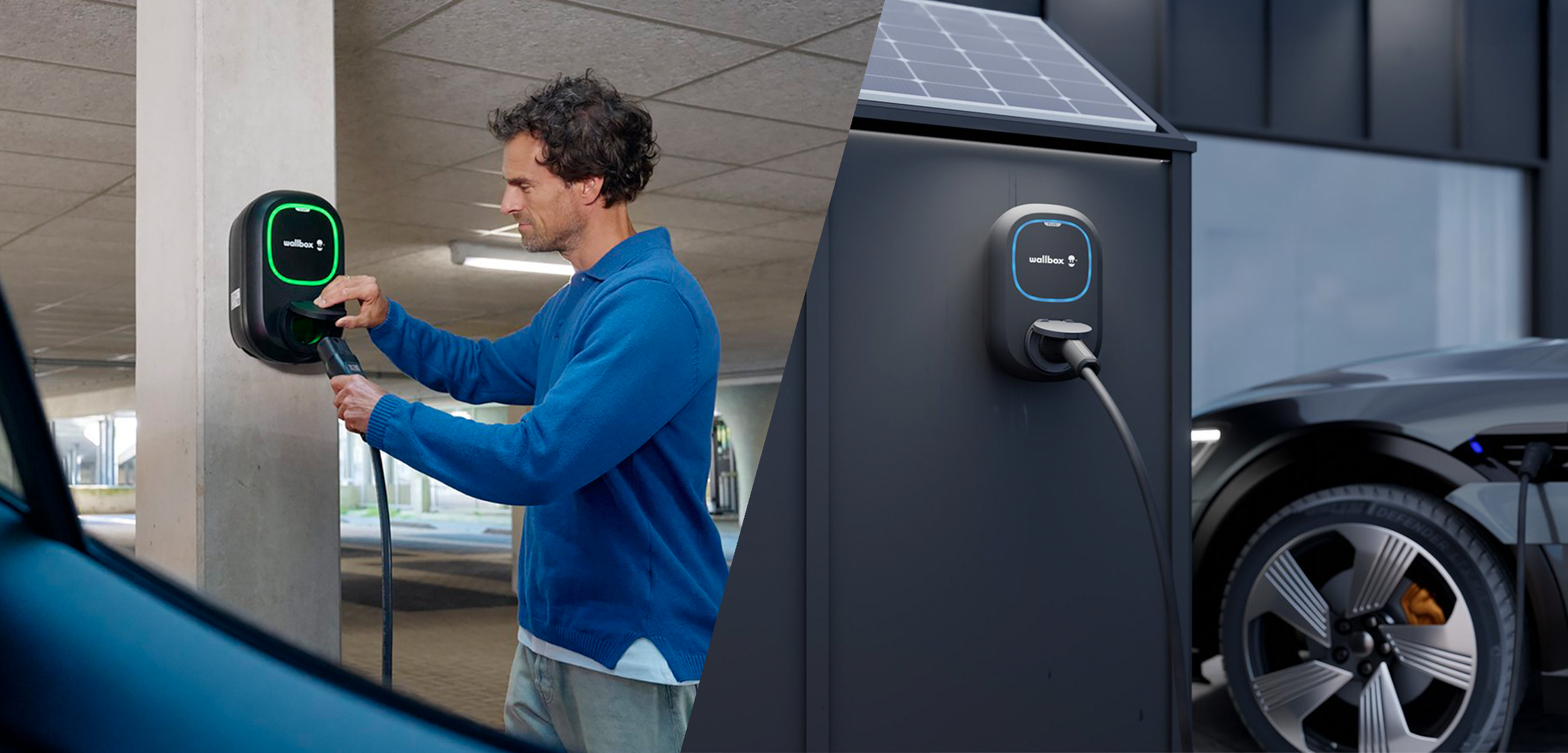

Standing Pole Installation

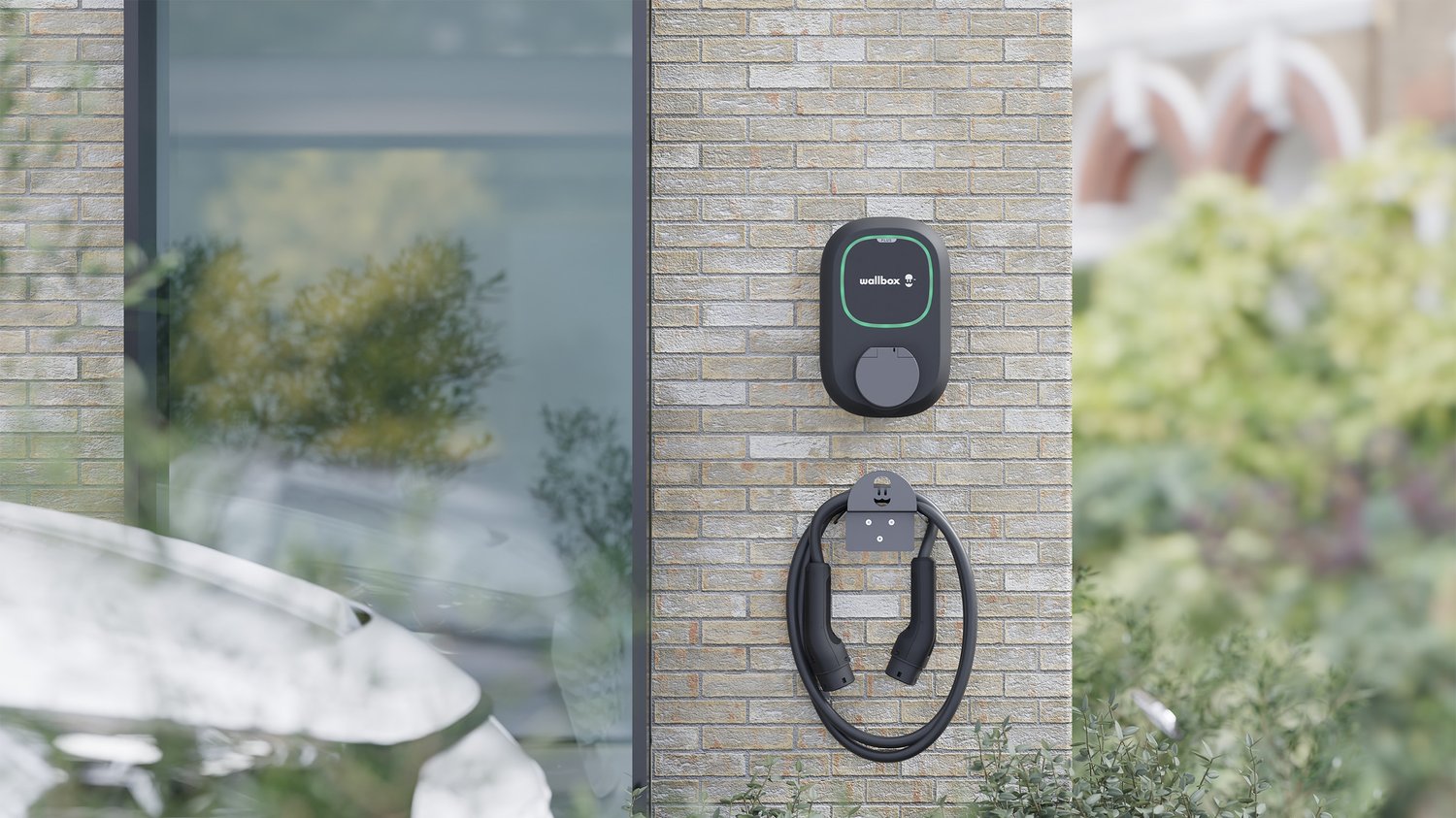

Wall Mounted Installation
Durability
Works in extreme condition.
IP55
Ingress Protection
IK10
Enclosure Hardness
-30°C - 50°C
Operating Temperature
Compatibility
Adapt to all Electric Vehicles in Hong Kong.

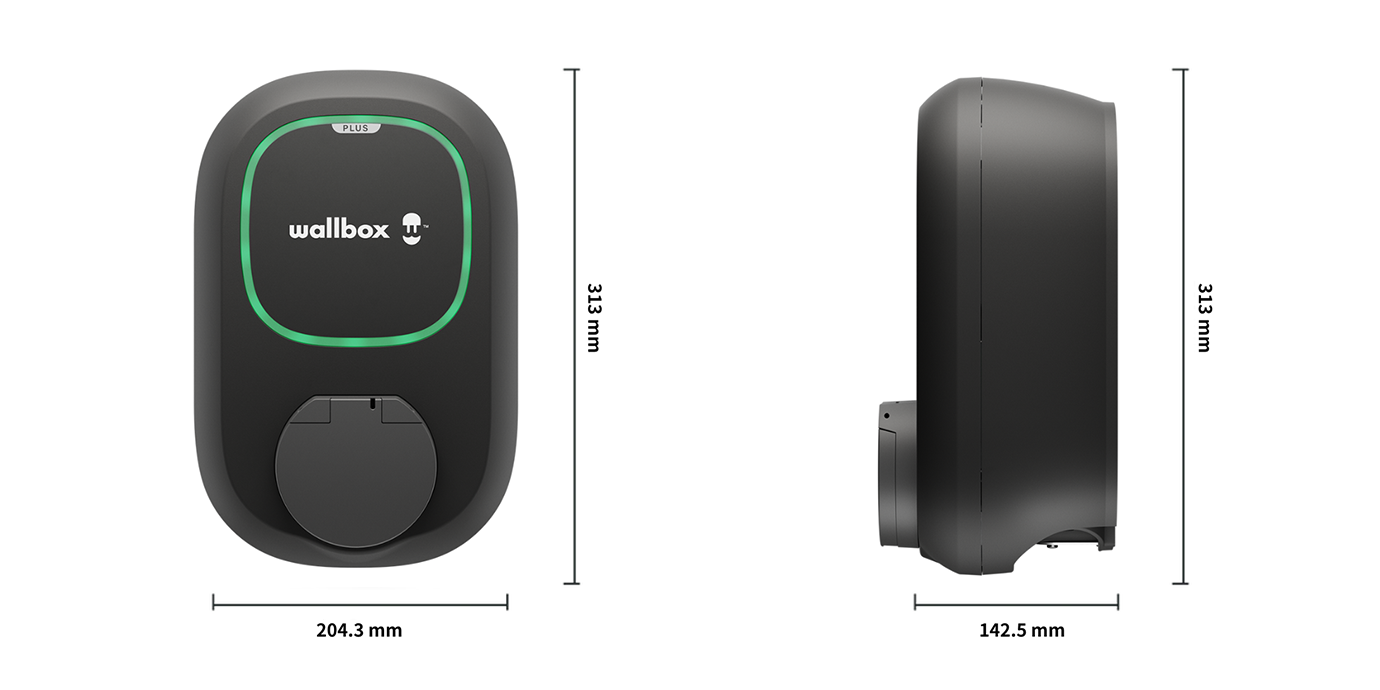

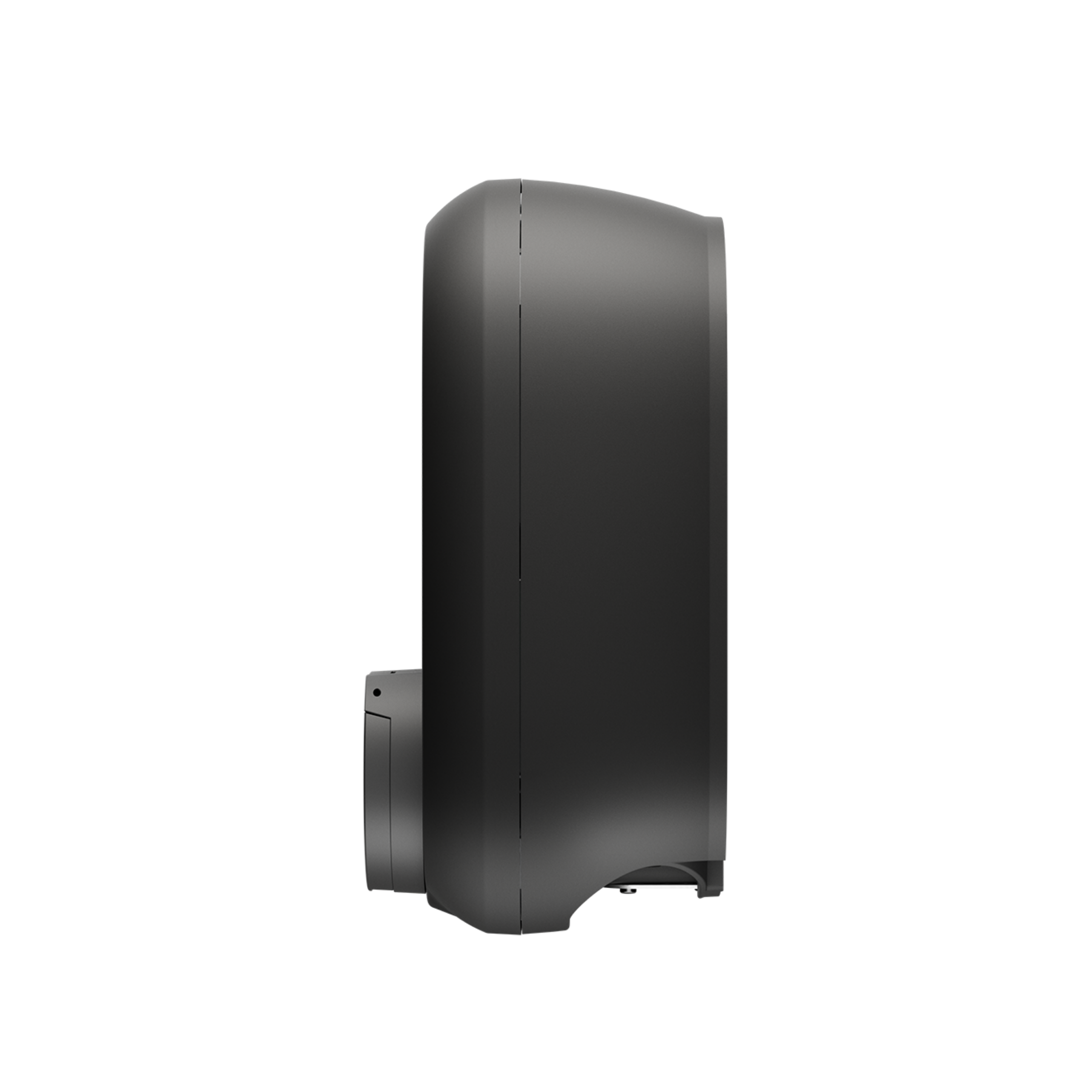

Dimension
Sleek and Compact Design
General specification
Wallbox Pulsar Plus Socket
myWallbox App & Portal
myWallbox App & Portal
Mode 3
Socket Version - Type 2
Black
313 x 204.3 x 142.5 mm
2.5kg
IP55 / IK10
-30 ºC to 50 ºC
-40 ºC to 70 ºC
IEC 61851-1, IEC 62196-2, RED Directive
2014/53/EU, RoHS Directive 2011/65
Electrical specification
7kW (1P) / 22kW (3P)
230V (1P) / 380-400V (3P)
6A to 32A
50 Hz / 60 Hz
AC 30mA, DC 6mA
CAT III
