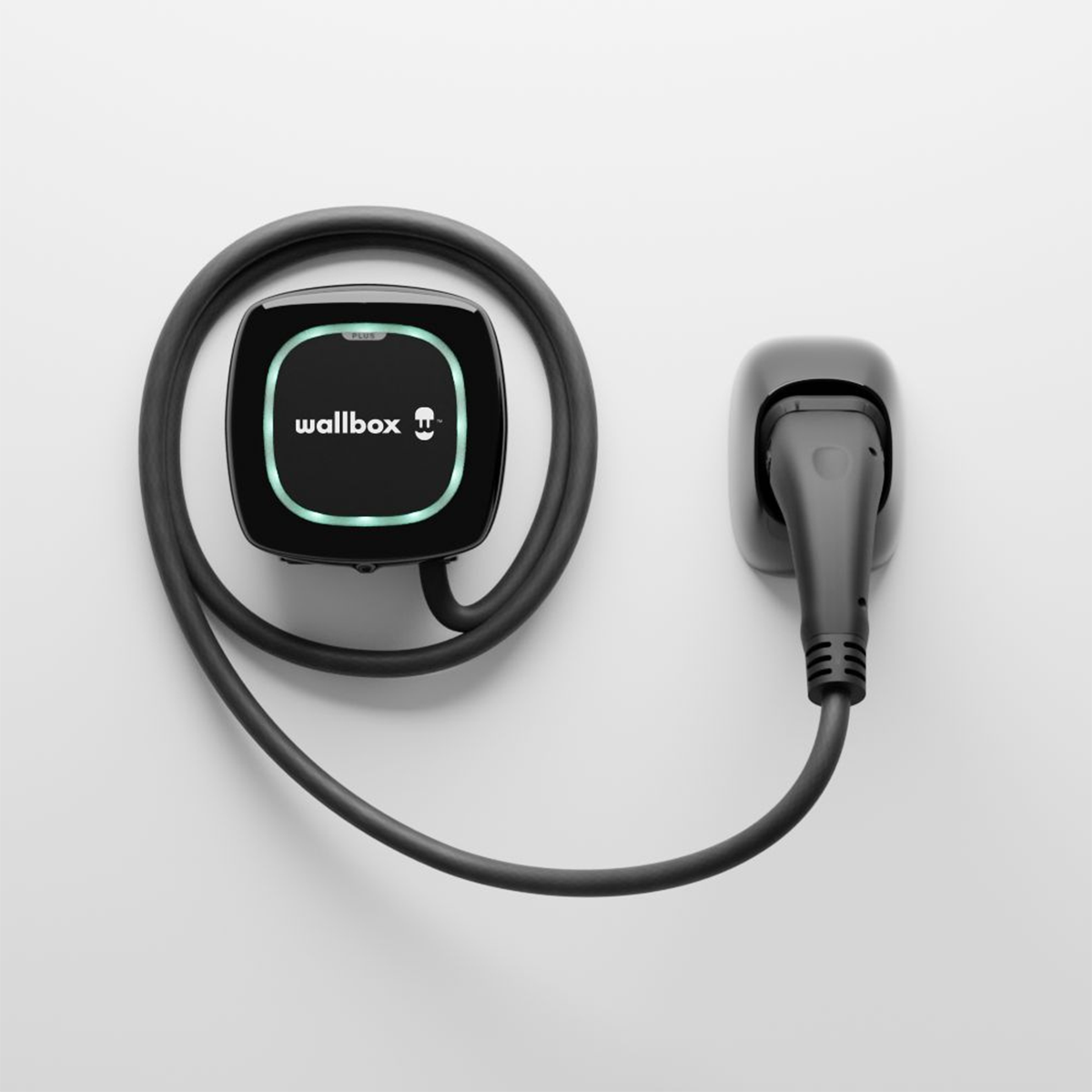

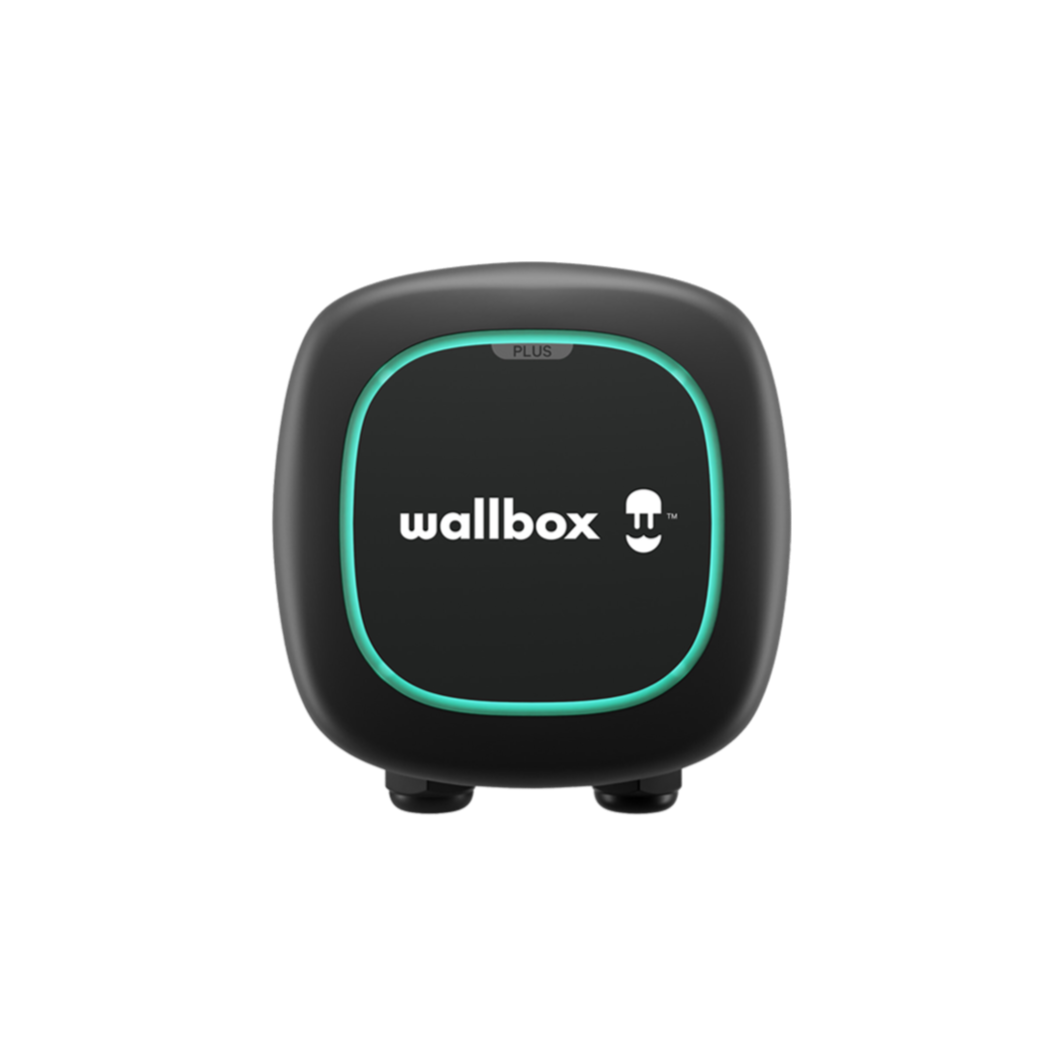

wallbox Pulsar Plus
Powerful is just the beginning
Fast and packed with next-generation charging intelligence, the compact Pulsar Plus is designed for beginners and pros alike. Simple charging meets advanced capabilities so you can enjoy going electric.
- Charge fast, charging power up to 22kW
- Connectivity and authentication options for any location or number of users.
- myWallbox App & Portal
- IP54 / IK08 Protection Rating
- Wall mounted or standing pole installation
- Built in DC 6mA Residual Current Detection
Wallbox Pulsar Plus
All you need to charge smart and go far.
Connector Type
Type 2 Connector Options cover all local EV models.
Type 1
J1772
Type 2
Mennekes

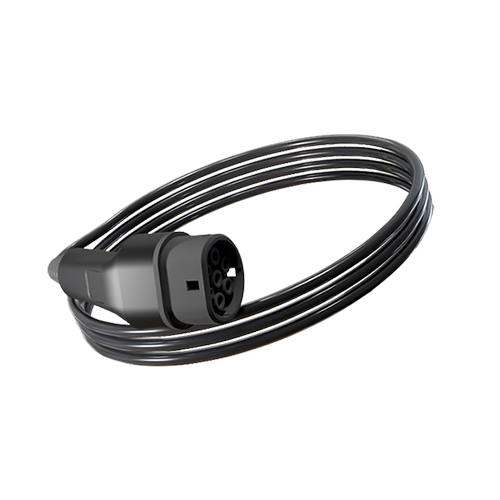

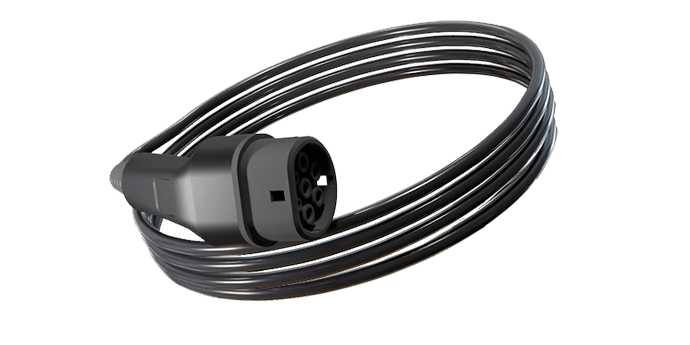

Connector Length
Pulsar Plus's charging connector comes with 5 meters long and there is alternative option with 7 meters by request.

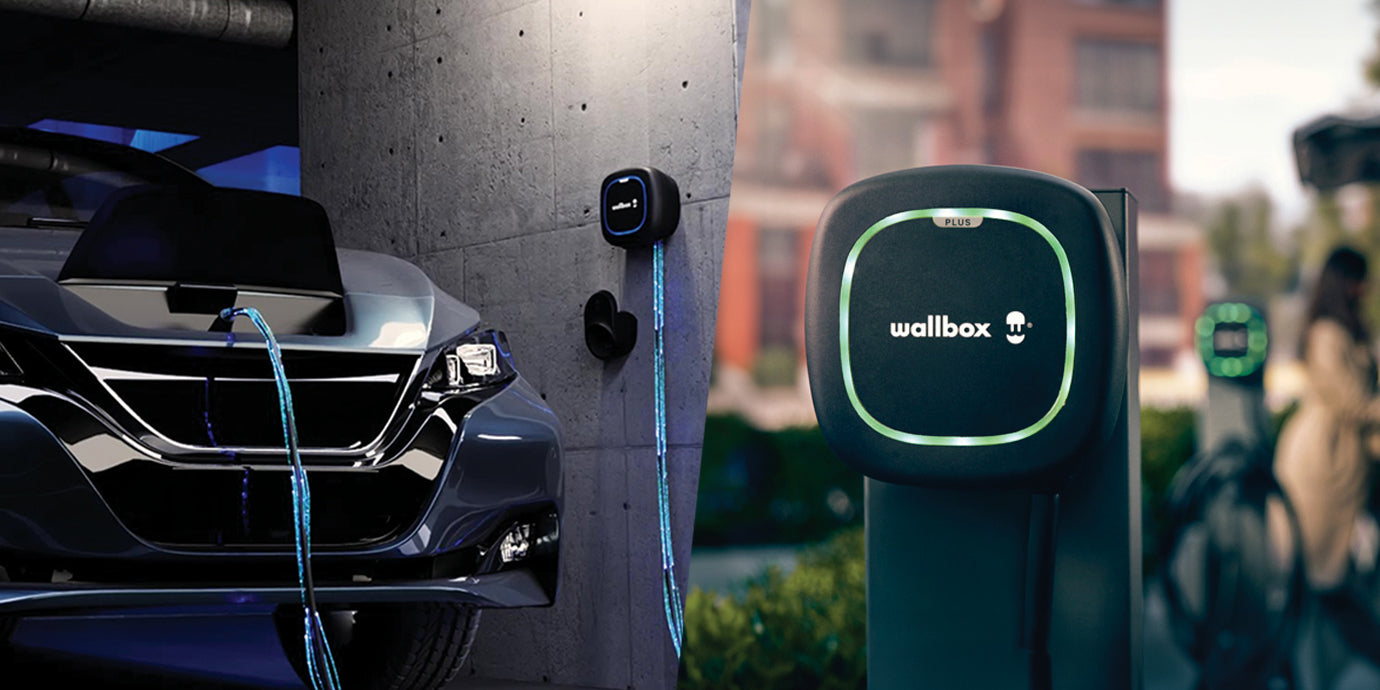

Easy Installation
Wallbox can be easily installed on wall or standing-pole with it back-plate design.
Standing Pole Installation

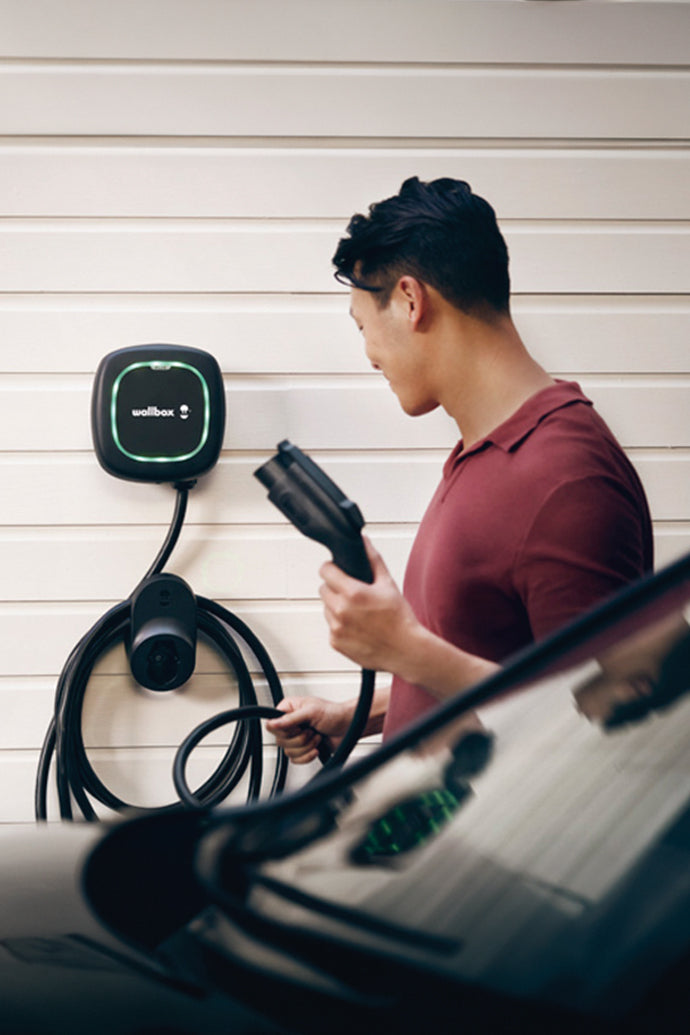

Wall Mounted Installation

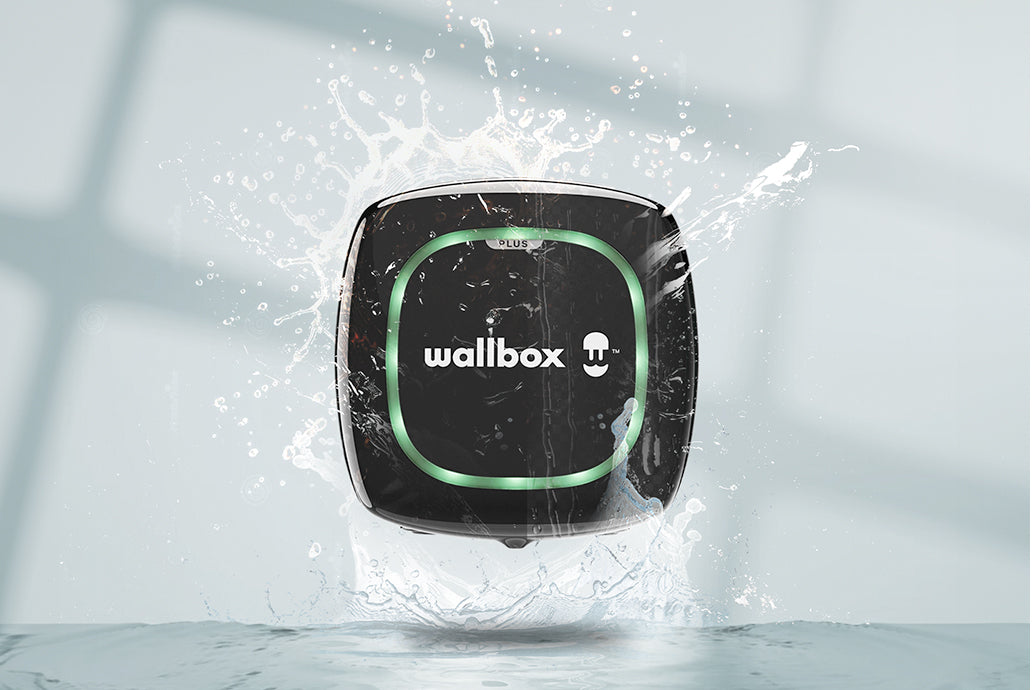

Durability
Works in extreme condition.
IP54
Ingress Protection
IK08
Enclosure Hardness
-25°C - 40°C
Operating Temperature
Compatibility
Adapt to all Electric Vehicles in Hong Kong.

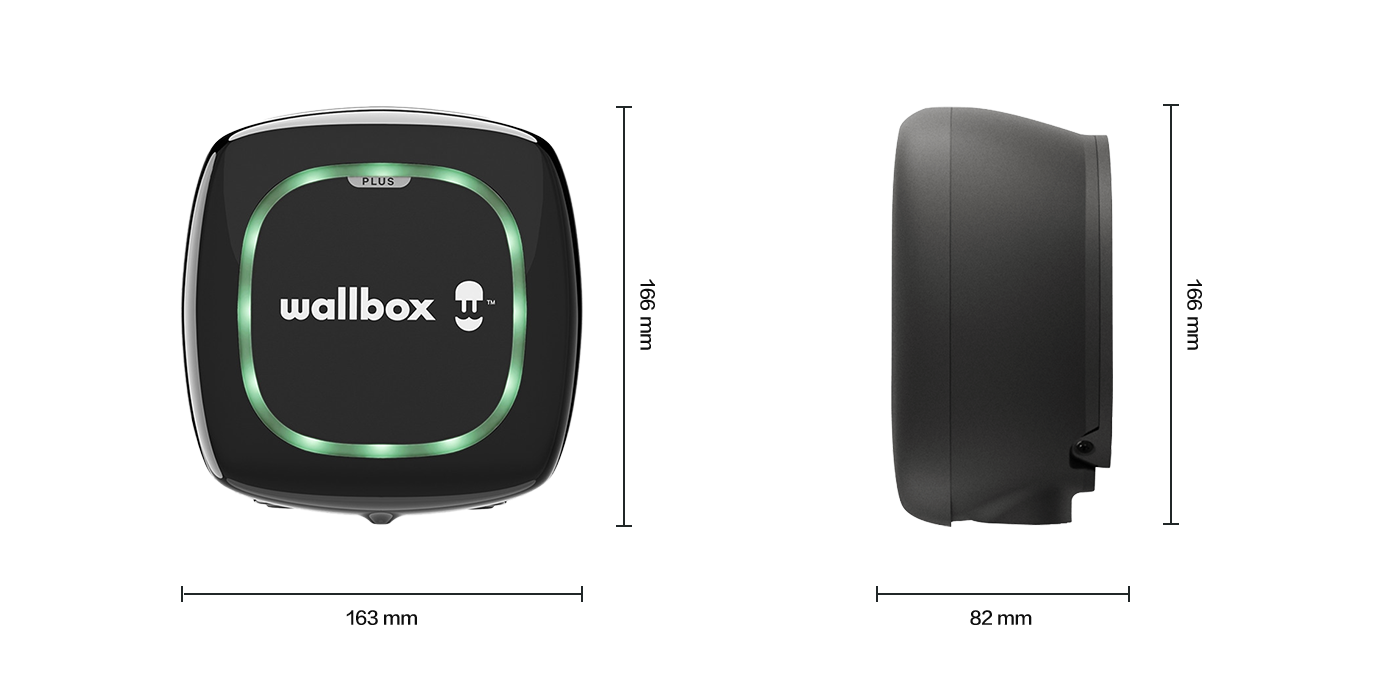

Dimension
Sleek and Compact Design
General specification
Wallbox Pulsar Plus
myWallbox App & Portal
myWallbox App & Portal
Mode 3
Type 1 / Type 2

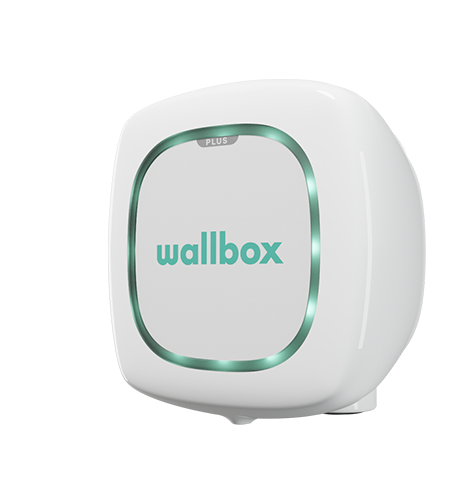

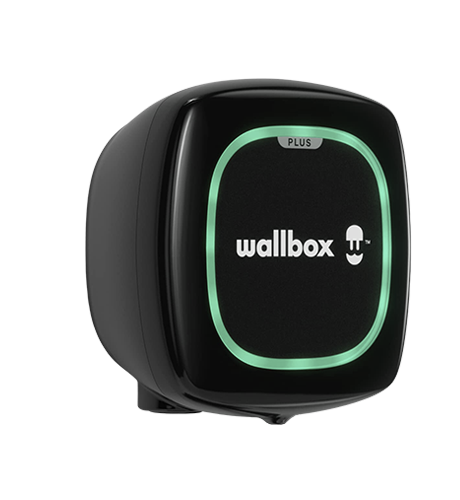

Black / White
5m (7m Optional)
166 x 163 x 82 mm
1 kg (Without cable)
IP54 / IK08
-25 ºC to 40 ºC (50 ºC with derating)
-40 ºC to 70 ºC
CE mark (LVD 2014/35/EU, EMCD 2014/30/EU)
IEC 61851-1, IEC 61851-21-2, IEC 62196-2, BS 7671:2018
Electrical specification
7kW (1P) / 22kW (3P)
230V (1P) / 400V (3P)
6A to 32A
50 Hz / 60 Hz
AC 30mA, DC 6mA
According to BS7671:2018 requirements
CAT III
