wallbox Pulsar Max
The best charging solution

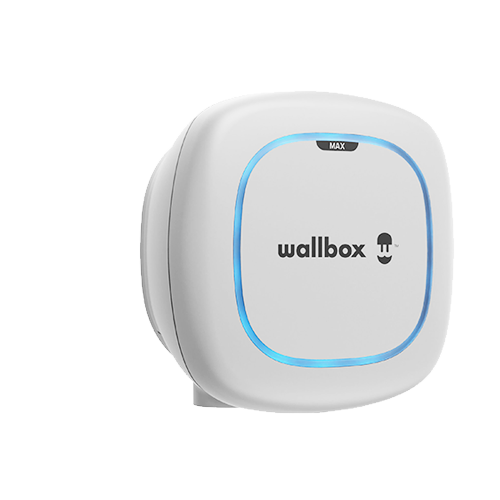

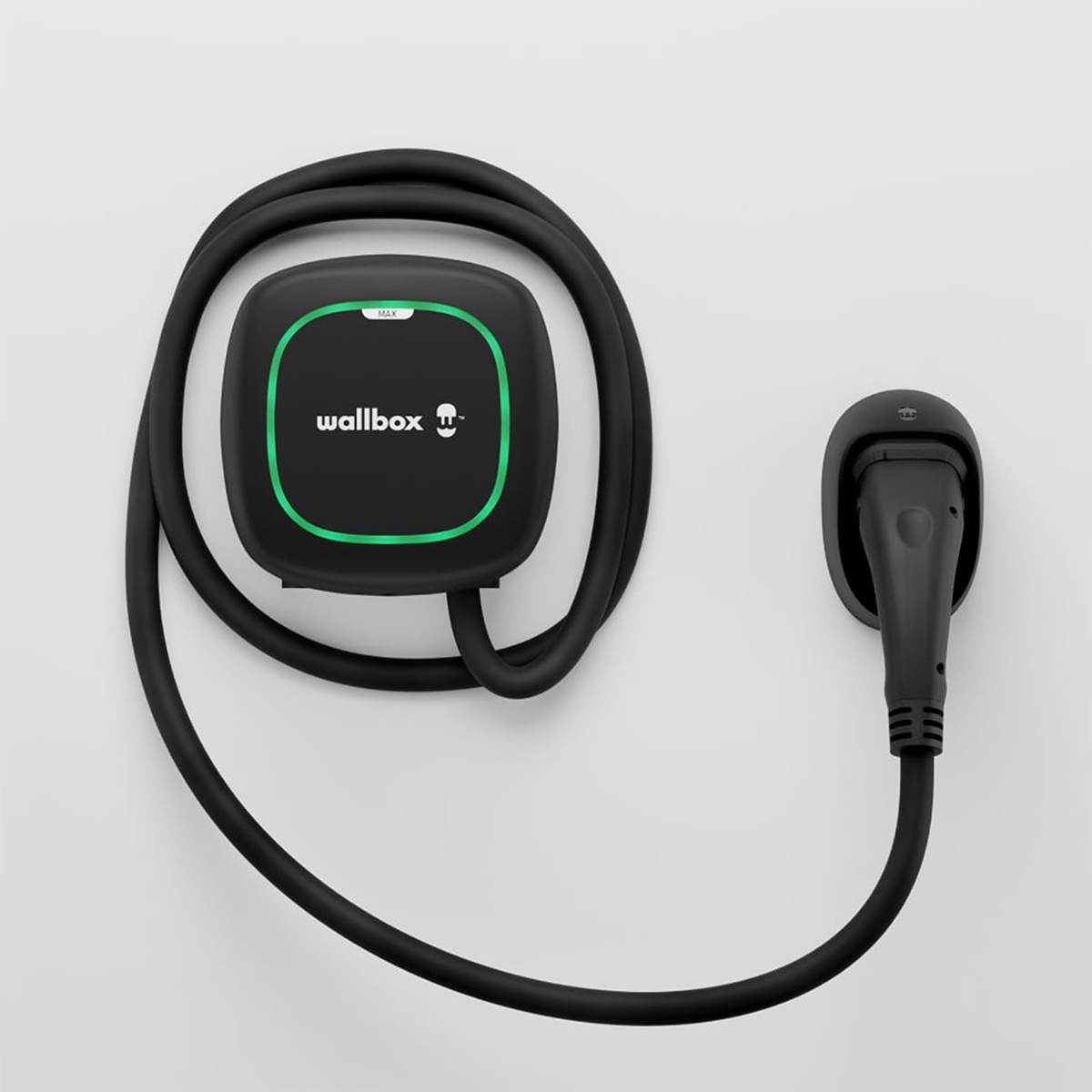

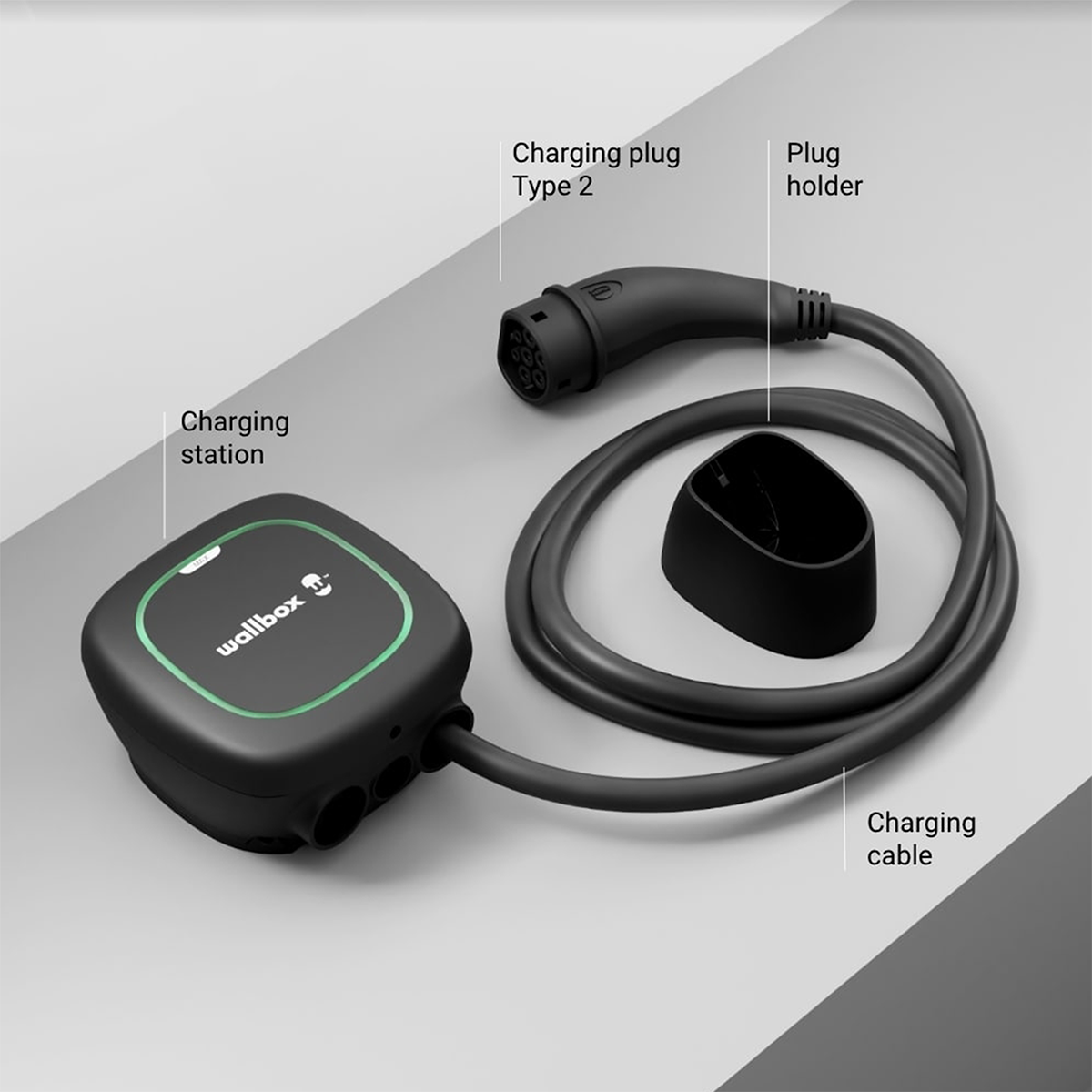

Wallbox Pulsar Max
Powerful is just the beginning.
Ready to charge?
Connector Type
Type 1 or Type 2 Connector Options cover all local EV models.
Type 1
J1772
Type 2
Mennekes
Connector Length
Wallbox Pulsar Max's charging connector comes with 5 meters long and there is another option with 7 meters by request.
Easy Installation
Wallbox can be easily installed on wall or standing-pole with it back-plate design.

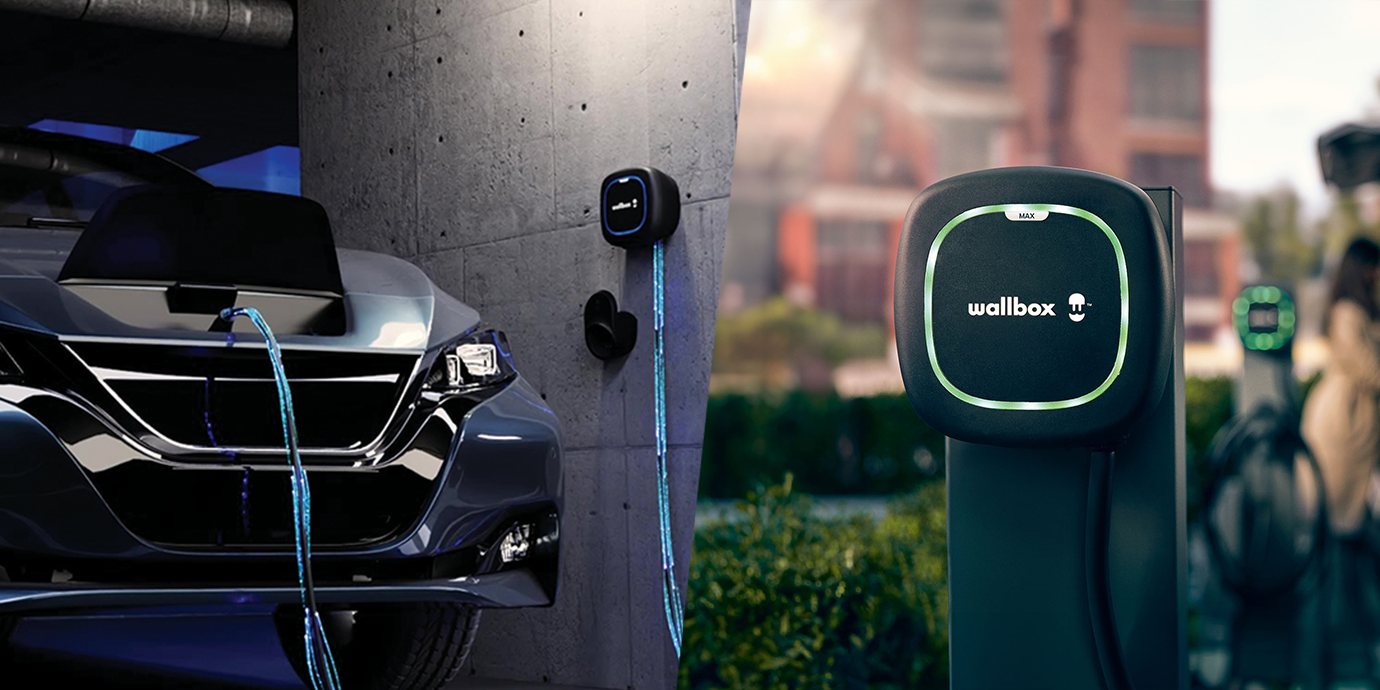

Standing Pole Installation

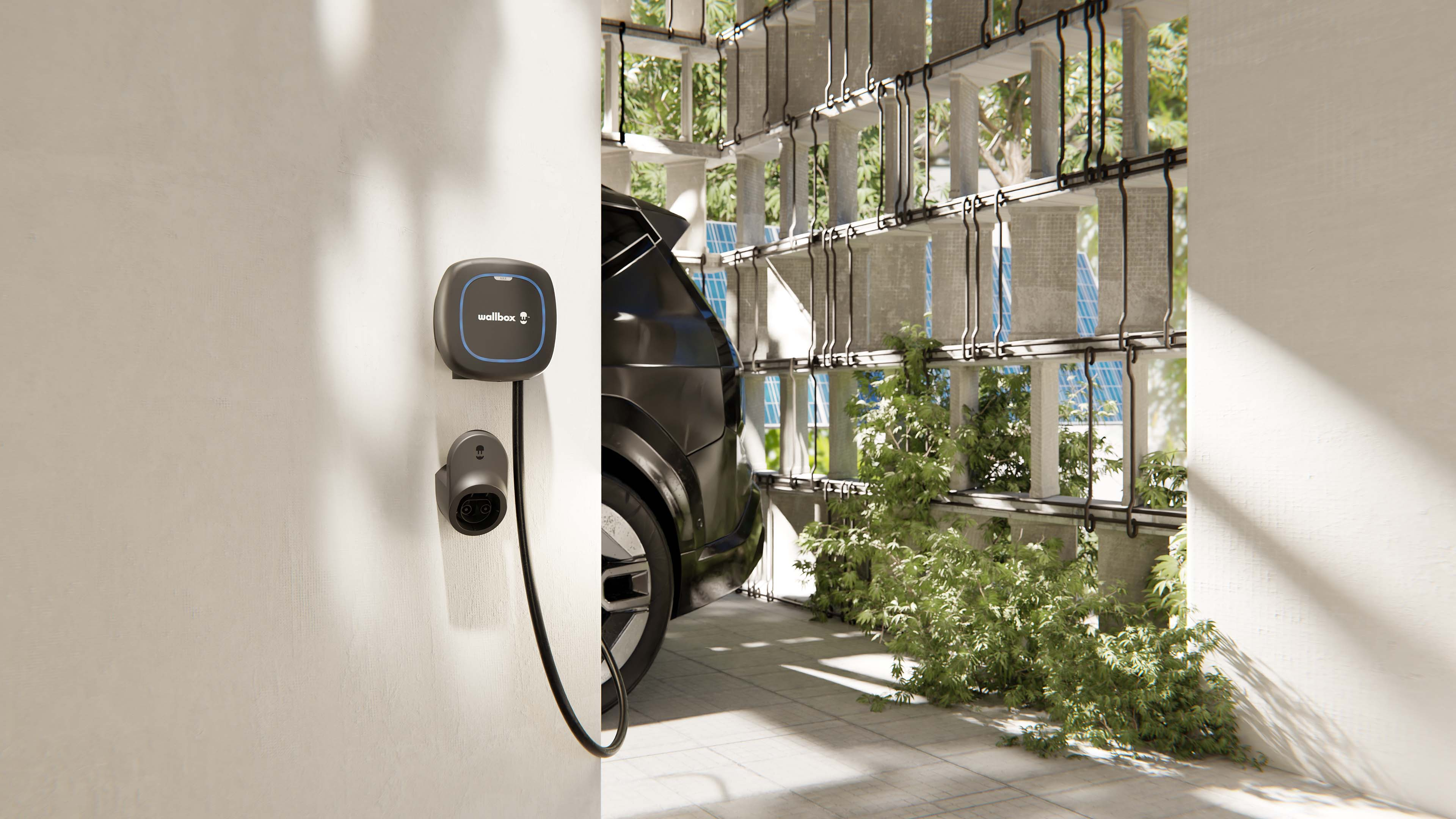

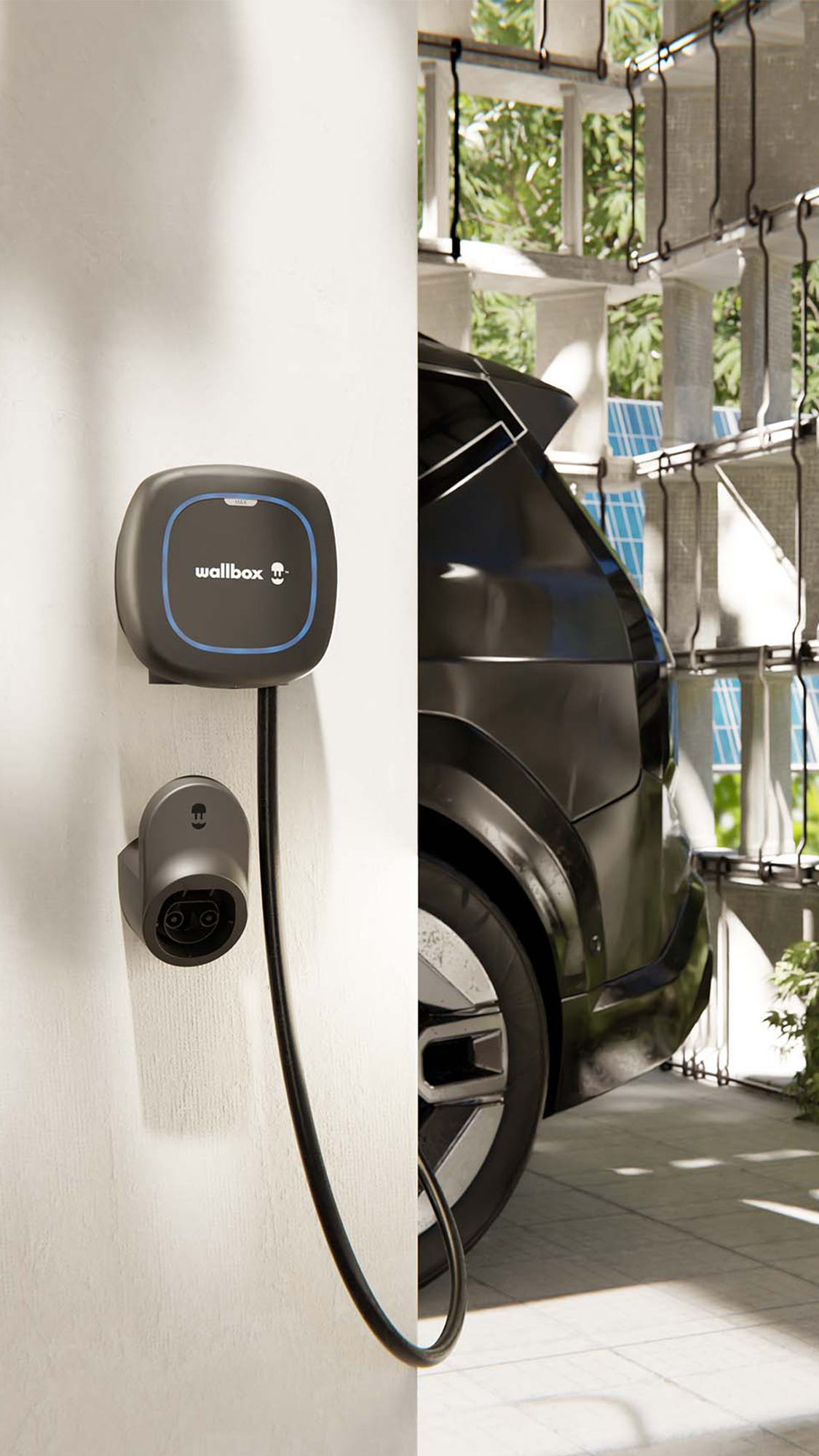

Wall Mounted Installation
Durability
Works in extreme condition.
IP55
Ingress Protection
IK10
Enclosure Hardness
-25°C - 50°C
Operating Temperature
Compatibility
Adapt to all Electric Vehicles in Hong Kong.

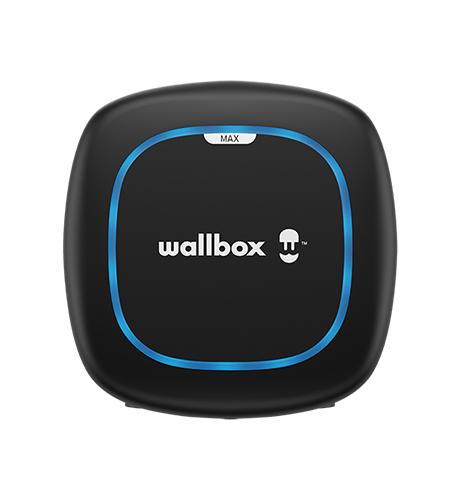

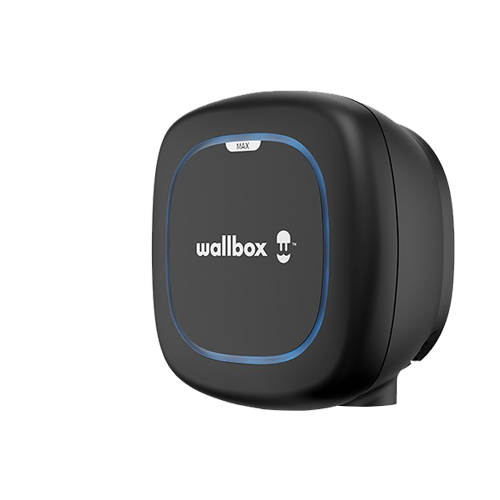

Dimension
Sleek and Compact Design
General specification
Wallbox Pulsar Max
myWallbox App & Portal
myWallbox App & Portal
Mode 3
Type 1 / Type 2
Black / White / Others
5m (7m Optional)
198 x 201 x 99 mm
1.3 kg (Without cable)
IP55, IK10
-25 ºC to 50 ºC
-40 ºC to 70 ºC
IEC 61851-1, IEC 61851-21-2, IEC 62196-2, LVD 2014/35/EU, CE mark, EMC Directive
2014/30/EU, ROHS Directive 2011/65, BS 7671:2018 + A1:2020 + A2:2022
Electrical specification
7kW (1P) / 22kW (3P)
220-240V (1P) / 380-400V (3P)
6A to 32A
50Hz / 60Hz
Up to 13mm²
AC 30mA, DC 6mA
CAT III
