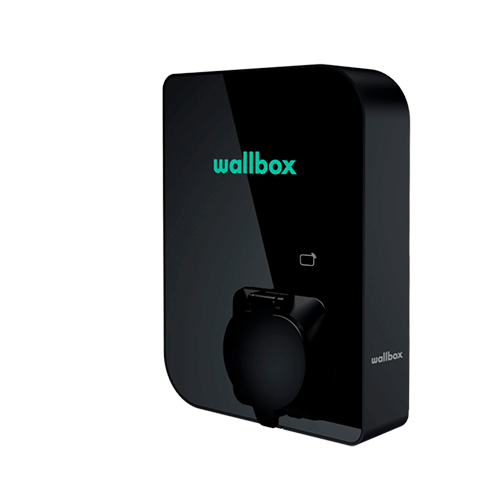

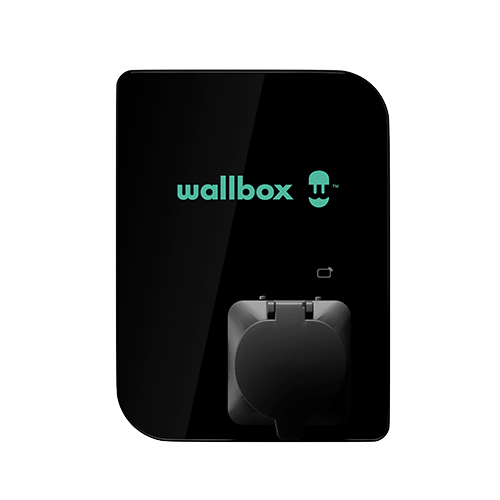

wallbox Copper SB
Durable and flexible EV charging
wallbox Copper SB is designed to provide versatility, reliability and elegance for businesses looking to electrify their commercial parking.
- Compact and Sleek design
- IP54 and IK10 protection ratings
- Easy indoor and outdoor installation
- Universal Socket Connector
- Compatible with single and three-phase power sources
- Adjustable load current between 6A and 32A
Wallbox Copper SB
Durable and flexible EV charging
Versatility, Reliability & Elegance

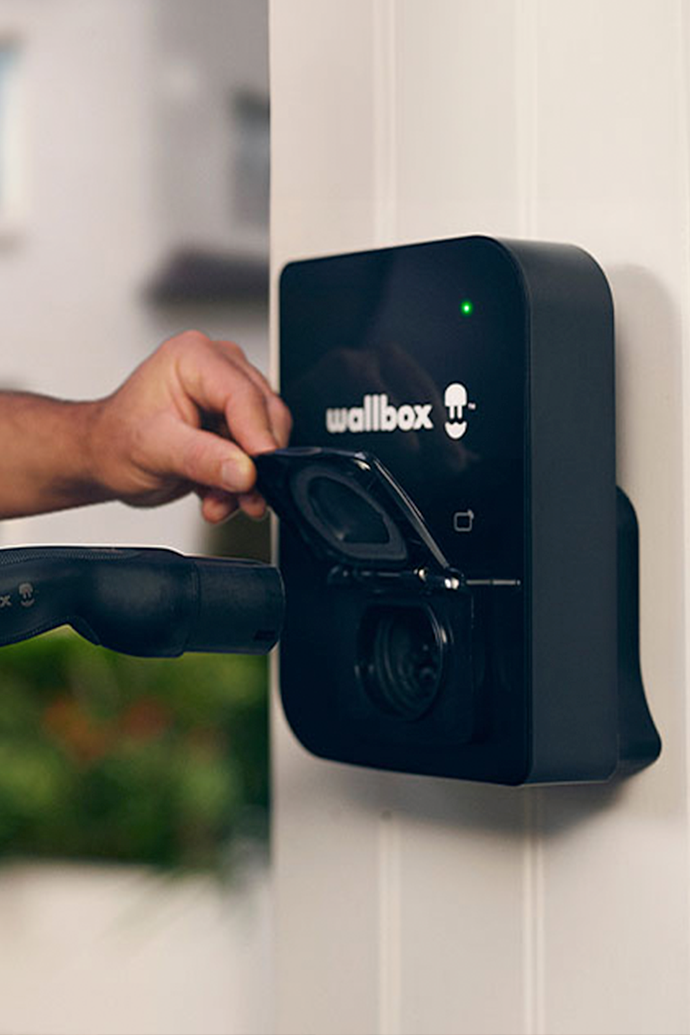

Connector Type

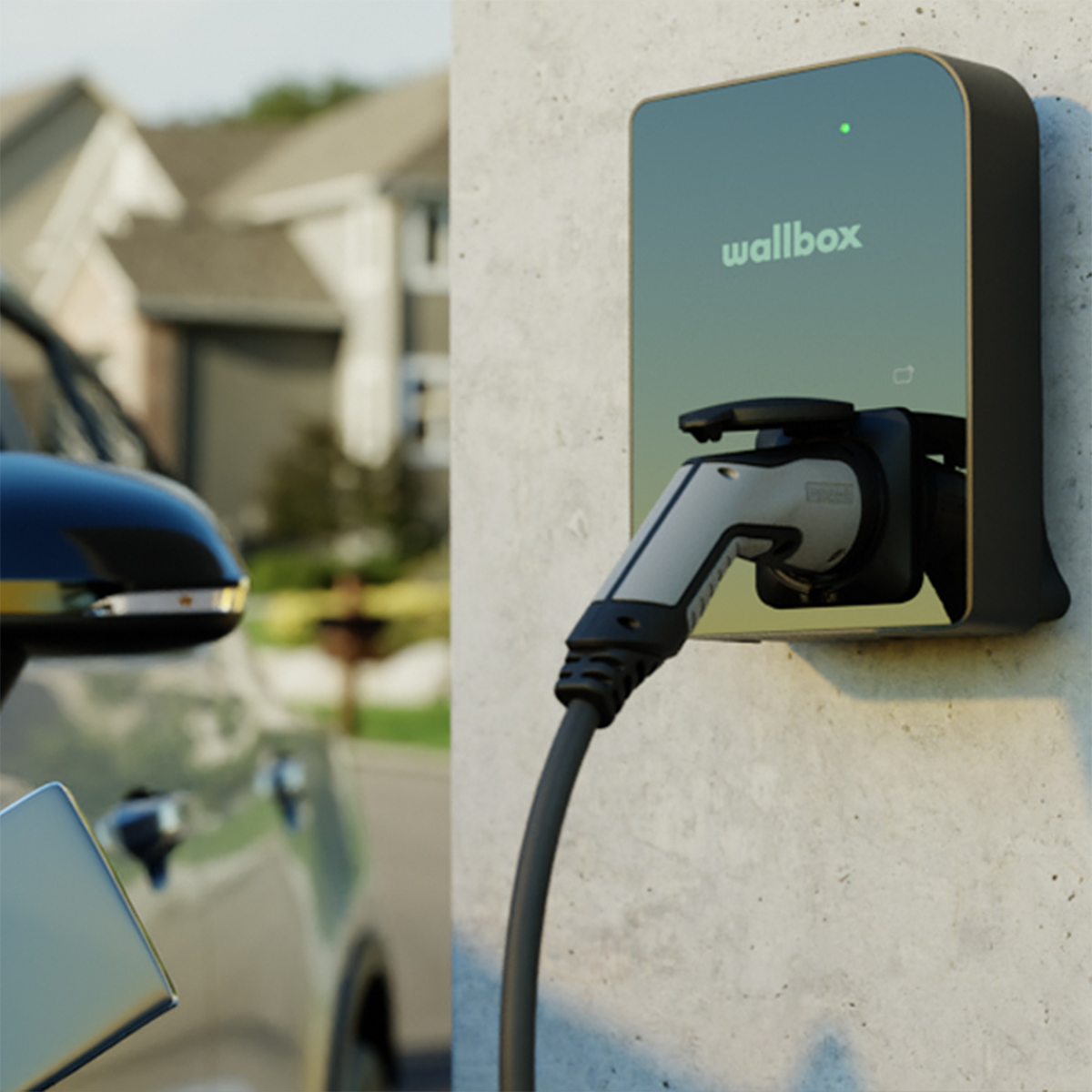

Its socket allows charging for any EV. The cable locking feature allows to alternate betweensocket and tethered chargerto suit every need.

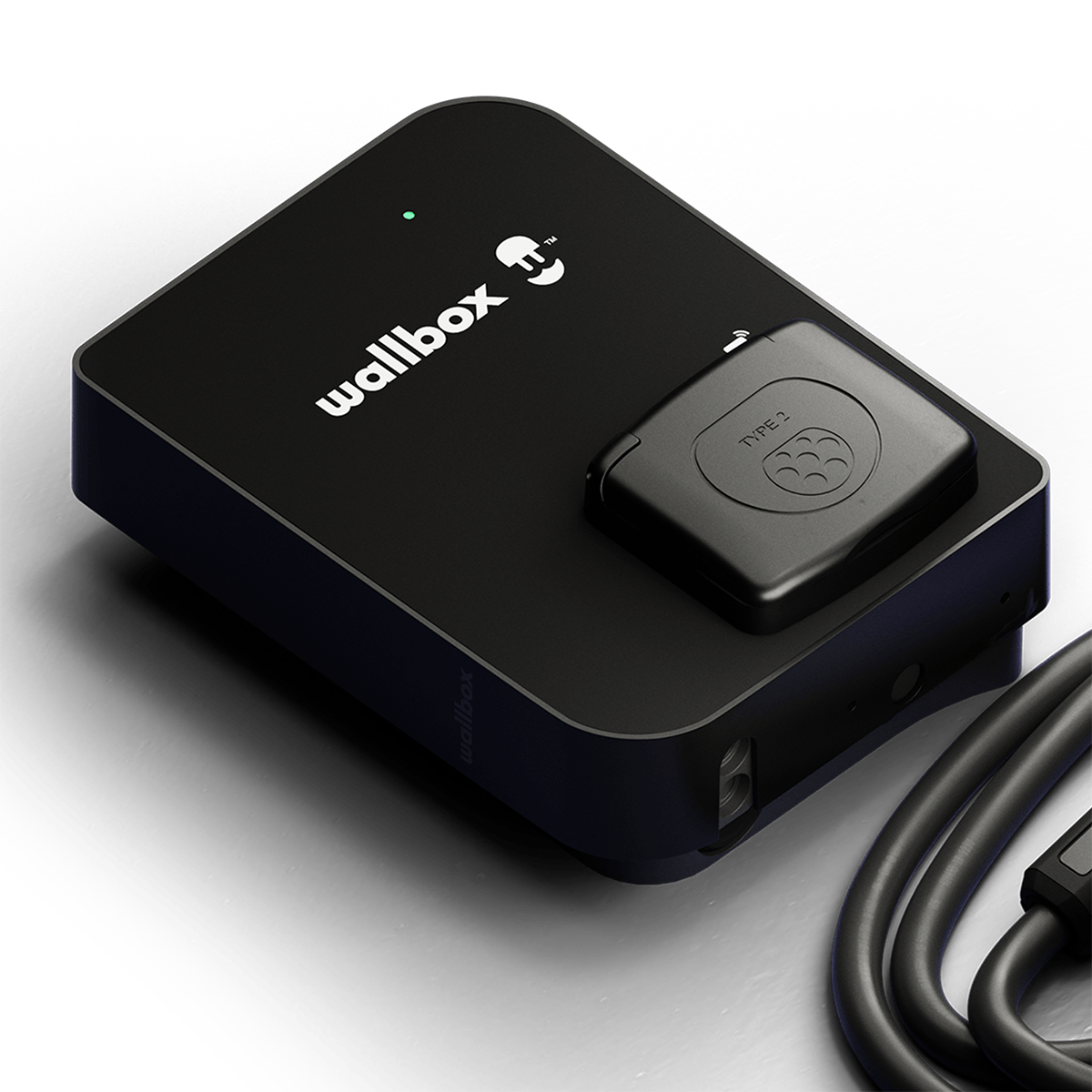

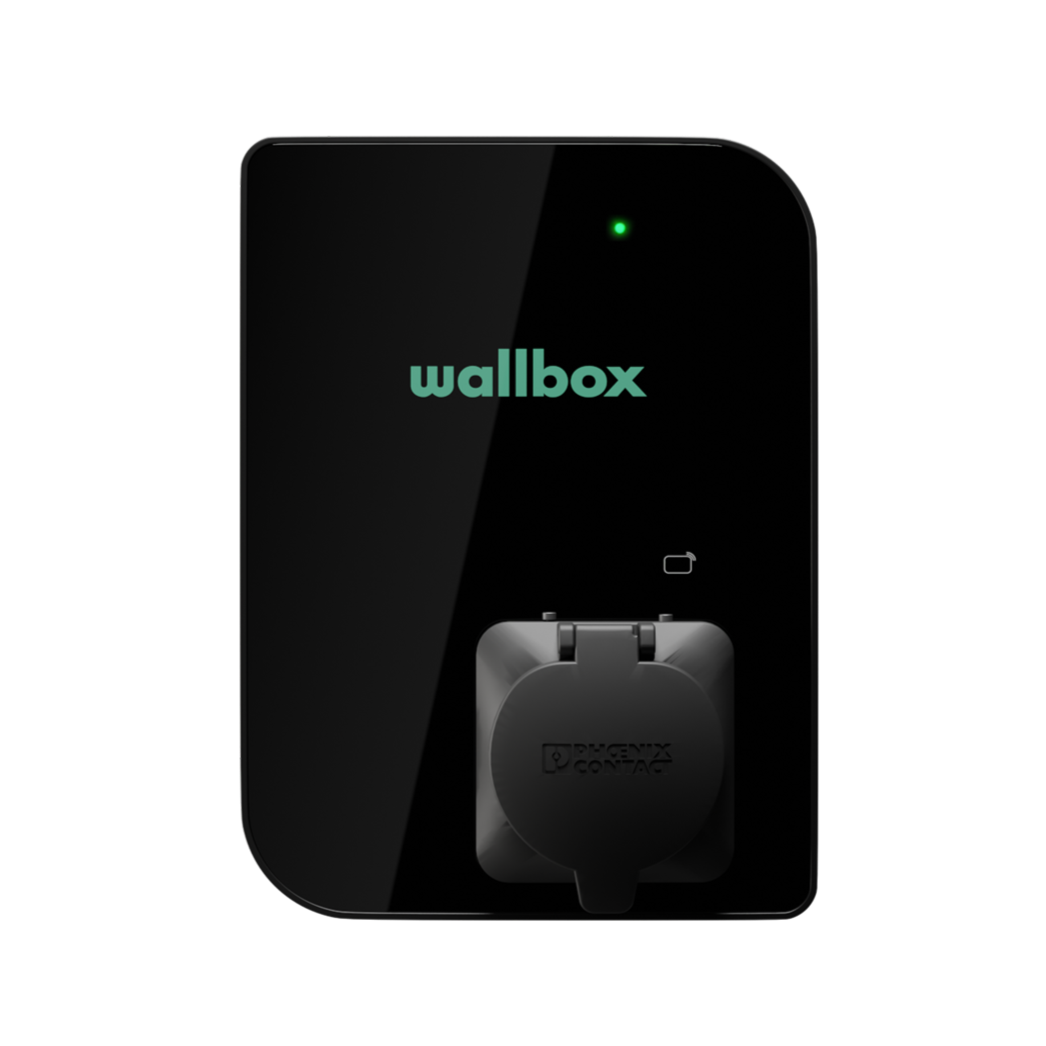

Type 2 Socket

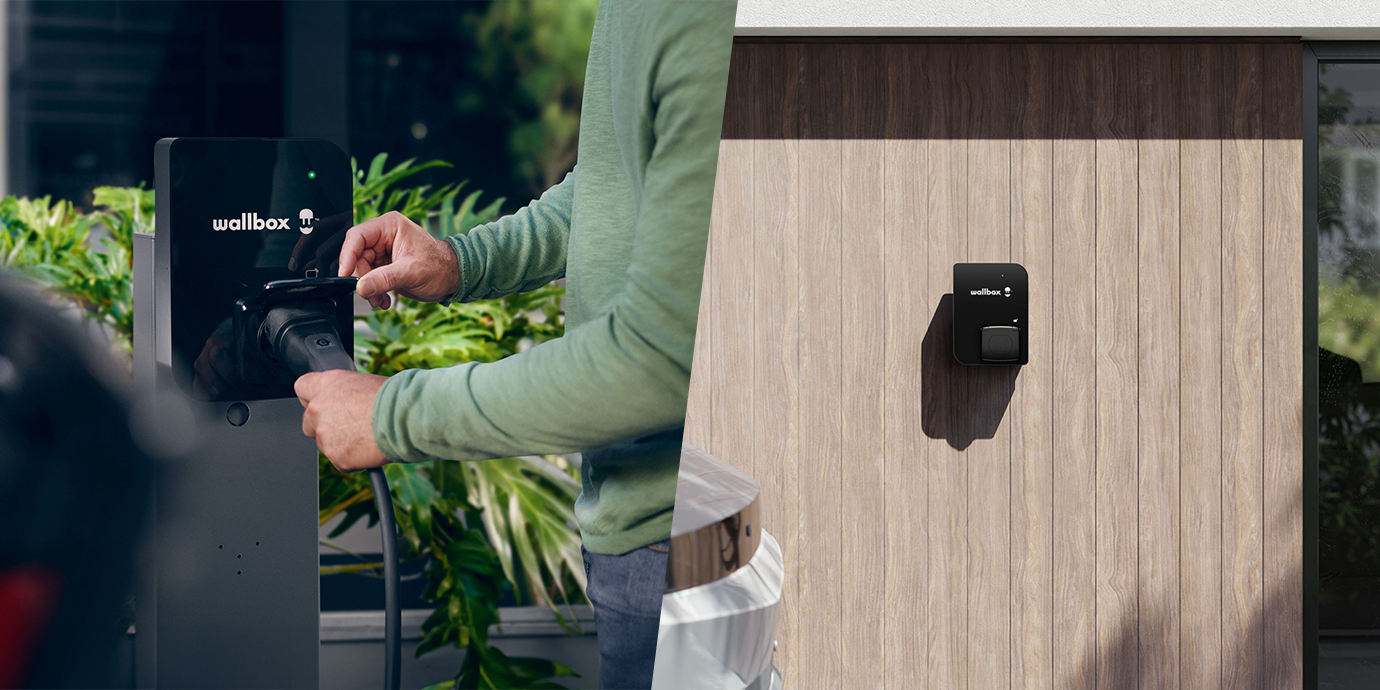

Easy Installation
Wallbox can be easily installed on wall or standing-pole with it back-plate design.

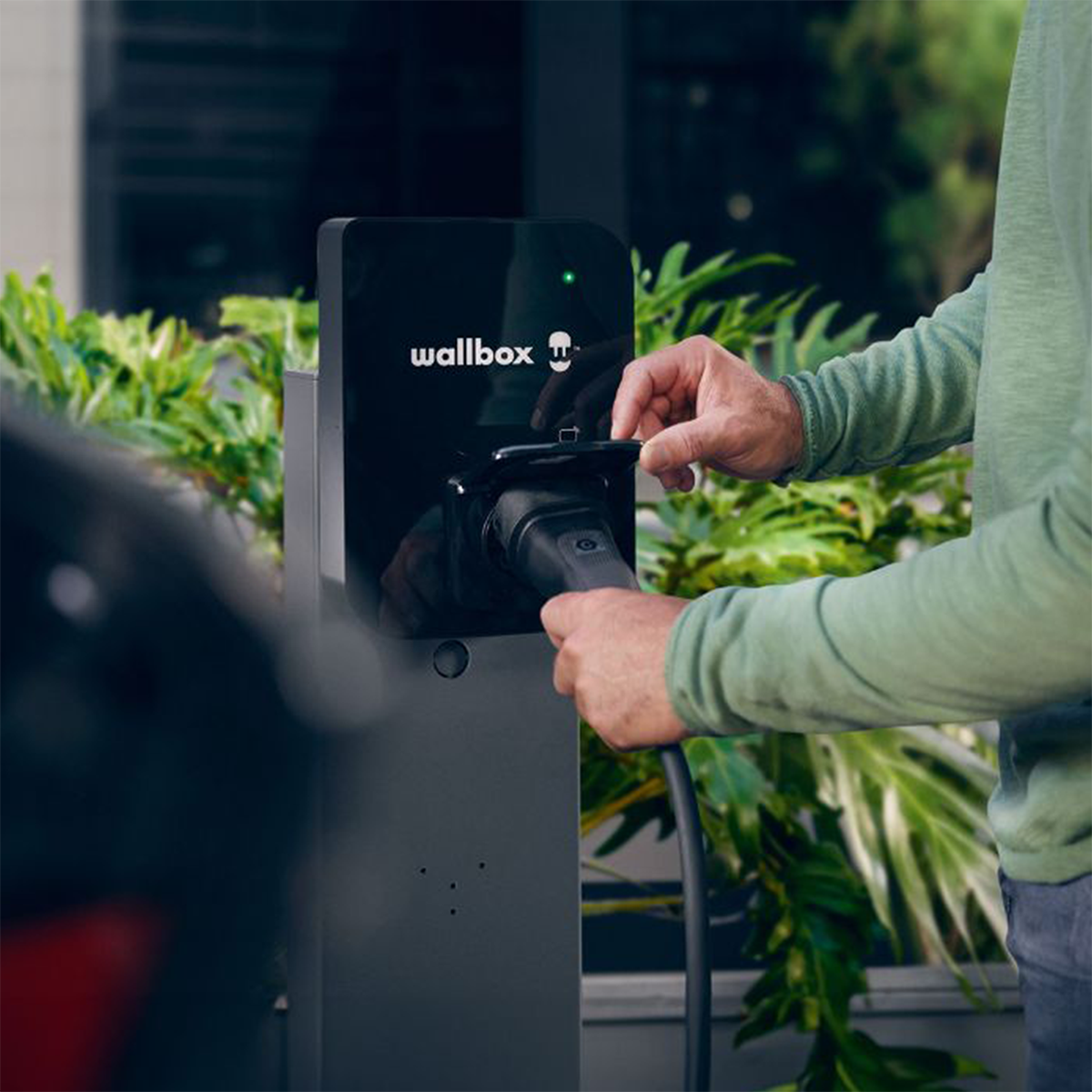

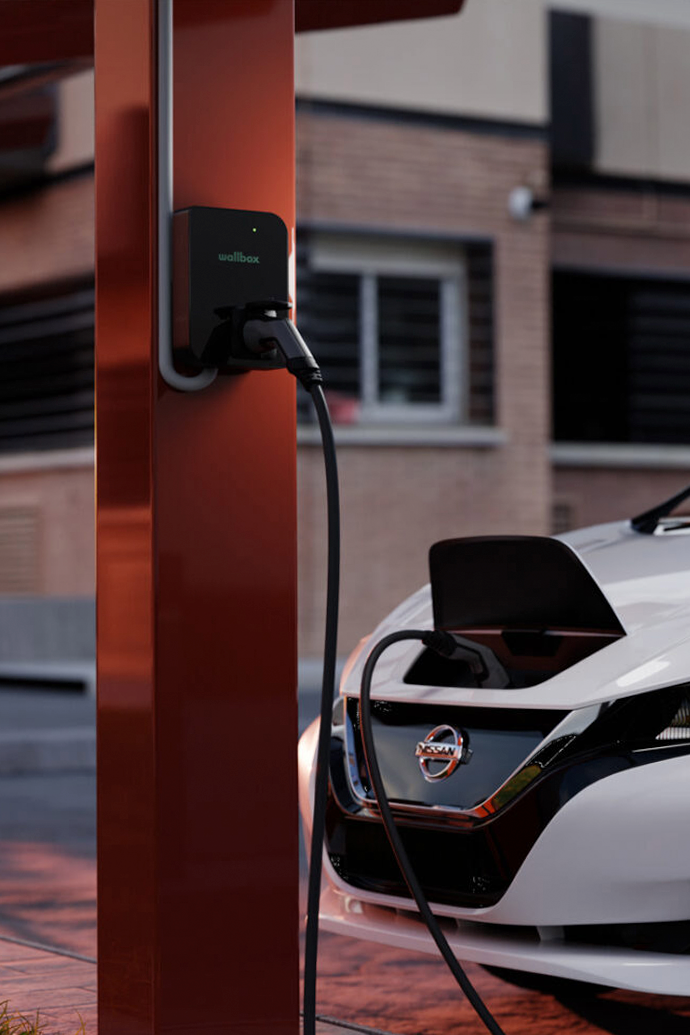

Standing Pole Installation

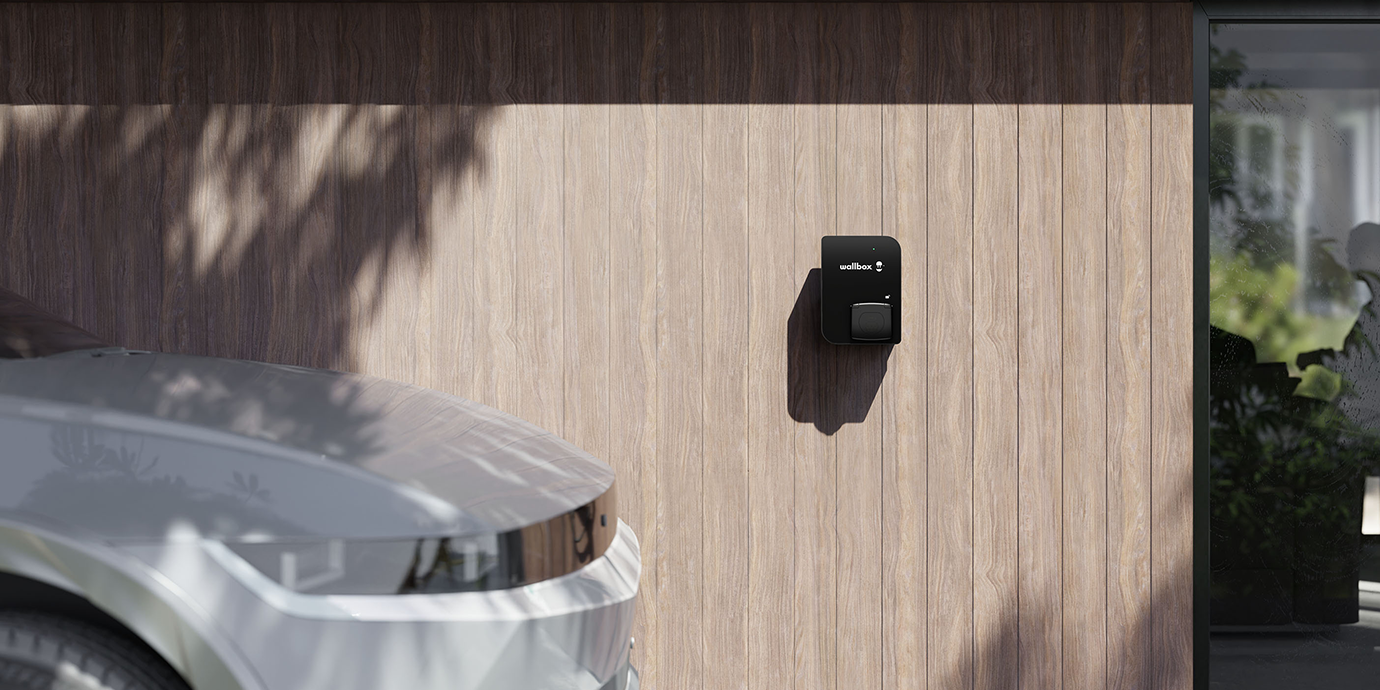

Wall Mounted Installation
Durability
Works in extreme condition.
IP54
Ingress Protection
IK10
Impact Rating
-25°C - 40°C
Operating Temperature
Compatibility
Adapt to all Electric Vehicles in Hong Kong.

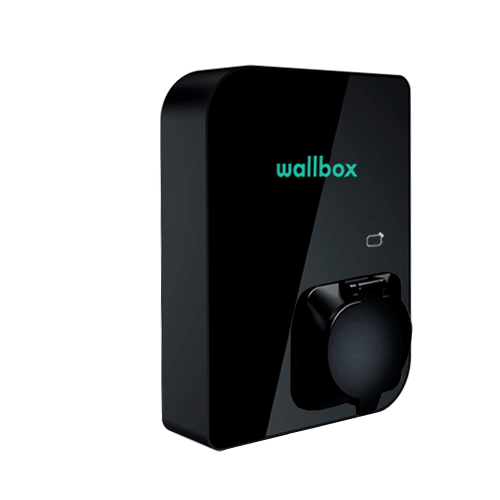

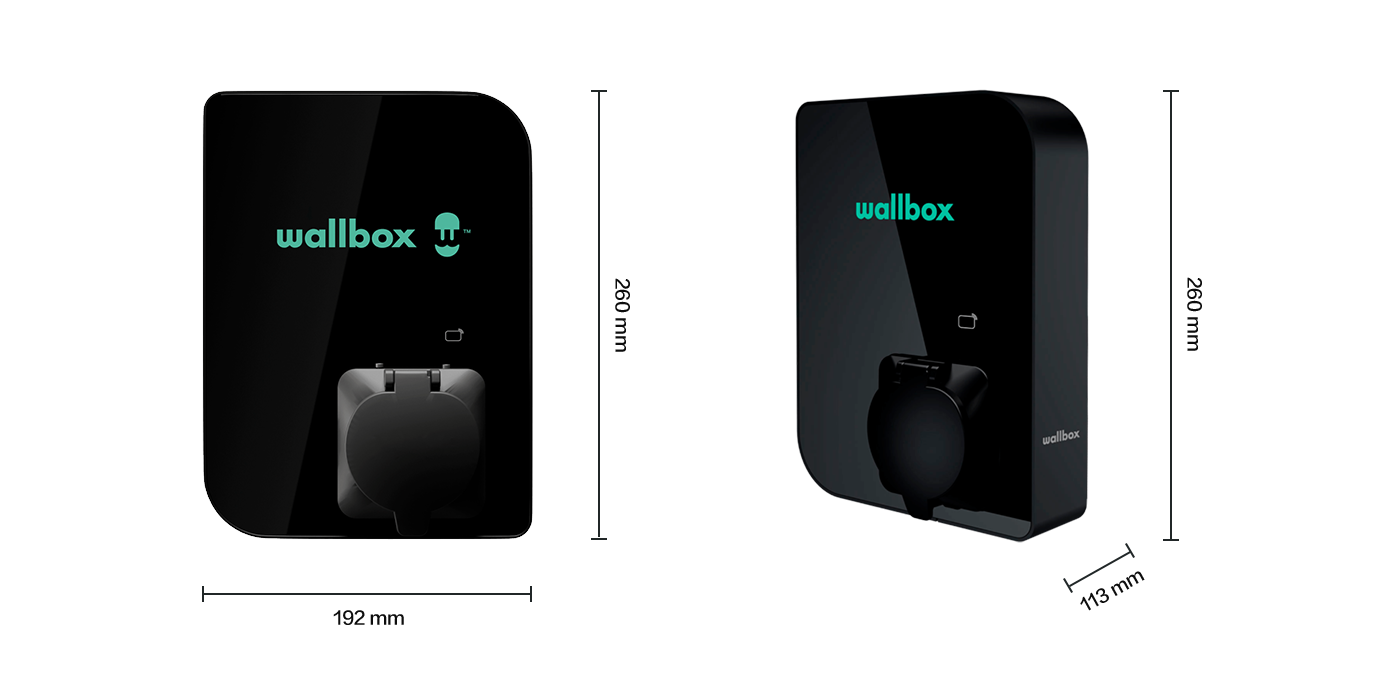

Dimension
Sleek and Compact Design
General specification
Wallbox Copper SB
myWallbox App & Portal
RFID / myWallbox App & Portal
Mode 3
Type 2 Socket
Black
192 x 260 x 113 mm
2 kg
IP54, IK10
-25 ºC to 40 ºC
-40 ºC to 70 ºC
CE mark (LVD 2014/35/EU, EMCD 2014/30/EU)
IEC 61851-1, IEC 61851-21-2, IEC 62196-2
Electrical specification
7kW (1P) / 11kW & 22kW (3P)
220-240V (1P) / 380-400V (3P)
6A to 32A
50Hz / 60Hz
Up to 5x10 mm²
AC 30mA, DC 6mA
CAT III
