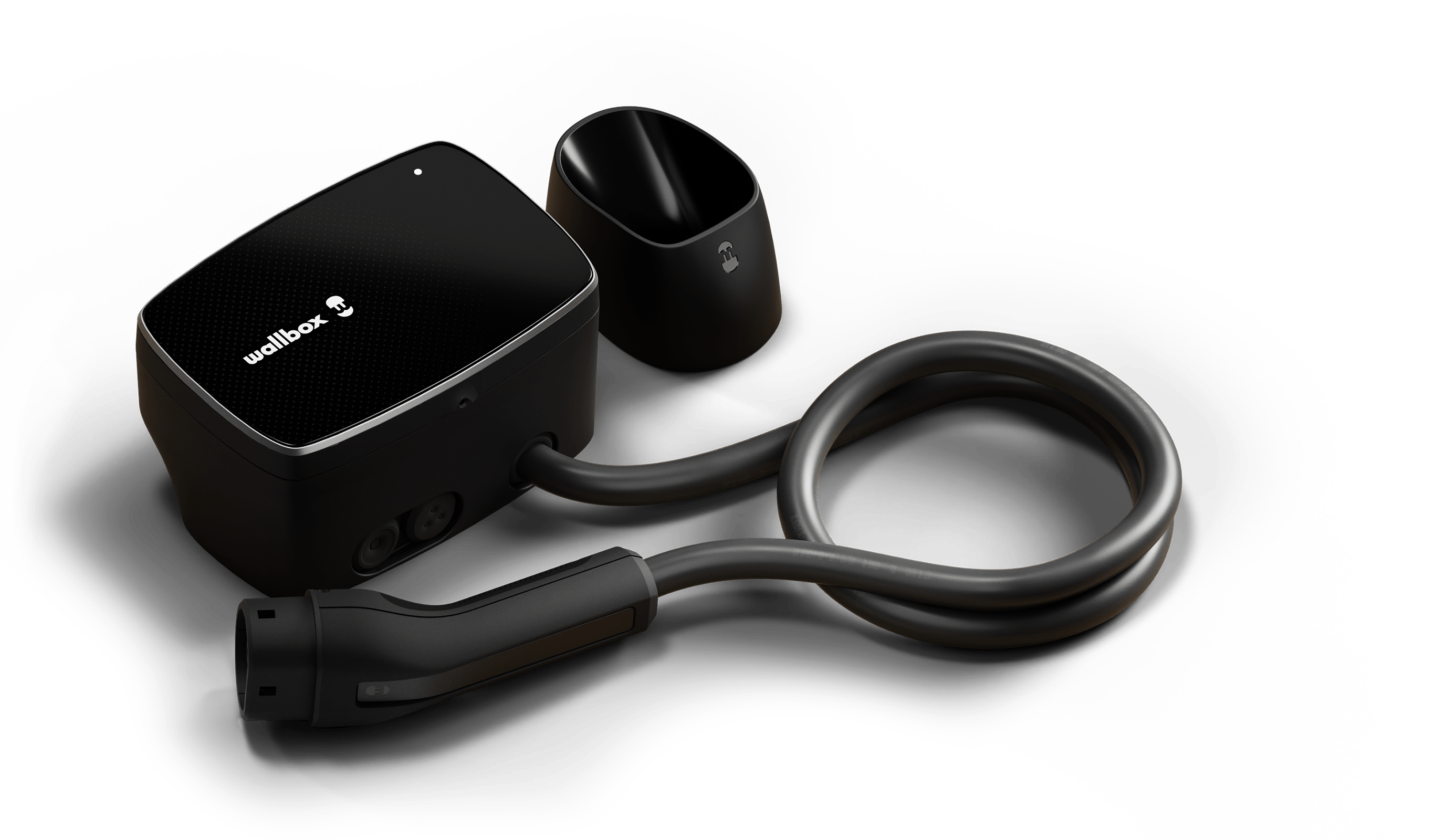

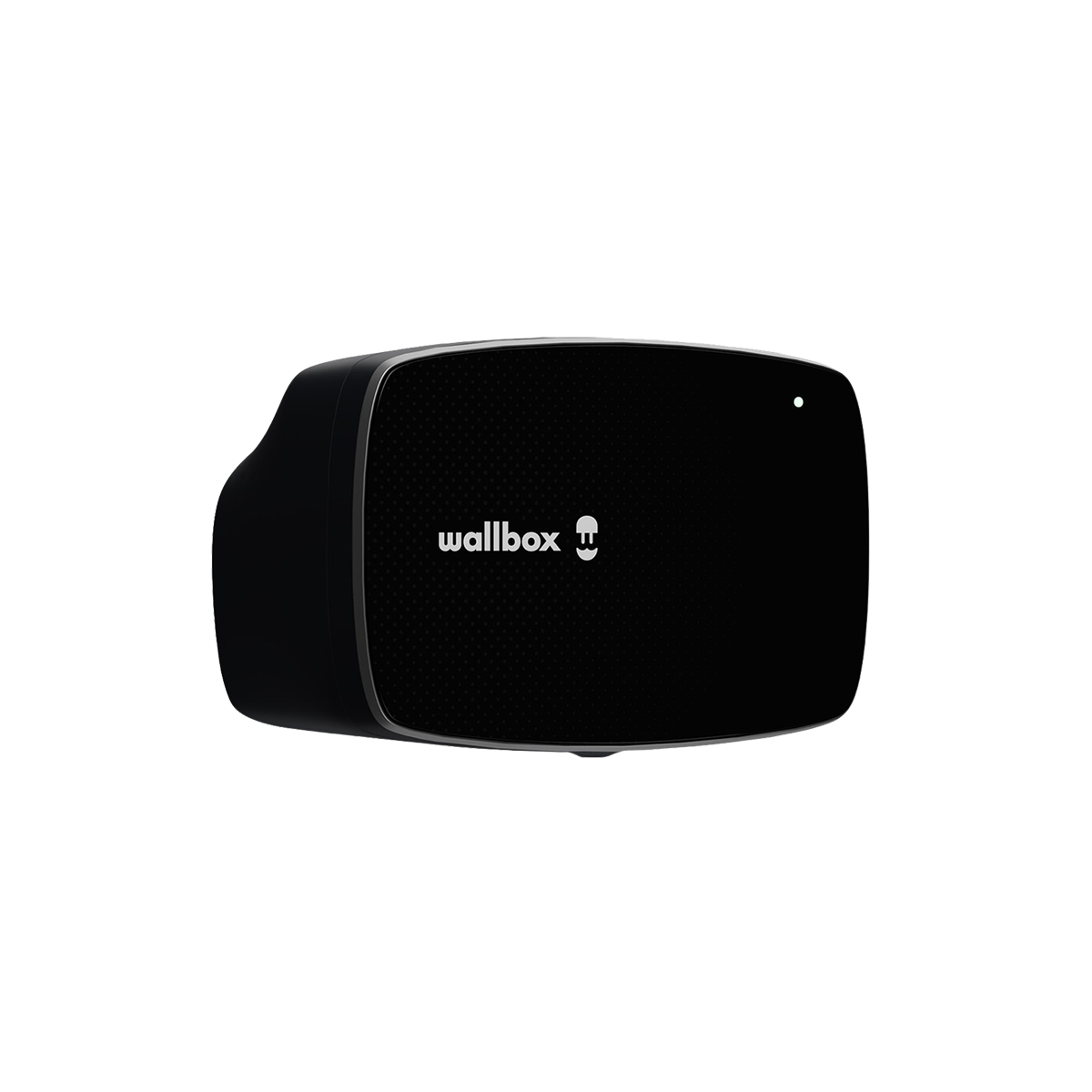

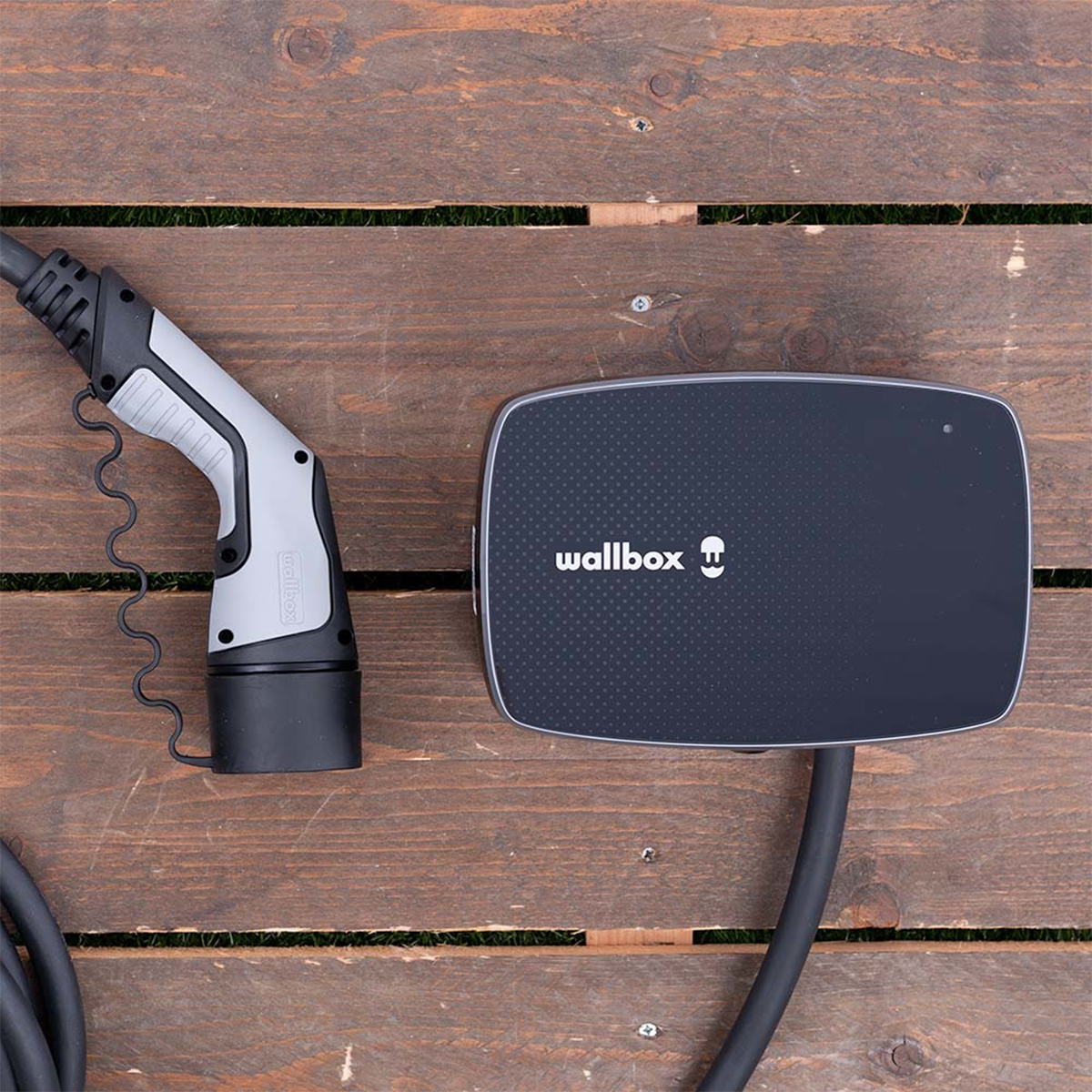

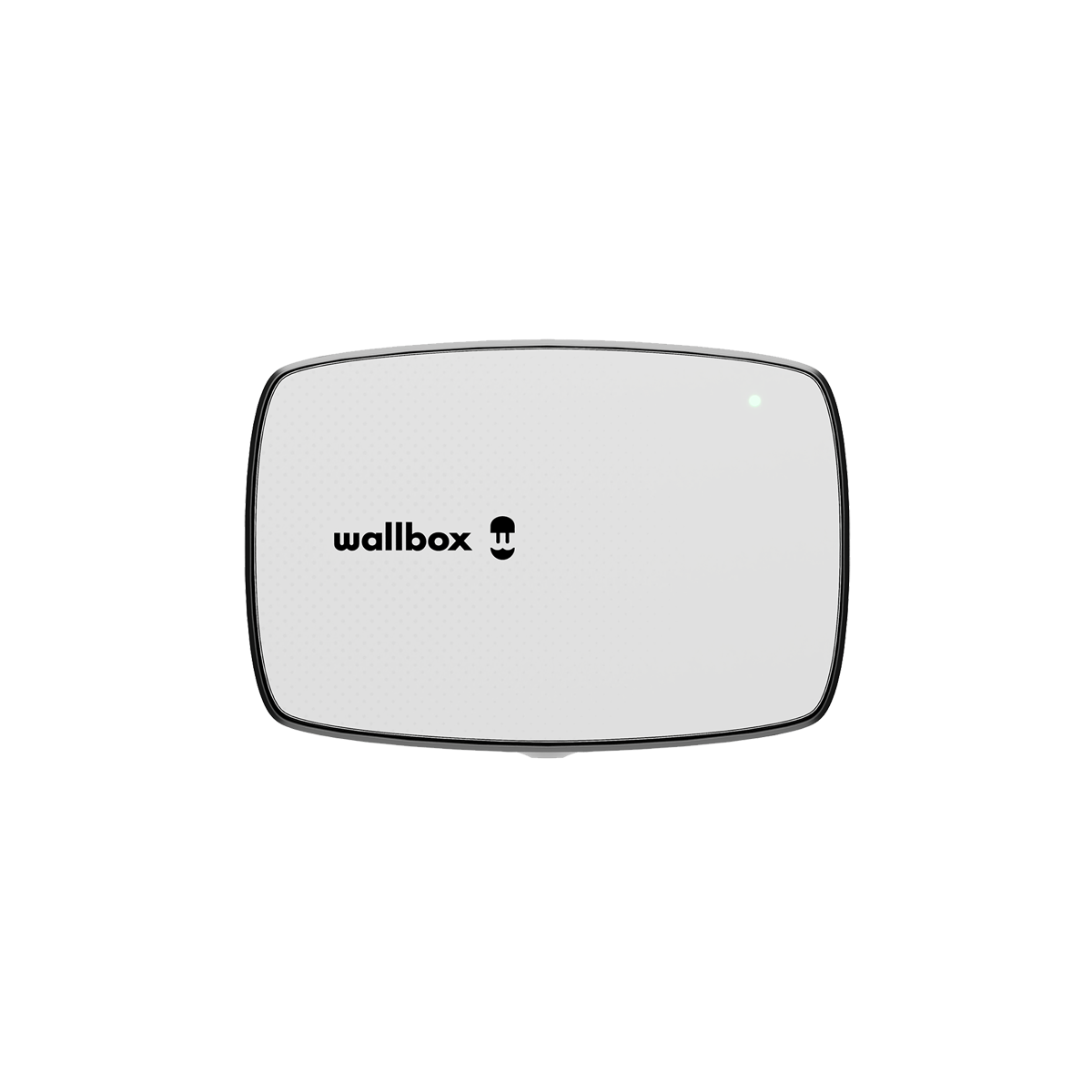

wallbox Commander 2S
The wallbox Commander 2S is an advanced, intelligent charging system for plug-in vehicles designed for semi-public and business charging locations. It is a new and improved second-generation design, incorporating internal DC leakage protection, which makes installation easier and more economical.
- High charging capacity up to 22 kW
- Suitable for 1- and 3-phase charging
- Fixed type 2 charging cable of 5 meters
- Integrated energy meter
- Insight and management via the MyWallbox app
- Dynamic load balancing
- Authentication via RFID or app
- Can be placed indoors and outdoors
Wallbox Commander 2S
A complete shared charging solution for less. Save on cost without compromising on functionality.
Connector Type
Type 2 (Mennekes)
Wallbox Commander 2S comes with the Type 2 connector for charging your electric car at home, on a standard AC electricity supply.

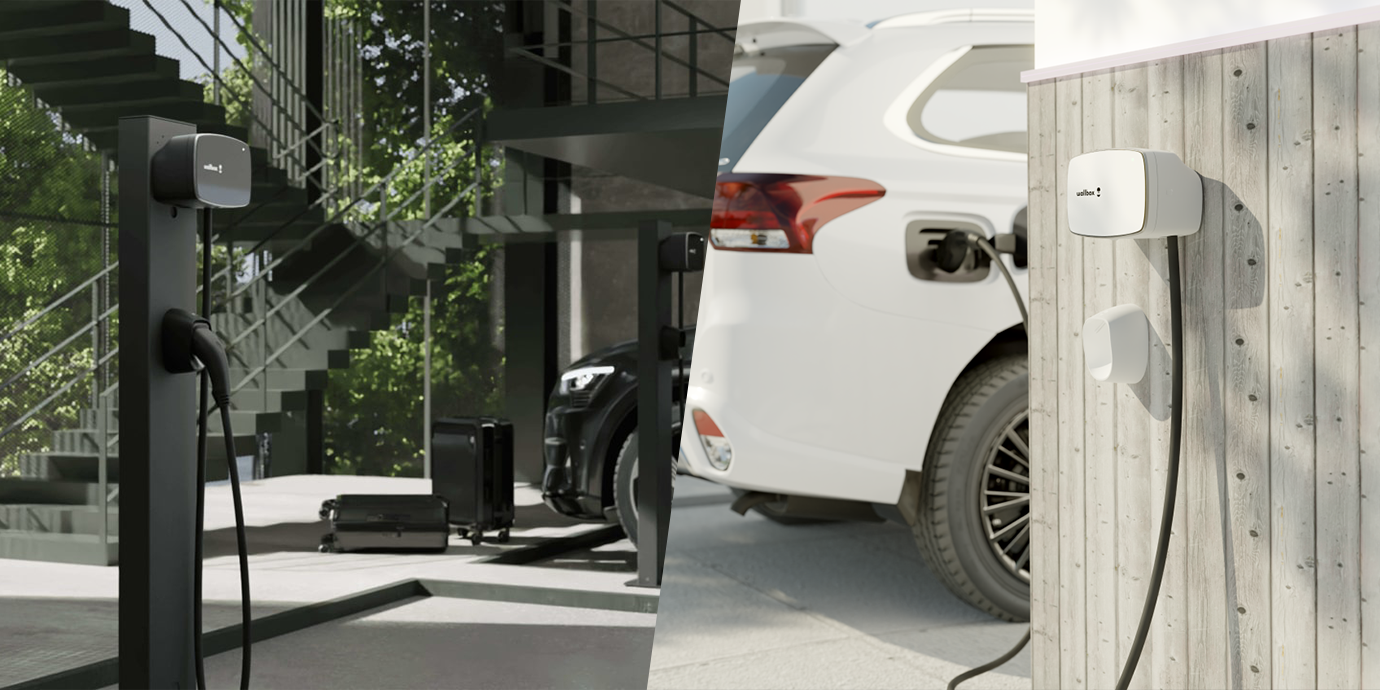

Easy Installation
Wallbox Commander 2 can be easily installed on wall or standing-pole with it back-plate design.
Standing Pole Installation
Wall Mounted Installation

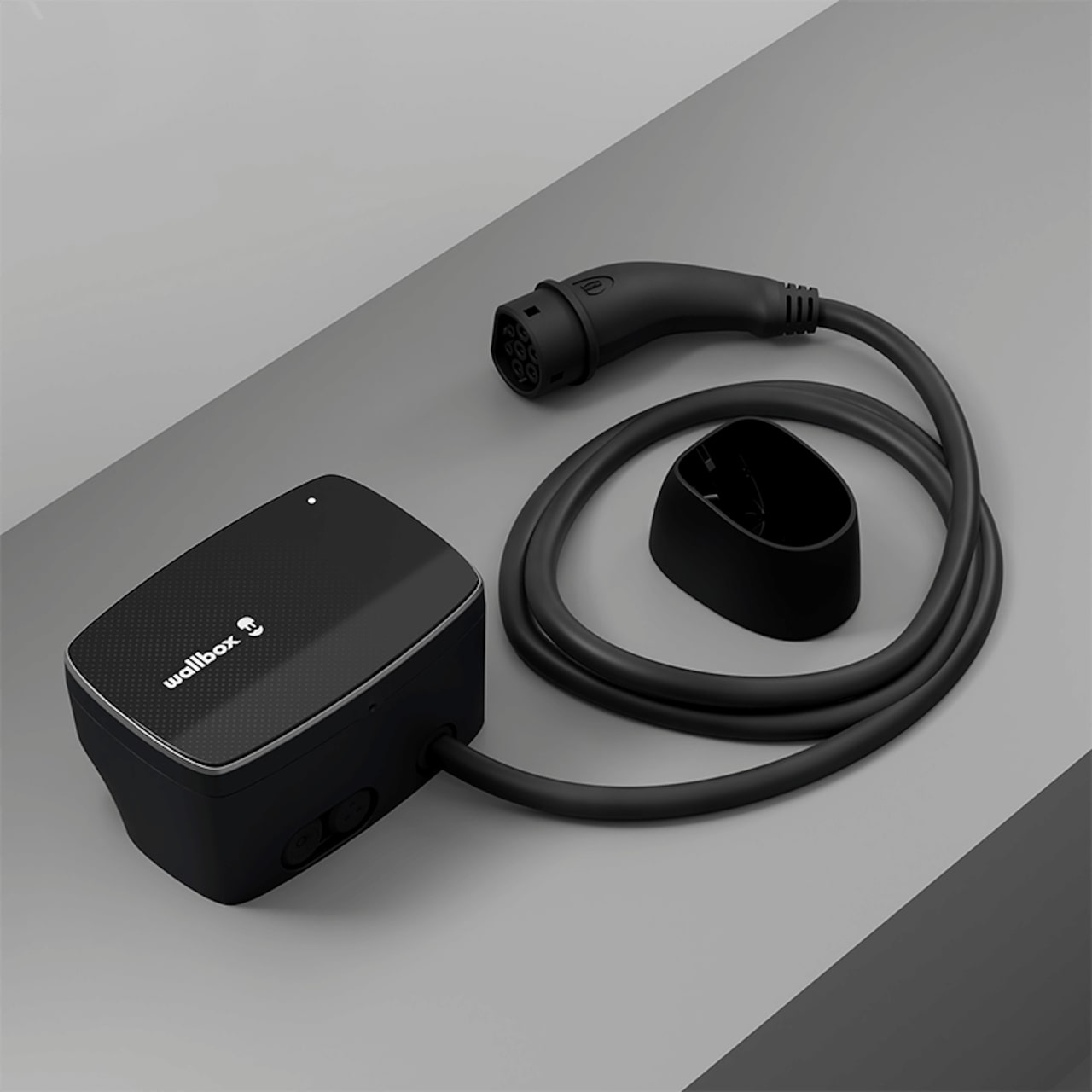

Connector Length
Wallbox Commander 2S comes with 5 meters long cable length.
Cable Length
5 Meters
Durability
IP54
Ingress Protection
IK10
Impact Rating
-25°C - 40°C
Operating Temperature
Compatibility
Adapt to all Electric Vehicles in Hong Kong.

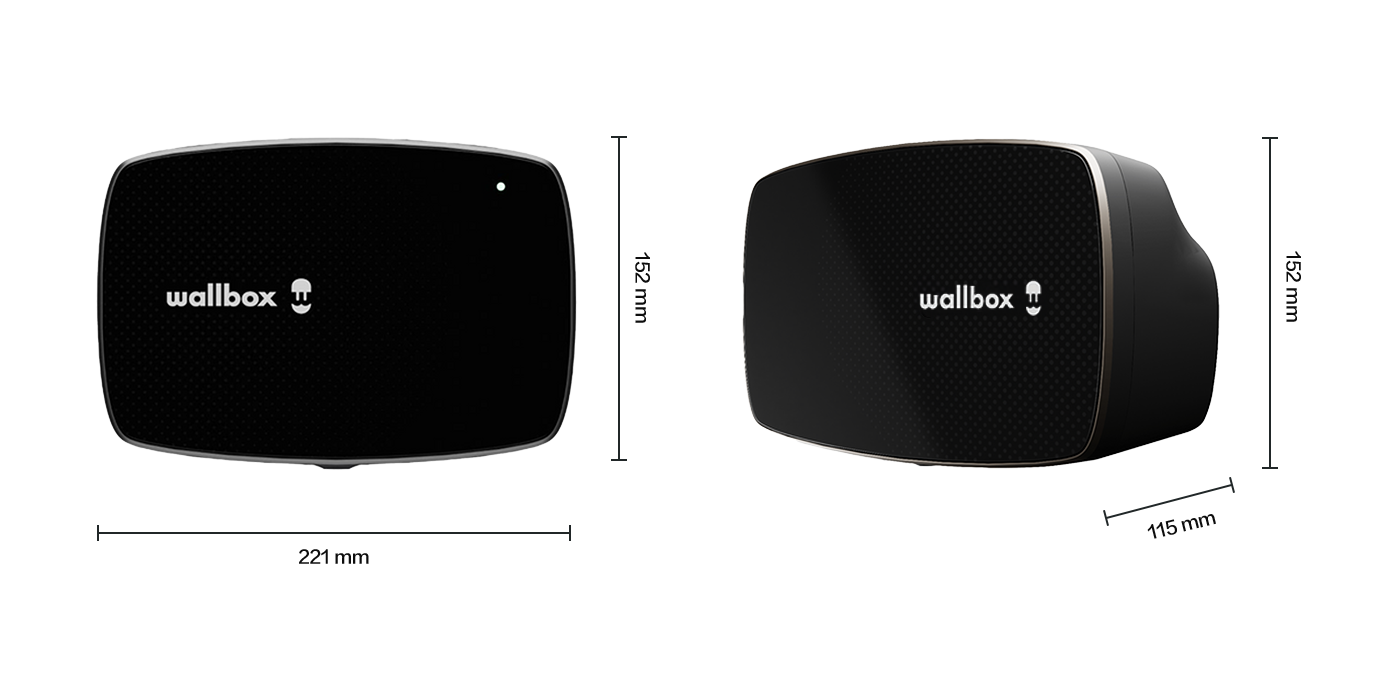

Dimension
Sleek and Compact Design
General specification
Wallbox Commander 2S
Mode 3
Type 2
Ethernet, Wi-Fi, Bluetooth
RGB LED, myWallbox App & Portal
myWallbox App & Portal
myWallbox App & Portal, RFID

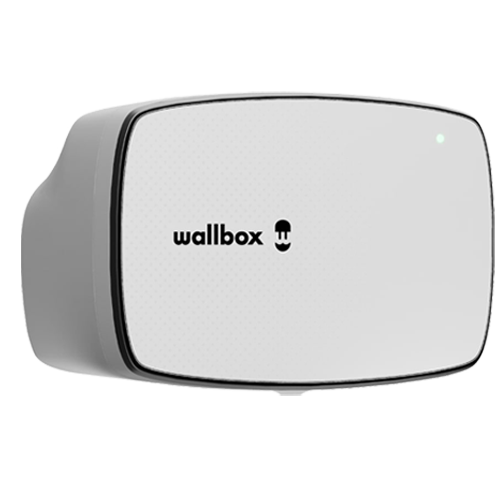

Black / White
5m
221 x 152 x 115 mm
2.4 kg (Without cable)
IP54, IK10
-25 ºC to 40 ºC
-40 ºC to 70 ºC
CE mark (LVD 2014/35/EU, EMCD 2014/30/EU)
IEC 61851-1, IEC 61851-21-2, IEC 62196-2
Electrical specification
7kW (1P) / 22kW (3P)
230V (1P) / 400V (3P)
6A to 32A
50 Hz / 60 Hz
Up to 10mm²
AC 30mA, DC 6mA
CAT III
