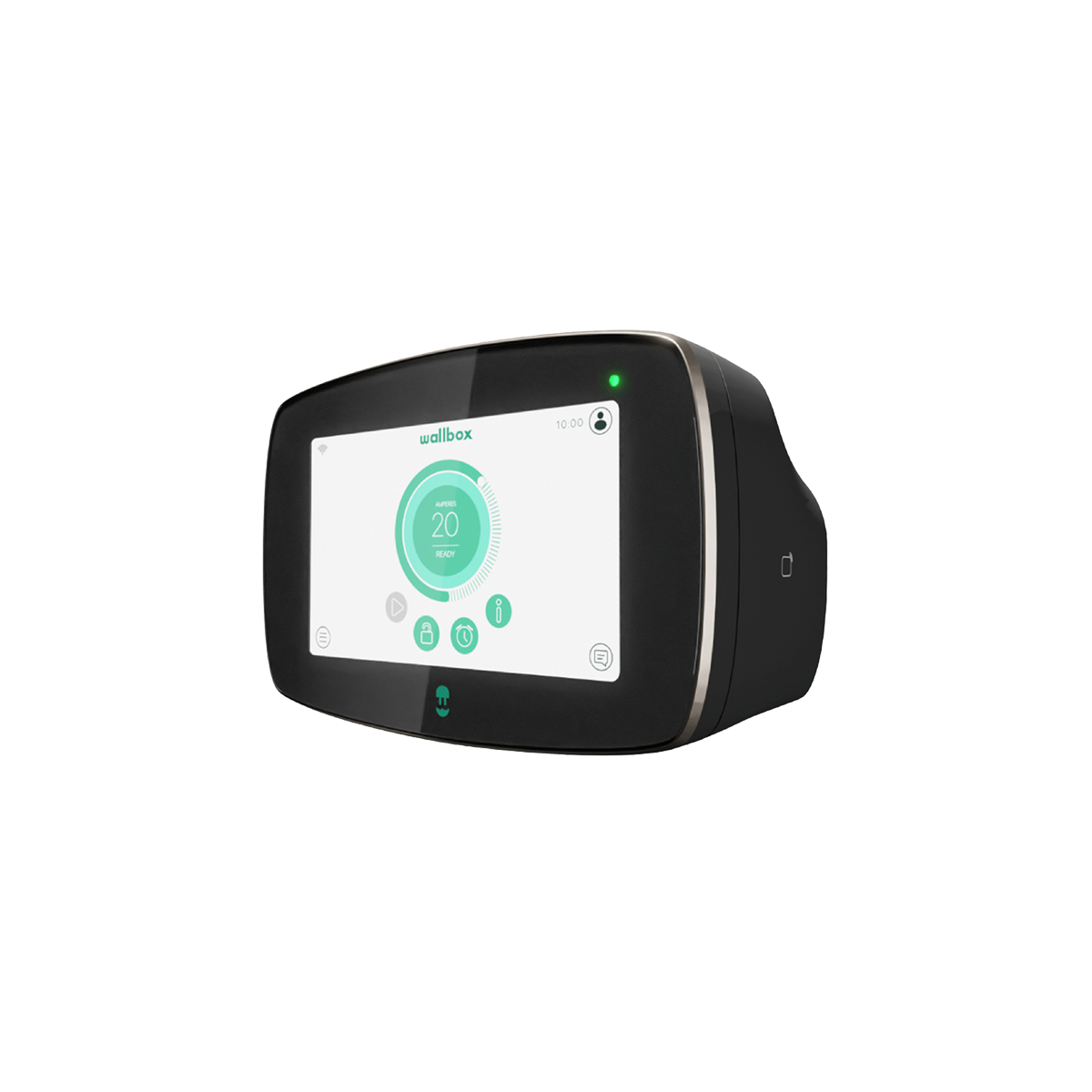

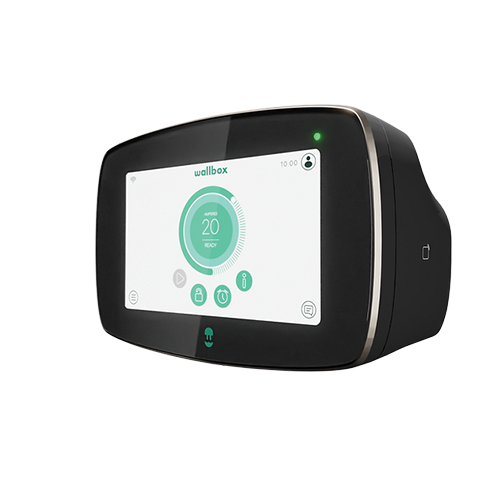

wallbox Commander 2
More than a charger, a business solution
- Charging power up to 22kW (3 Phase)
- Wifi & Bluetooth connectivity
- Customised user interface/management service
- Short charging time and savings
- Compatibility and ease of installation

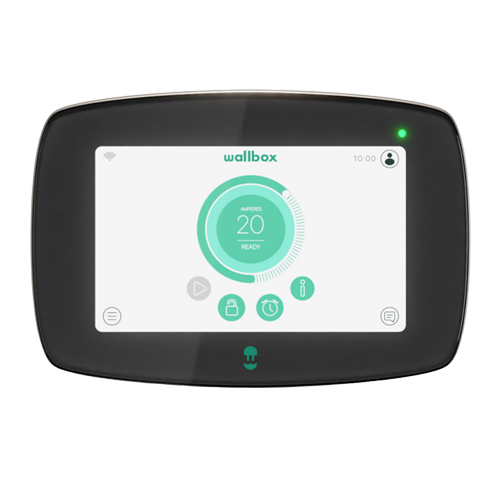

Wallbox Commander 2
More than a charger, a business solution

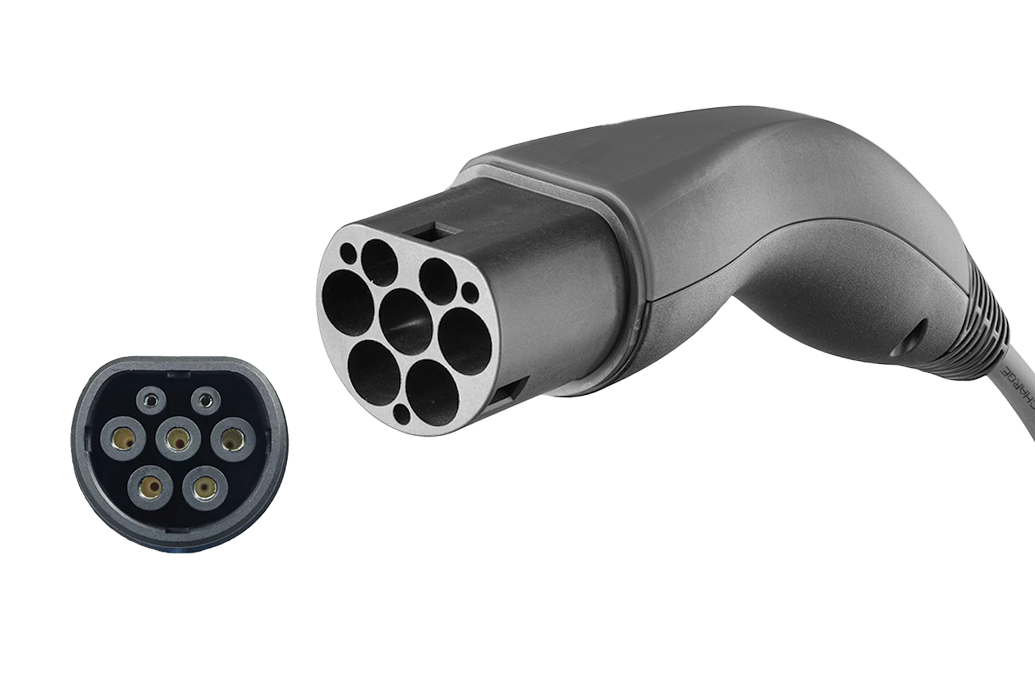

Connector Type
Type 2 (Mennekes)
Wallbox Commander 2 comes with the Type 2 connector for charging your electric car at home, on a standard AC electricity supply.
Connector Length
Pulsar Pro's charging connector comes with 5 meters long and there is an alternative option with 7 meters by request.
Easy Installation
Wallbox Commander 2 can be easily installed on wall or standing-pole with it back-plate design.

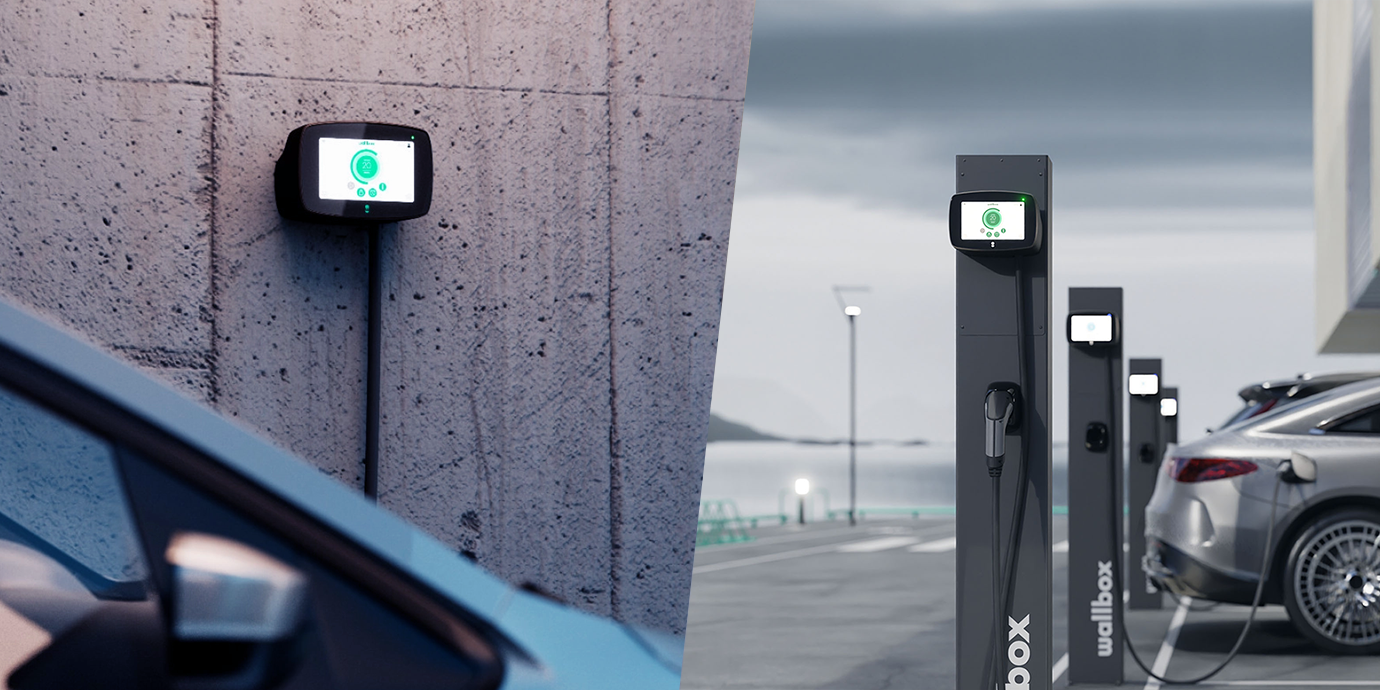

Standing Pole Installation

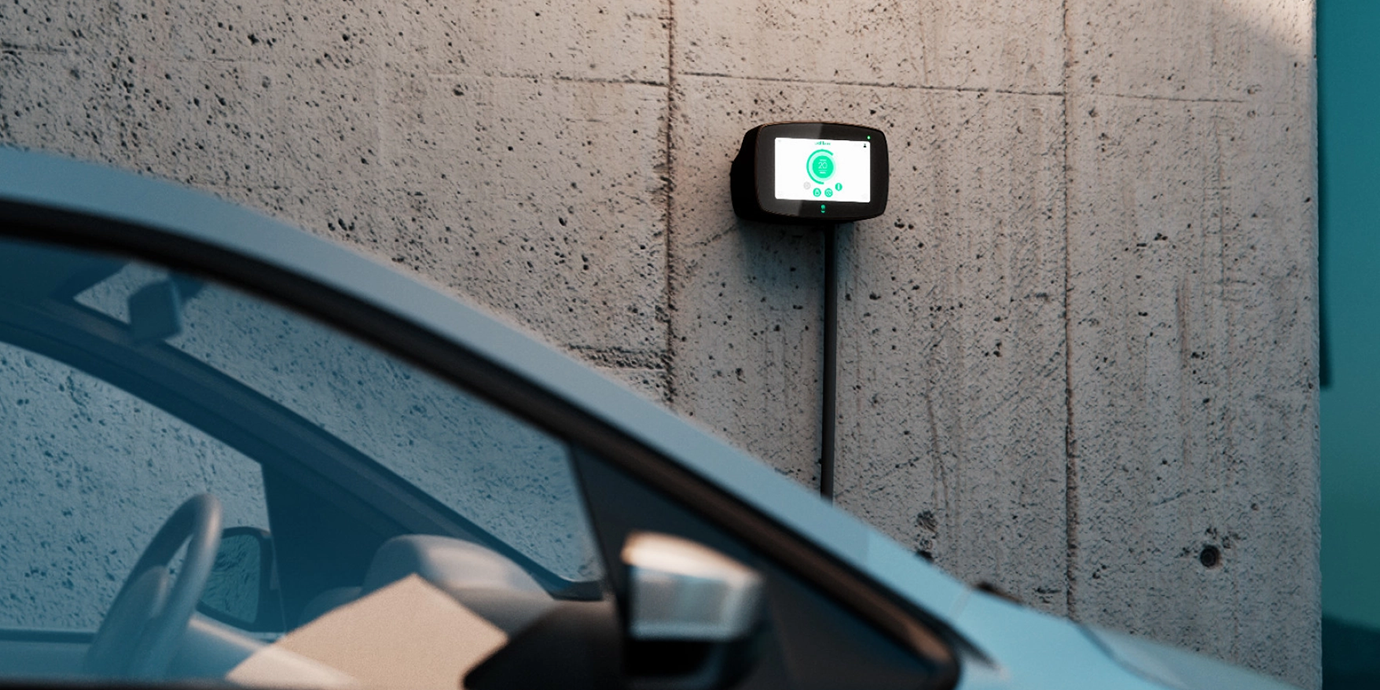

Wall Mounted Installation

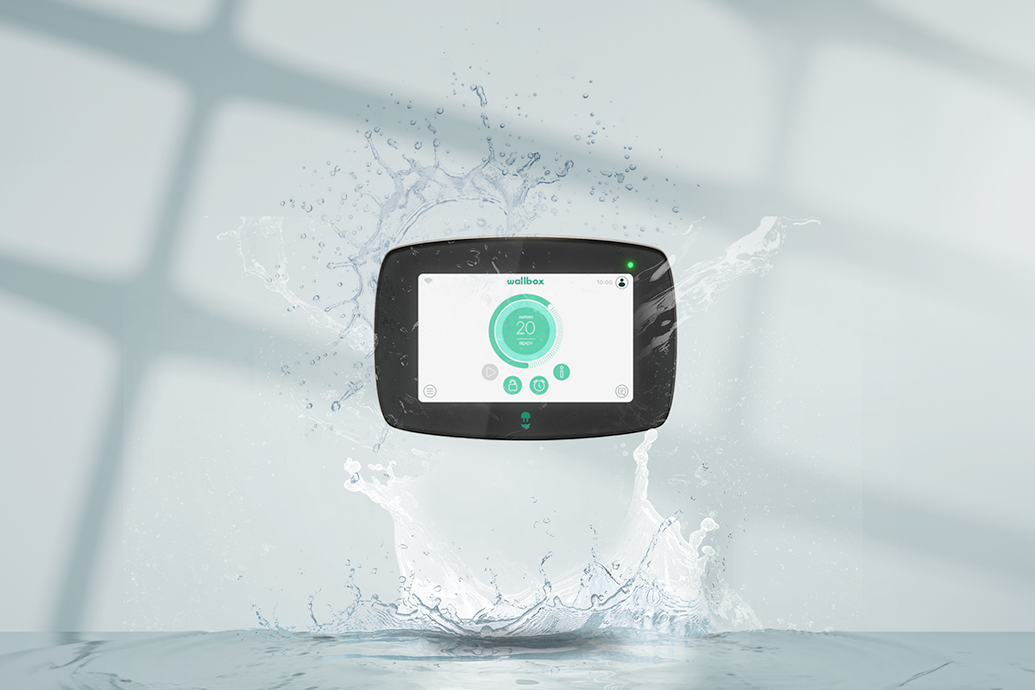

Durability
IP54
Ingress Protection
IK10
Impact Rating
-25°C - 40°C
Operating Temperature
%0AWifi%20%26amp;amp;%20Bluetooth%20connectivity%0ACustomised%20user%20interface/management%20service%0AShort%20charging%20time%20and%20savings%0AComp...
){kind=link}
Compatibility
Adapt to all Electric Vehicles in Hong Kong.

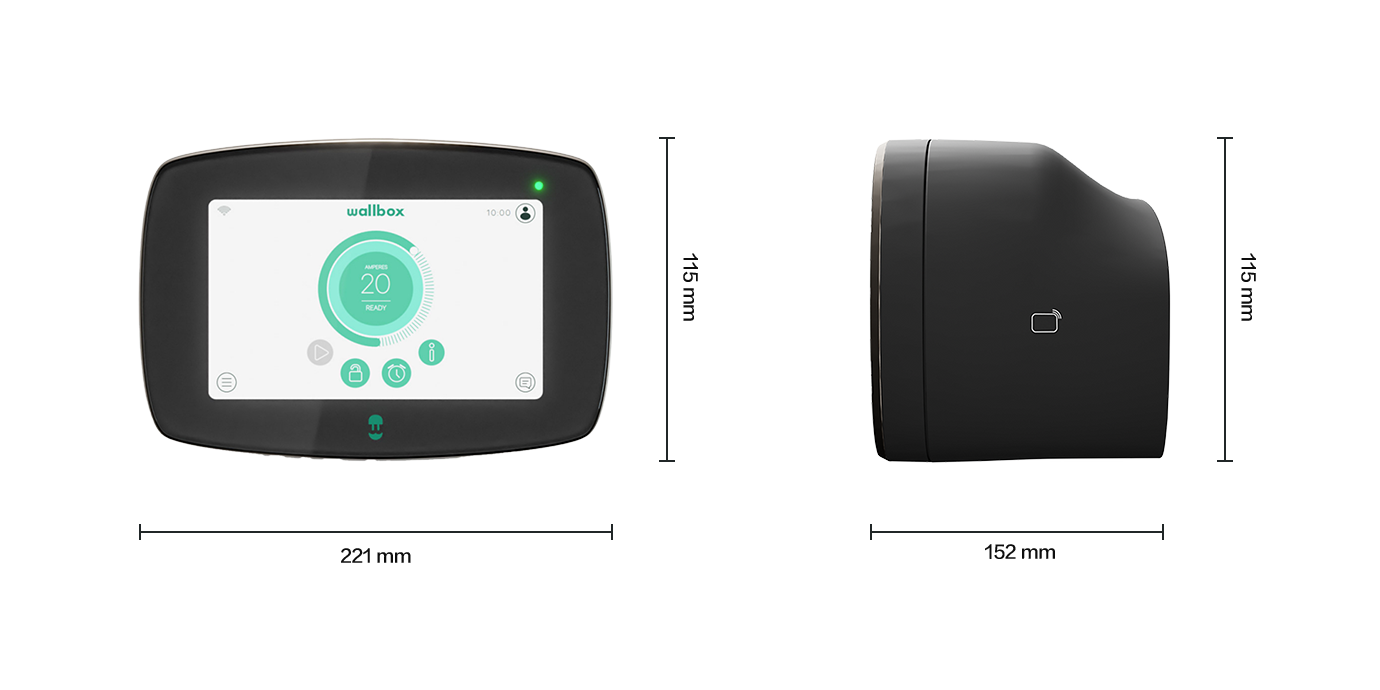

Dimension
Sleek and Compact Design
General specification
Wallbox Commander 2
Mode 3
Type 2
Ethernet, Wi-Fi, Bluetooth
RGB LED, Screen, myWallbox App & Portal
7" Touch Screen, myWallbox App & Portal
myWallbox App & Portal, RFID, PIN Code

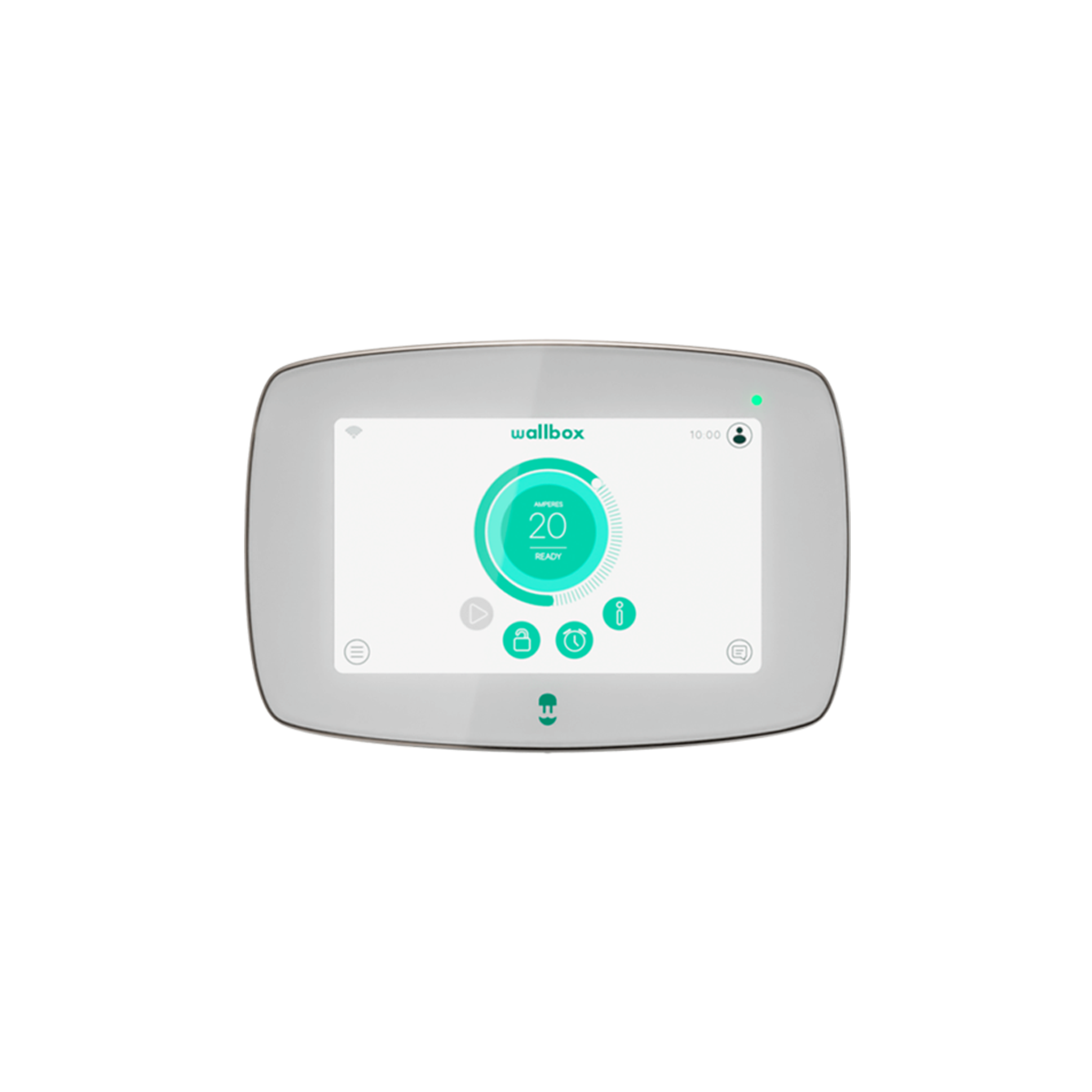

Black / White
5m (7m Optional)
221 x 152 x 115 mm
2.4 kg (Without cable)
IP54, IK10
-25 ºC to 40 ºC
-40 ºC to 70 ºC
CE mark (LVD 2014/35/EU, EMCD 2014/30/EU)
IEC 61851-1, IEC 61851-21-2, IEC 62196-2
Electrical specification
7kW (1P) / 22kW (3P)
230V (1P) / 400V (3P)
6A to 32A
50 Hz / 60 Hz
Up to 10mm²
AC 30mA, DC 6mA
CAT III
