Teison Smart Mini EV Charger
Compact, Smart, and Powerful – The Future-Proof EV Charging Solution.
The Teison Smart Mini EV Charger is a MODE 3 (IEC61851-1) smart electric vehicle charger designed for residential use. It features a compact, IP65-rated design suitable for both indoor and outdoor installations. With Type 1/2 plug compatibility, it works seamlessly with all electric vehicles. The charger offers smart connectivity via Bluetooth, Wi-Fi, and 4G, along with RFID authentication, load balancing, and solar energy excess charging for enhanced efficiency.
- Smart Connectivity – Control via Mobile App
- RFID Card Authentication
- OCPP 1.6J compliant for smart charging management
- Single Load Balancing (via CT Clamp or 485 Electricity Meter)
- Full Protection – Type B RCD, overcurrent, overvoltage, etc.
- Plug-and-Play & Scheduled Charging
Teison Smart Mini
EV Charger
Connector Type
Type 1 or Type 2 Connector Options cover all local EV models.
Type 1
J1772
Type 2
Mennekes

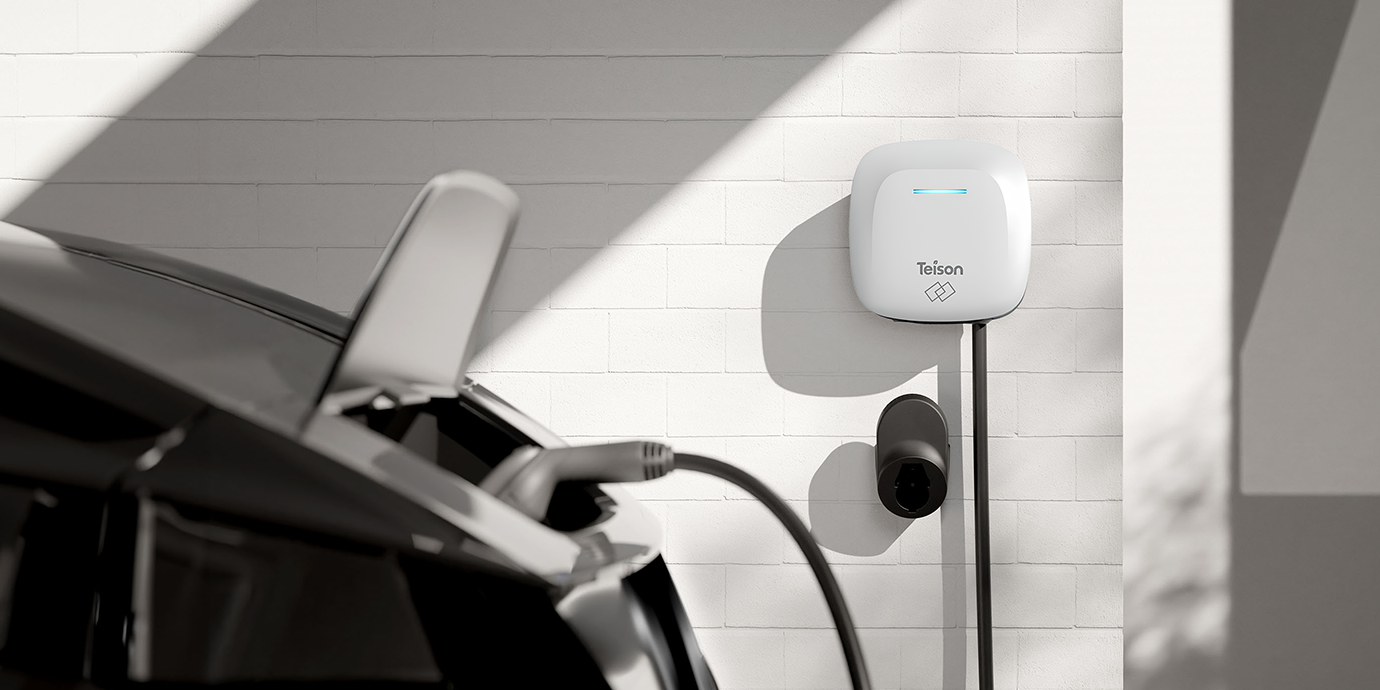

Easy Installation
Teison Smart Mini can be easily installed on wall or standing-pole.
Wall Mounted Installation
Standing Pole Installation

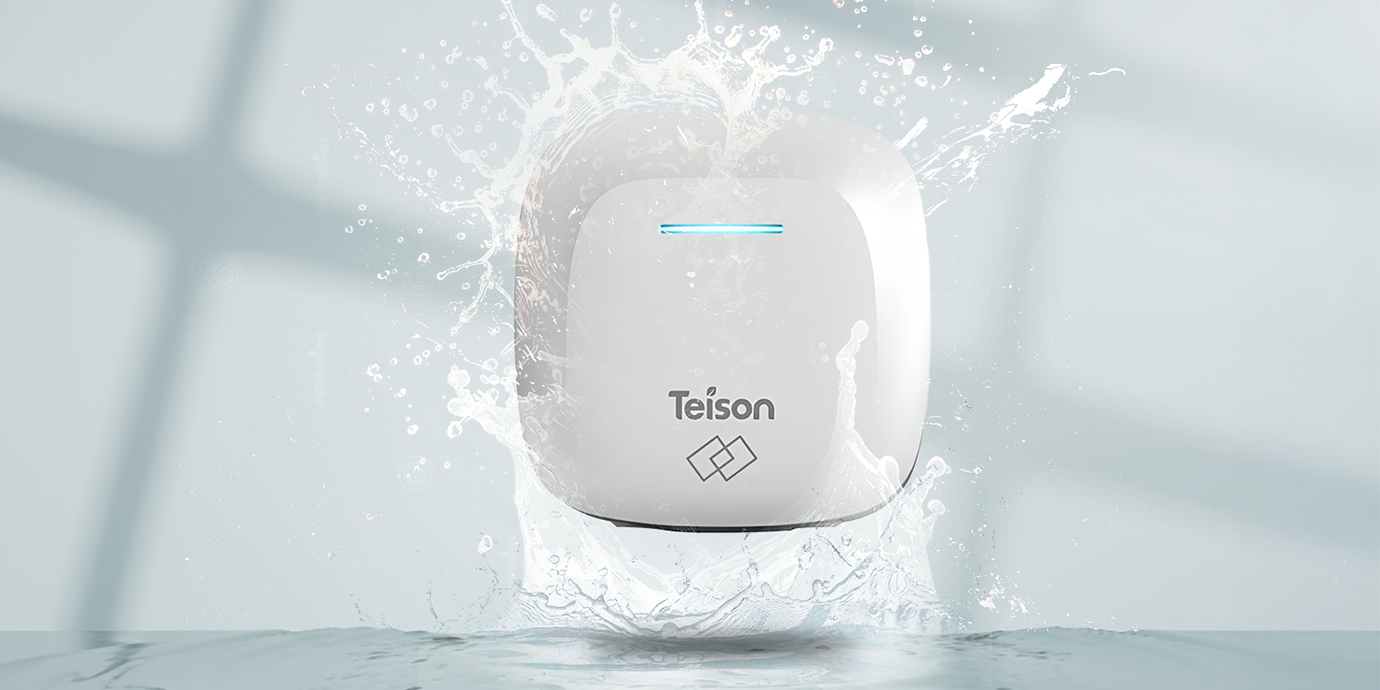

Durability
Works in extreme condition.
IP65
Ingress Protection
IK10
Enclosure Hardness
-30°C - 50°C
Operating Temperature
%20smart%20electric%20vehicle%20charger%20designed%20for%20residential%20use.%20It...
){kind=link}
Compatibility
Adapt to all Electric Vehicles in Hong Kong.
Dimension
Sleek and Compact Design
General specification
Teison Smart Mini
Wi-Fi, Bluetooth, 4G(Optional)
LED Indicator, App
App, RFID, Plug & Charge
Mode 3
Type 1 / Type 2
Black / Silver
4.5m / Socket
OCPP 1.6 J-SON
228.5 x 228.5 x 100 mm
4.4 kg
IP65, IK10
-30 ºC to 50 ºC
5% ~ 95%, No Condensation
CE, UKCA, TUV, CB, RoHs, TR25, UL Marks
IEC 61851-1, IEC 61851-21-2, EN61851-2011
Electrical specification
7kW (1P) / 11kW(3P) / 22kW (3P)
230V (1P) / 400V (3P)
16A, 32A
50 Hz / 60 Hz
Type A (AC 30mA), DC 6mA (Optionall)
