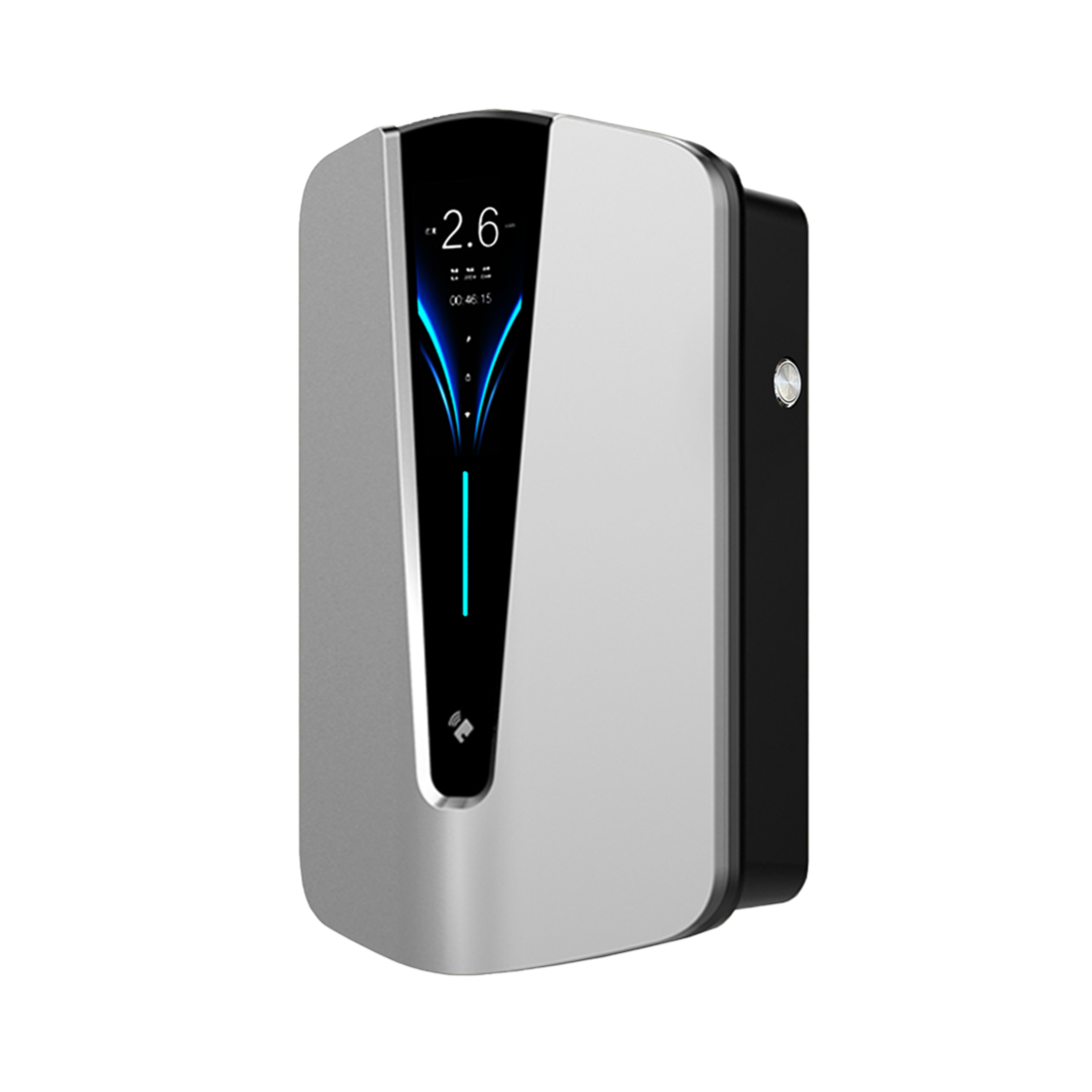

NTT V-Shield 最強性價比
Start charging with the most cost-effective solution
The NTT V-Shield is your innovative wall charger with versatile connectivity options. It is contemporary and compact in size and makes it perfect for residential user.
- Compact and sleek design
- Charging power from 7kW(1 Phase) to 22kW (3 Phase)
- Plug to Charger / RFID / App
- Versatile safety protections
- Built-in LED Indicator
- IP65 Dust and waterproof rating
- Wall mounted or standing pole installation
- Optional Type B RCD protection +$2500

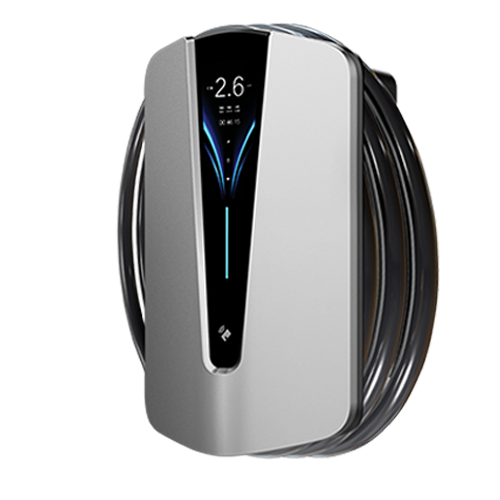

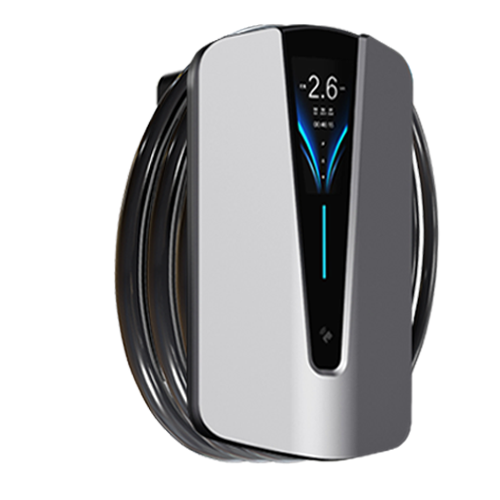

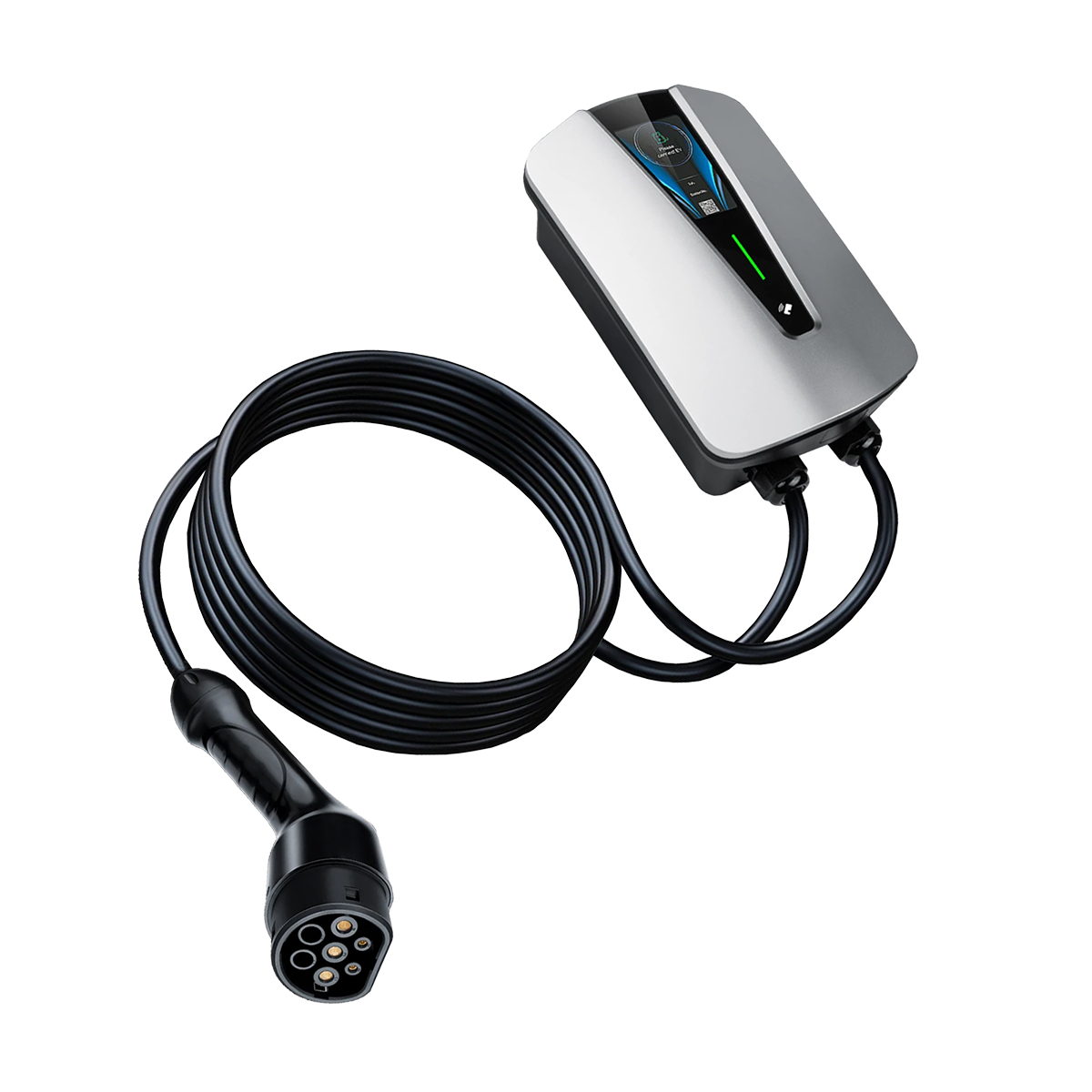

NTT V-Shield
NTT V-Shield: The compact, sleek EV charger with unbeatable value—power meets style!
Connector Type
Type 1 or Type 2 Connector Options cover all local EV models.
Type 1
J1772
Type 2
Mennekes
LED Indicator
Built-in LED indicator showing the different charging status.

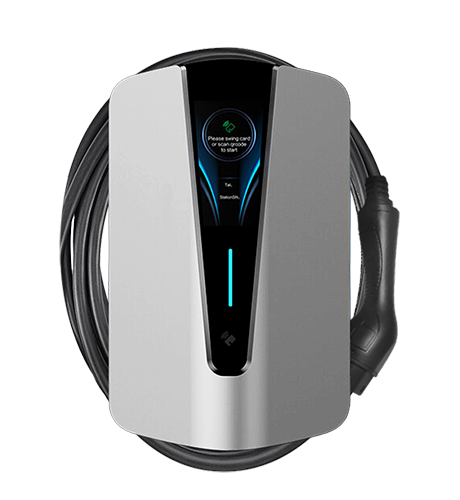

Idle
The charger is ready to use in blue light.

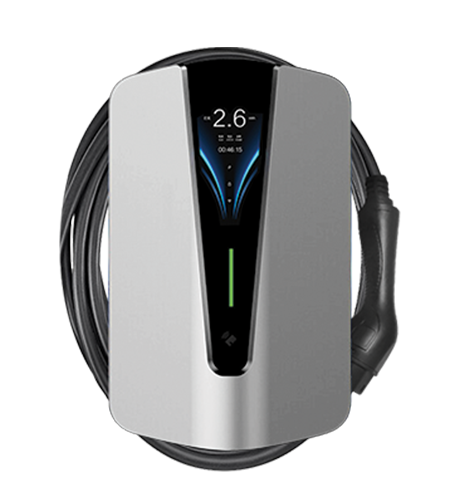

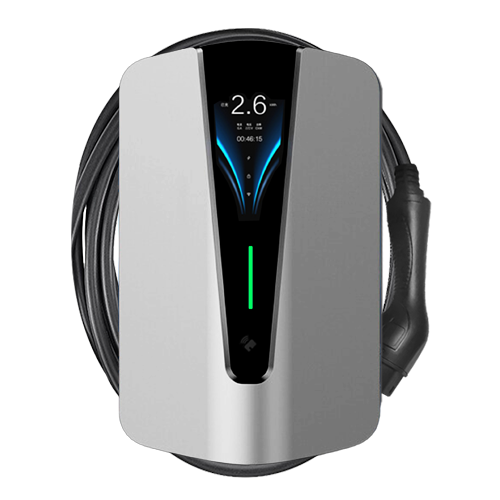

Charging
The vehicle is charging when it is in green light.
Fault
Red light shows the fault of charging.
Connector Length
Provides a wide range of connector lengths to meet your requirement.
Easy Installation
NTT V-Shield can be easily installed on wall or standing-pole with it back-plate design.

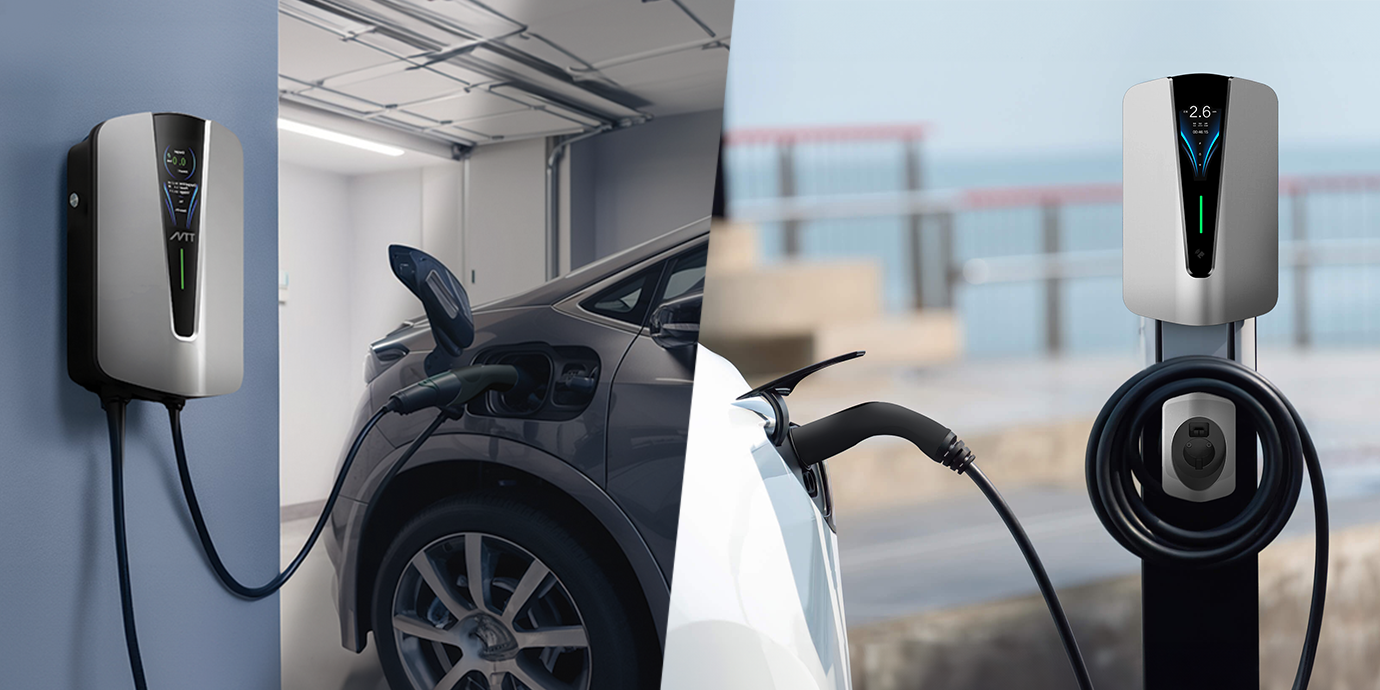

Wall Mounted Installation
Standing Pole Installation

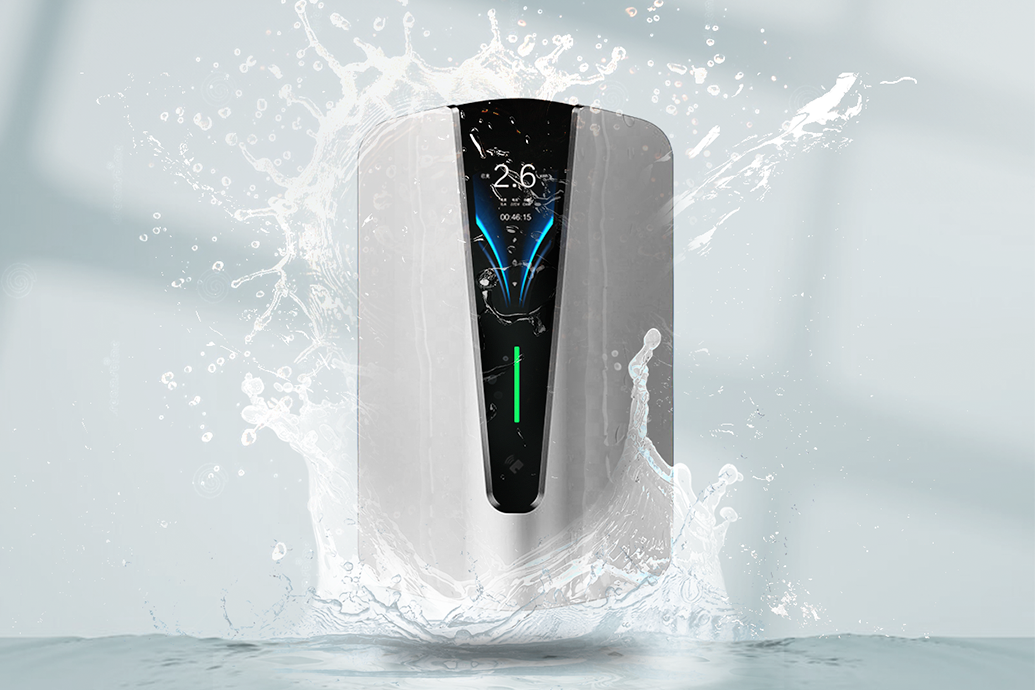

Durability
Works in extreme condition.
IK10
Enclosure Hardnress
IP65
Ingress Protection
5~95%
Working Humidity
Compatibility
Adapt to all Electric Vehicles in Hong Kong.

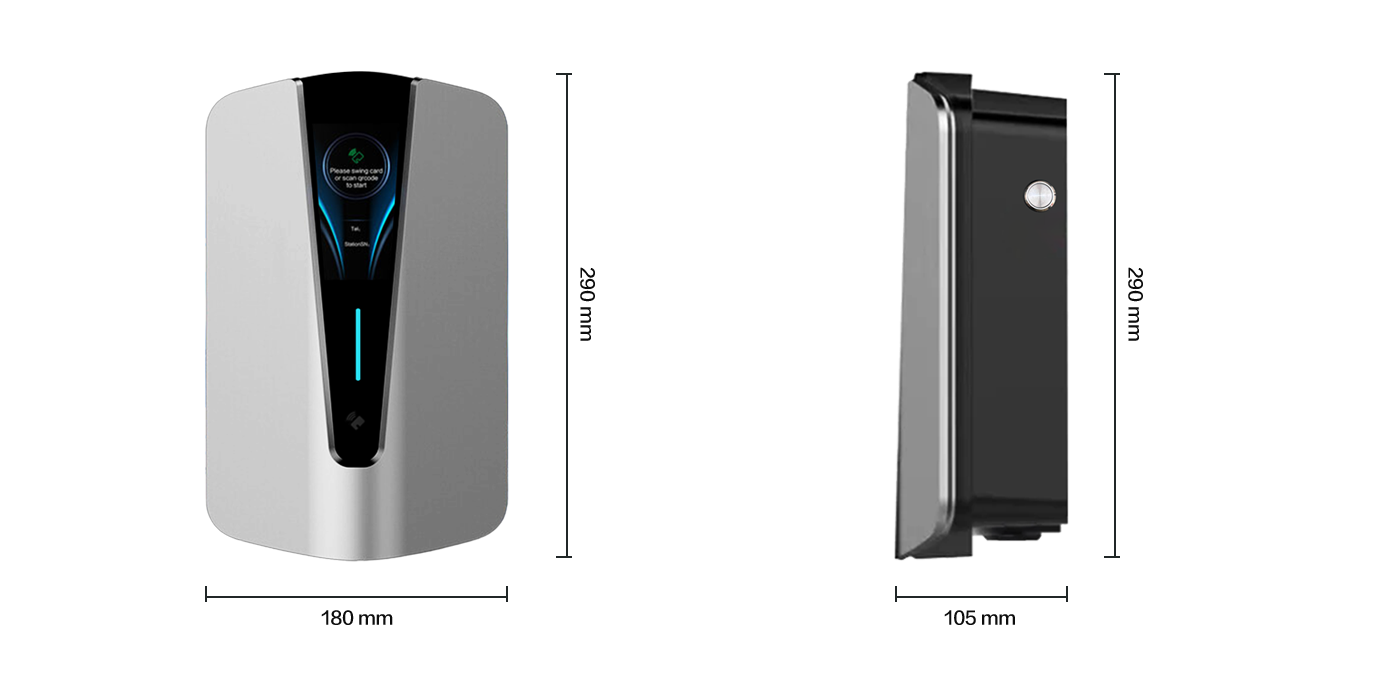

Dimension
Sleek and Compact Design
General specification
NTT V-Shield
LCD Screen / Indicator Light / APP
Plug & Charge / RFID / App
Mode 3
Type 1 / Type 2
Silver
5m / 7m / 10m / or Request
180 x 290 x 105mm
4.5kg
IP 55
-25 ºC to 50 ºC
-40 ºC to 50 ºC
CE, UKCA Mark. IEC 61851-1, IEC 61851-21-2, IEC 62196
Electrical specification
7kW (1P) / 22kW (3P)
220-240V (1P) / 380-440V (3P)
6A to 32A
50Hz / 60Hz
AC 30mA, DC 6mA
CAT III
