EVLife Nano
EVLIFE Wallbox Nano
- Compact size and contemporary design
- Charging power from 7kW(1 Phase) to 11kW (3 Phase)
- Plug In and Play / RFID / APP
- Versatile safety protections
- Built-in LED Indicator
- IP55 Dust and waterproof rating
- Wall mounted or pole mounted installation
EVLife Wallbox Nano
The newly launched EV charger features a sleek, contemporary design that emphasises compactness and style.
Connector Type
EVLife Wallbox Nano comes with Type 1 or Type 2 Connector which cover all local EV models.
LED Indicator
Built-in LED indicator showing the different charging status.
Idle
The charger is ready to use in Green light.
Charging
The vehicle is charging when it is in Blue light.
Fault
Red light shows the fault of charging.
Connector Length
Provides a wide range of connector lengths to meet your requirement.
Easy Installation
EVLife Nano can be easily installed on wall or standing-pole with it back-plate design.
Wall Mounted Installation
Standing Pole Installation

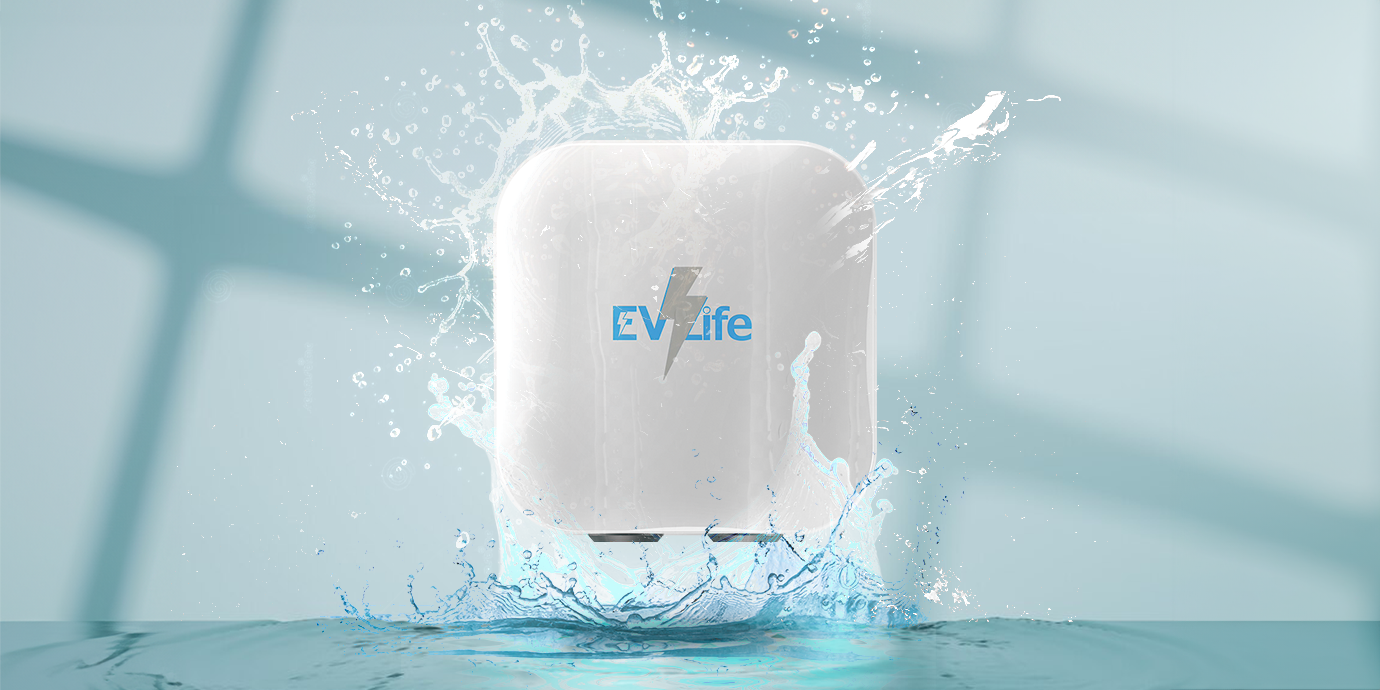

Durability
Works in extreme condition.
-30ºC to 50ºC
Operating Temperature
IP55
Ingress Protection
5~95%
Working Humidity
%20to%2011kW%20(3%20Phase)%0APlug%20In%20and%20Play%20/%20RFID%20/%20APP%0AVersatile%20safety%20protections%0ABuilt-in%20LED%20Indicator%0AIP55%20D...
){kind=link}
Compatibility
Adapt to all Electric Vehicles in Hong Kong.

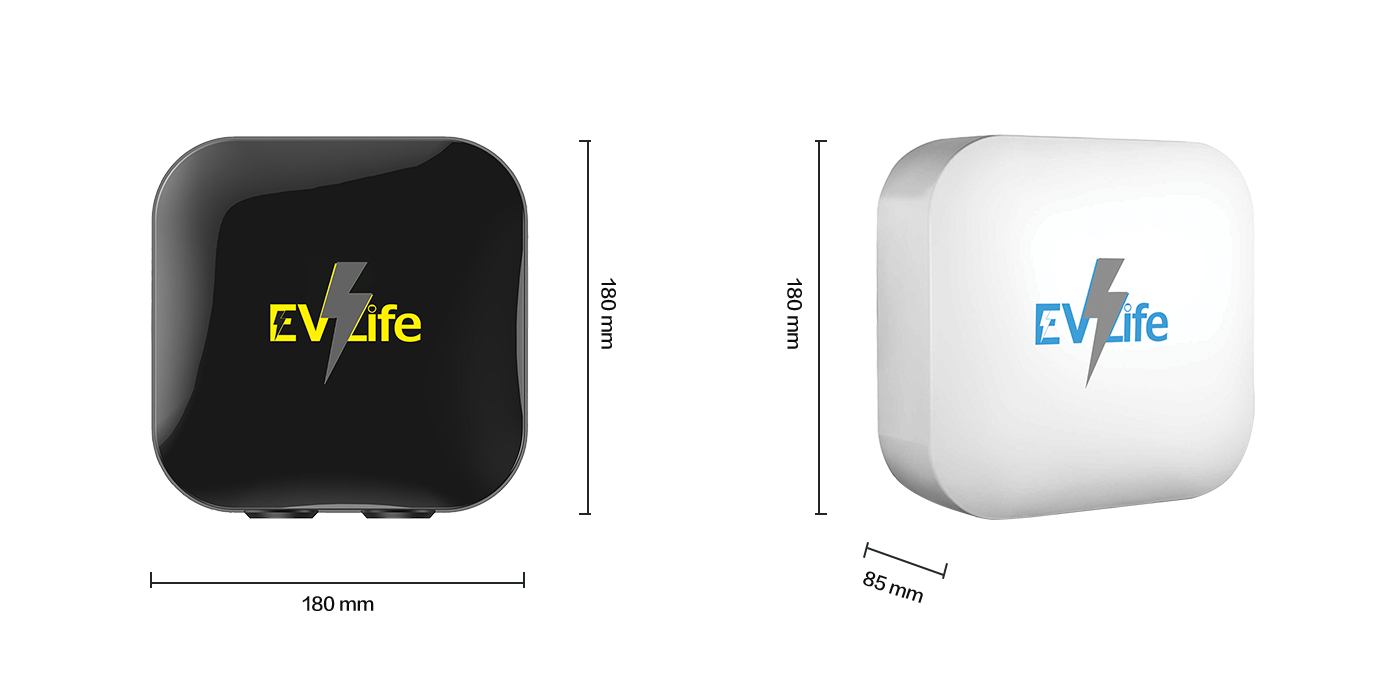

Dimension
Sleek and Compact Design
General specification
EVLife Wallbox Nano
LED Light / App
Plug In & Play / RFID / App
Mode 3
Type 1 / Type 2
White / Black
5m / 7m / 10m / or Request
180 x 180 x 85mm
4.5kg
IP 55
-30 ºC to 50 ºC
-5% ~ 95% Non-condensation
CE, UKCA Mark. IEC 61851-1, IEC 61851-21-2, IEC 62196
Electrical specification
7kW (1P) / 11kW (3P)
200-250V (1P) / 380-440V (3P)
6A,8A,13A,16A,20A,24A,32A
50Hz / 60Hz
AC 30mA, DC 6mA
