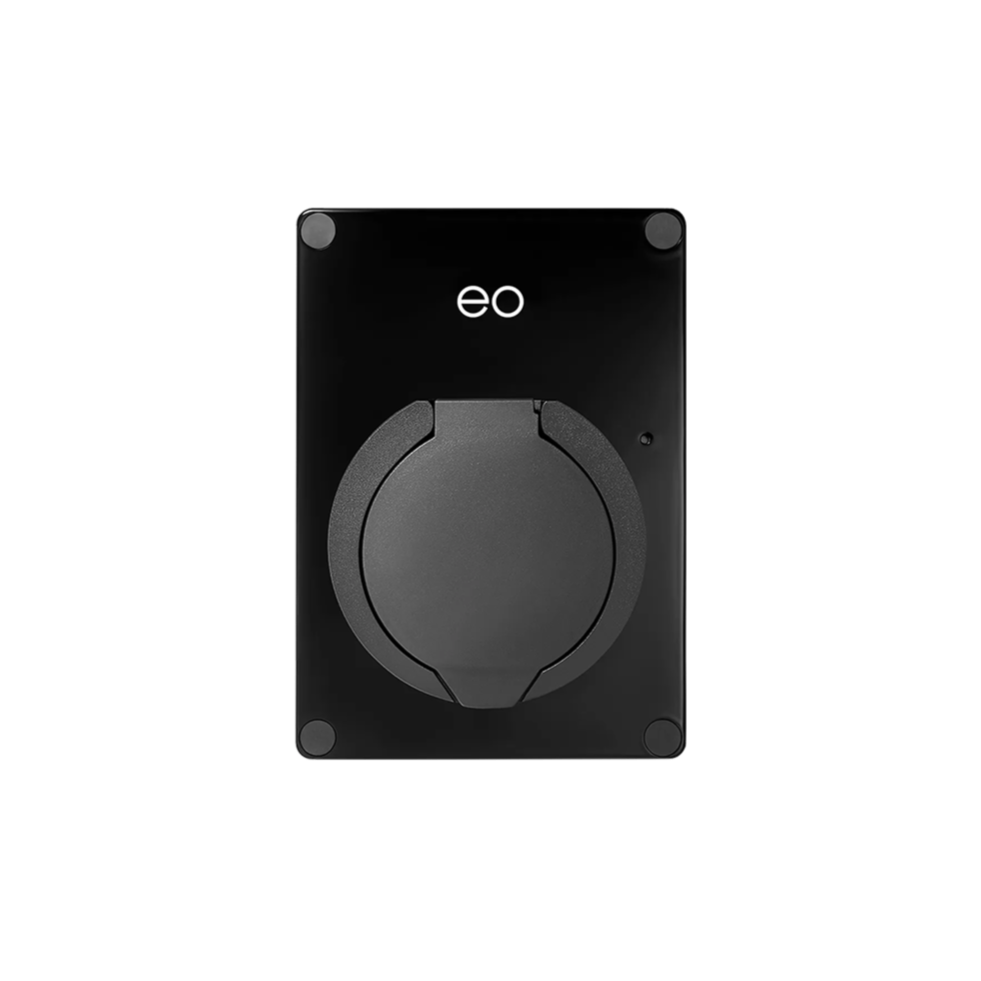

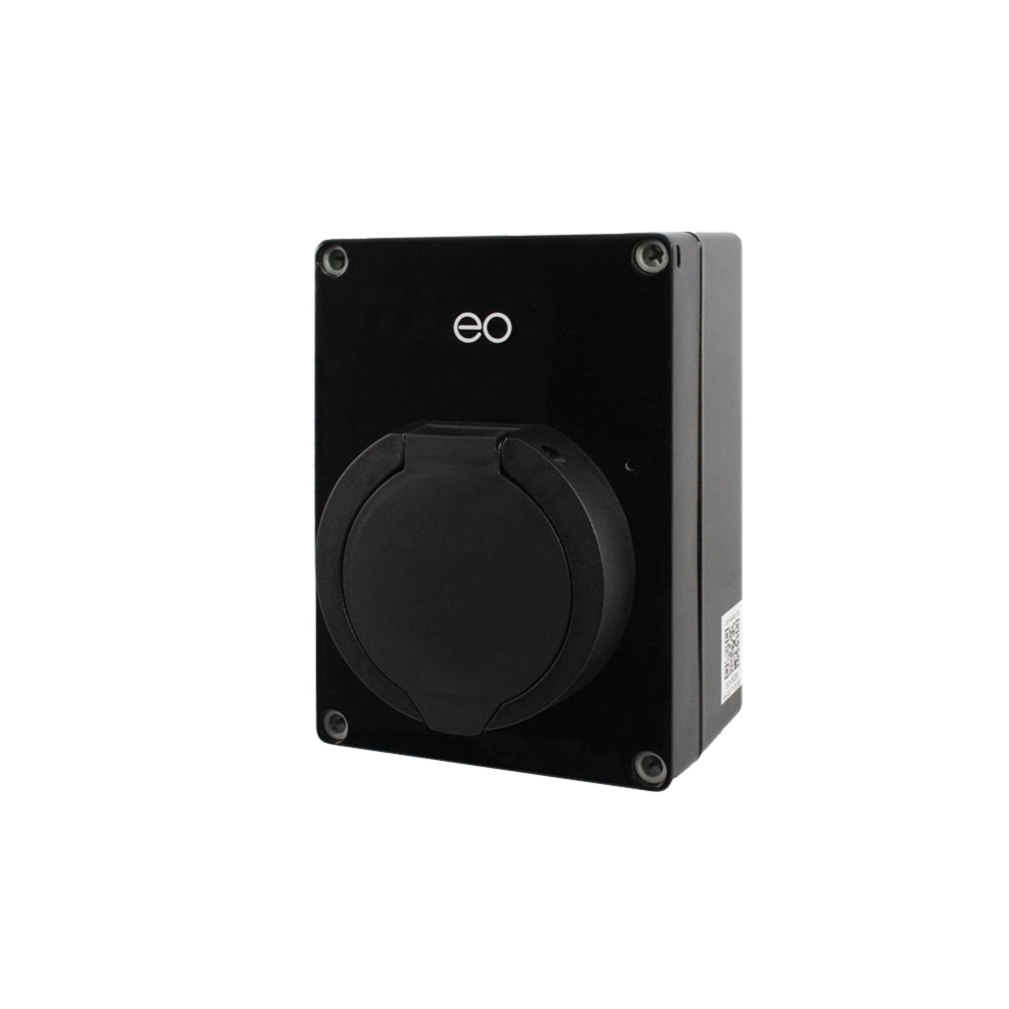

EO Mini Wallbox
EO Mini Wallbox
EO Mini Wallbox

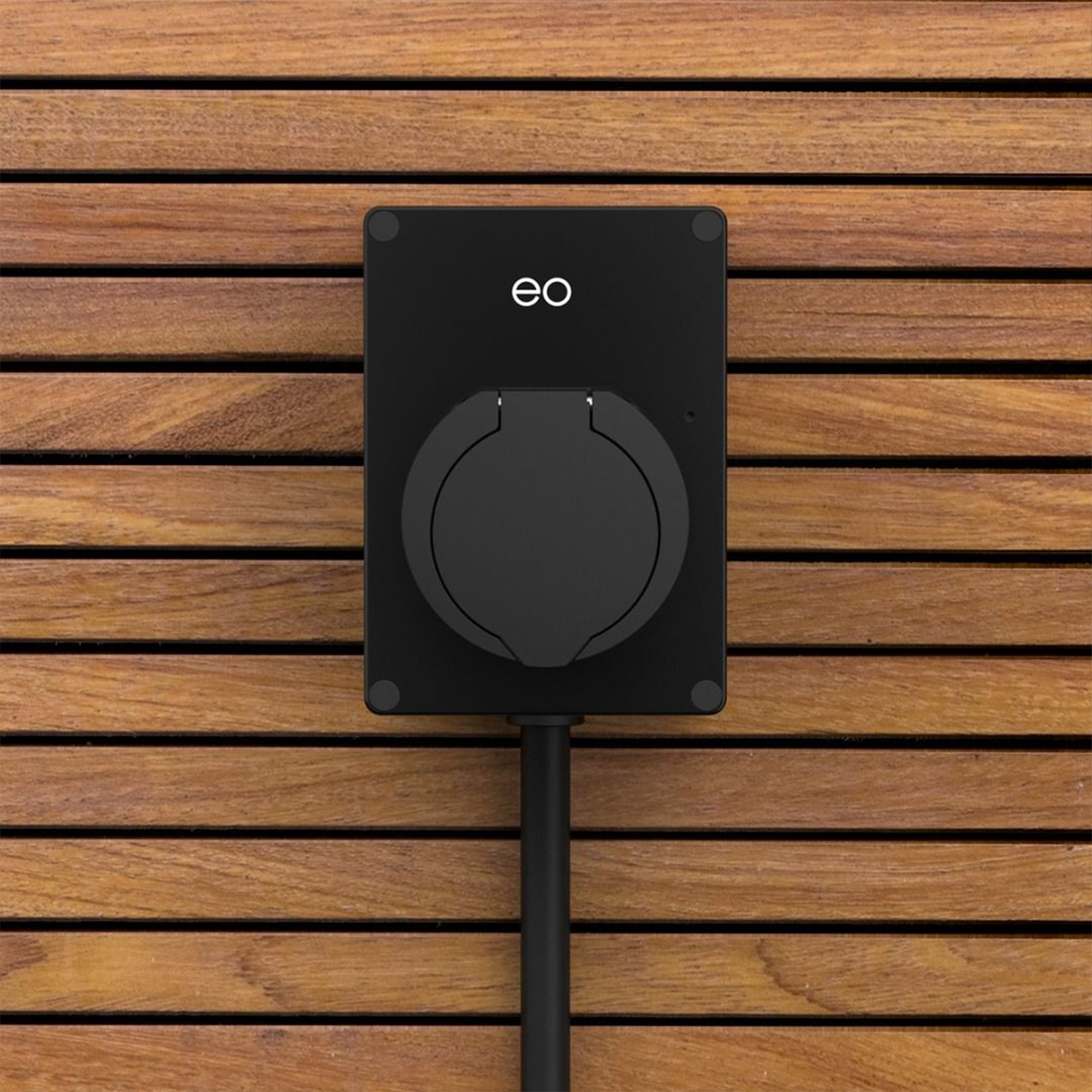

EO Mini Wallbox

The world’s smallest fast electric vehicle charger.
Designed to charge all plug-in vehicle brands.
  • Simple electrical installation
  • Integral 6mA DC leakage detection
  • Adjustable charging current
  • One of the smallest on the market
  • Universal socket connection
  • Up to 7kW Power Output
  • Conforms to international safety standards
Connector Length: Type 2 - Socket
Sale priceHK$6,800.00

EO Mini Wallbox

The World's Smallest EV Charger

EO Mini

The world's smallest electric vehicle charger designed to charge all plug-in vehicle brands.

Tiny

One of the smallest EV Charger on the market.

Interactive

Dynamic LED indicator light strip.

Durable

Enclosure with UL94 HB Fire Rated, IK08.

Efficient

Easy and simple installation.

Reliable

IP54 rated protection.

Safe

Integral 6mA DC leakage detection.

Versatile

  • Type 2 socket

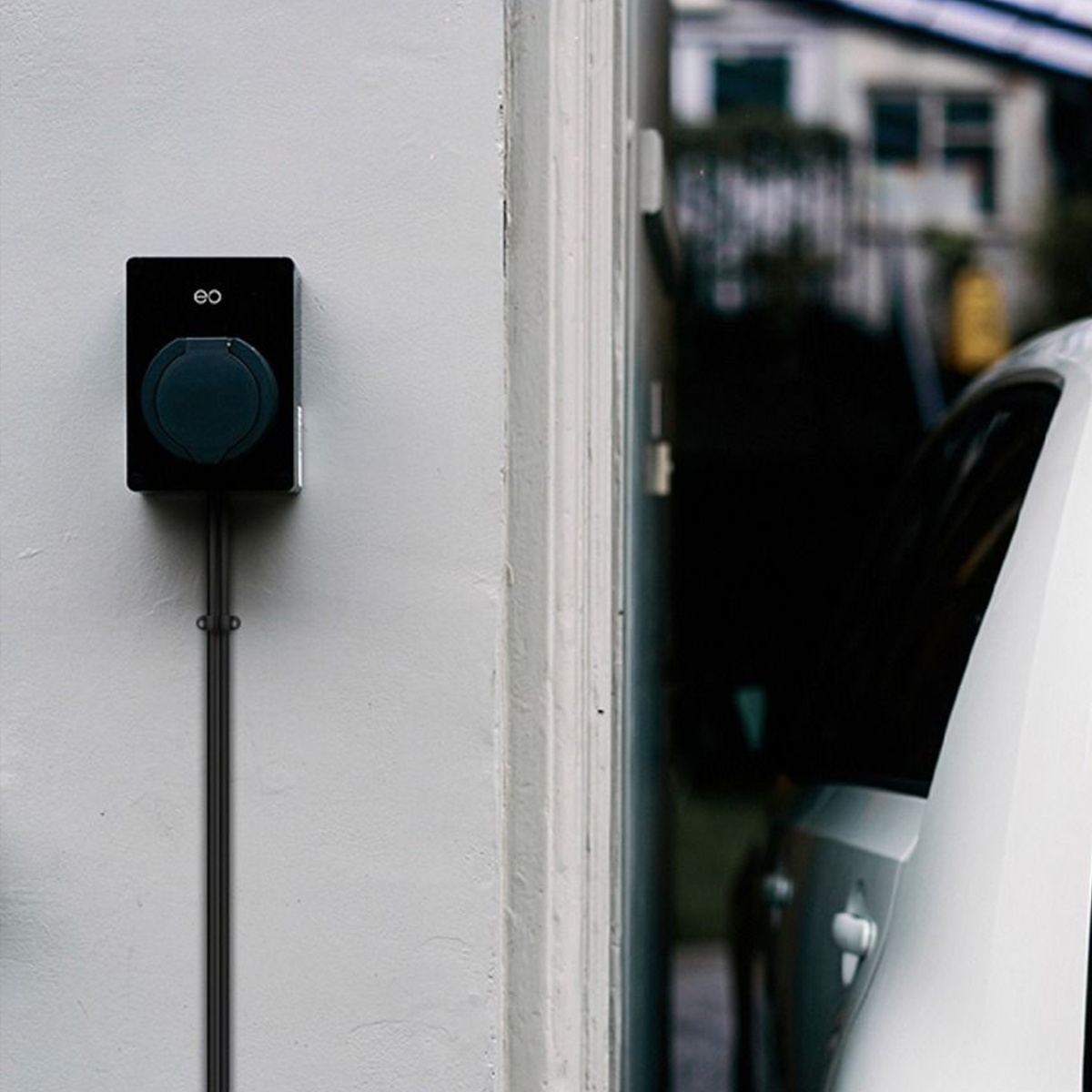

  • Wall-mount / floor-stand installation
  • 3 colour LED Indicator

Intelligent

  • Simple electrical installation
  • Adjustable charging current

Safe & Convenient

  • Type A + 6mA DC RCD
  • IP54 Ingress protection

EO Mini

Meet the world's smallest electric vehicle charger now.

Compatibility

Adapt to all Electric Vehicles in Hong Kong.

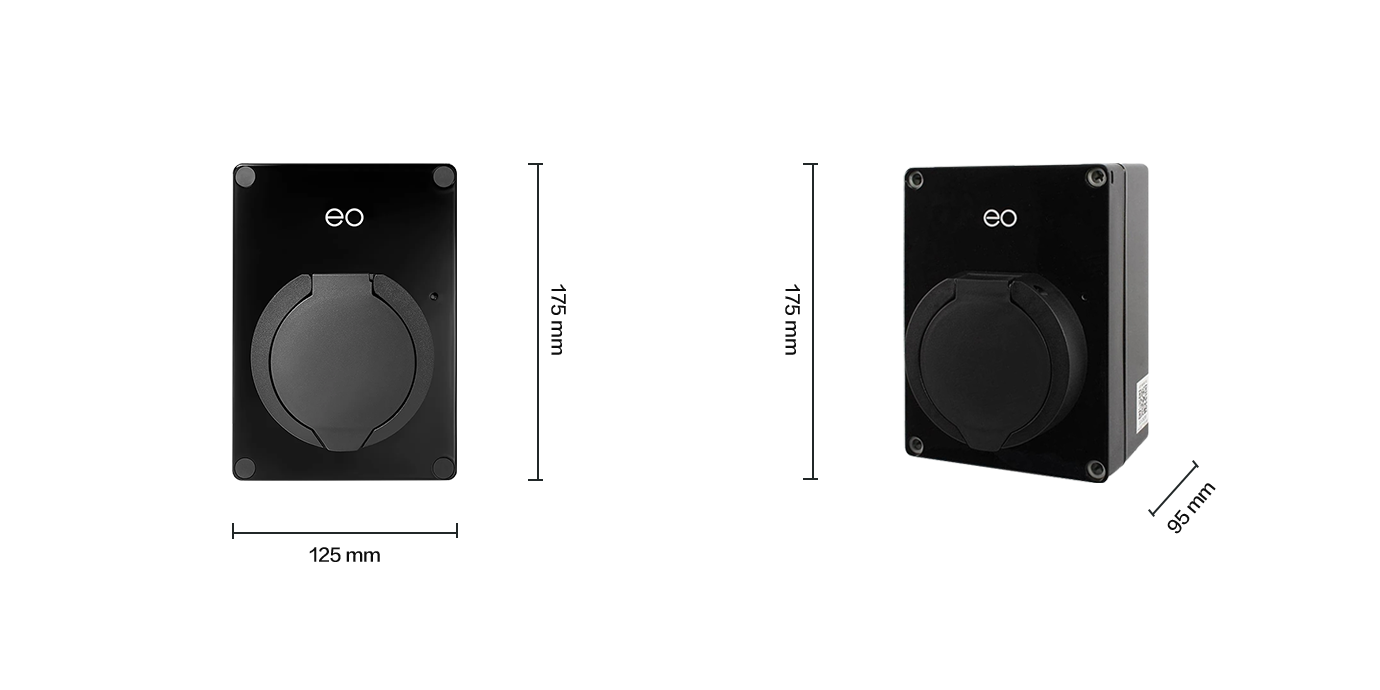

Dimension

Stylish and Practical Design

General specification

Model

EO Mini Wallbox

User Interface

LED Indicator

Charging Mode

Mode 3

Connector Type

Type 2 Socket

Colour

Black

Dimensions

125 x 175 x 95 mm

Weight

1.5 kg

Protection Rating

IP54

Impact Protection

IK08

Ambient Temperature

-10 ºC to 50 ºC

Electrical specification

Charging Power

7kW (1P 32A)

Rated Voltage

230V AC (1P)

Maximum Current

6A to 32A (Varible)

Rated Frequency

50Hz / 60Hz

Residual Current Detection

AC 30mA, DC 6mA
