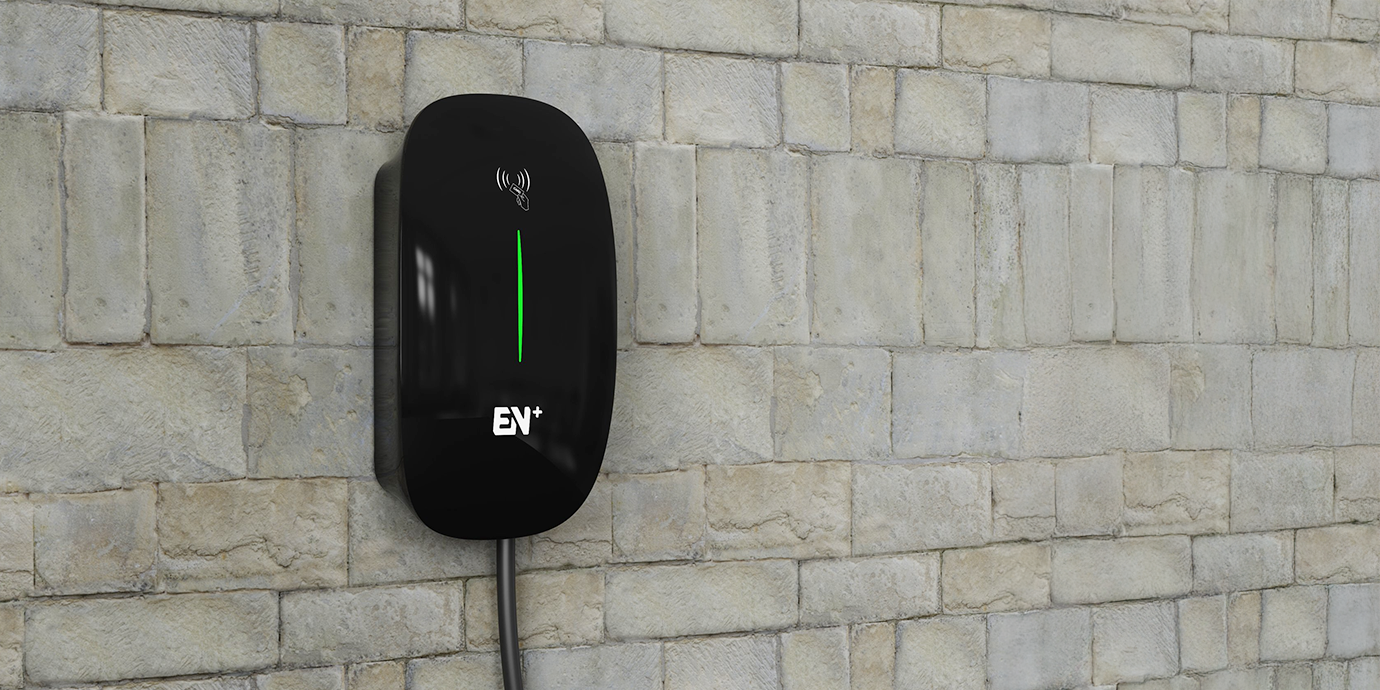

EN Plus Caro Home Wallbox
Caro Series Home Wallbox, a 2023 Red Dot Award winner, adds elegance to any charging location, be it at home, in business settings, or semi-public areas. Its intelligent load management system reduces grid peak pressures. Experience powerful load balancing with up to 25 chargers on a single circuit.
- Versatile: Choose between Type 2 cable or socket, wall/pole mounting, and different colours.
- Intelligent: Features dual connectivity options with app scheduling and dynamic load balancing.
- PV Compatible: Enables solar-powered charging with PV integration and adjustable current for optimal green energy use.
- Safe & Convenient: Includes 30mA Type A + 6mA DC leakage protection and relay-sticking safety.
EN+ Caro Series
Home Wallbox
A 2023 Red Dot Award winner, adds elegance to any charging location,
be it at home, in business settings, or semi-public areas.
Connector Type
Type 2 (Mennekes)
Type 2 Connectors are the norm in Hong Kong for charging your electric car at home, on a standard AC electricity supply.
Versatile
- Type 2 cable / socket
- Wall-mount / floor-stand installation
- Two enclosure colors (Pearl white / Space black)
- Activated by NFC
Intelligent
- Multi communications(Wi-Fi/4G/Ethernet)
- App charging scheduling
- Dynamic load balancing
Safe & Convenient
- Type A + 6mA DC RCD
- Relay-sticking protection
- Ergonomic and user-friendly enclosure design
Compatibility
Adapt to all Electric Vehicles in Hong Kong.
Dimension
Stylish and Practical Design
General specification
EN Plus Caro Series Home Wallbox
LED Indicator / App
RFID / App / Plug to Charge
Mode 3
Type 2 Socket / Type 2 - 7 Meters
White / Black
192 x 344 x 135 mm (Socket Ver.)
192 x 344 x 100 mm (Cable Ver.)
3 kg (Socket Ver.)
6 kg (Cable Ver.)
IP54 (Scoket Ver.)
IP65 (Cable Ver.)
IK08
-30 ºC to 50 ºC
5% ~ 95% RH
Electrical specification
7.4kW (1P 32A) / 11kW (3P 16A)
230V AC (1P)
400V AC (3P)
32A (1P)
16A (3P)
50Hz / 60Hz
AC 30mA, DC 6mA
