ELECHARG M3 (Commercial)

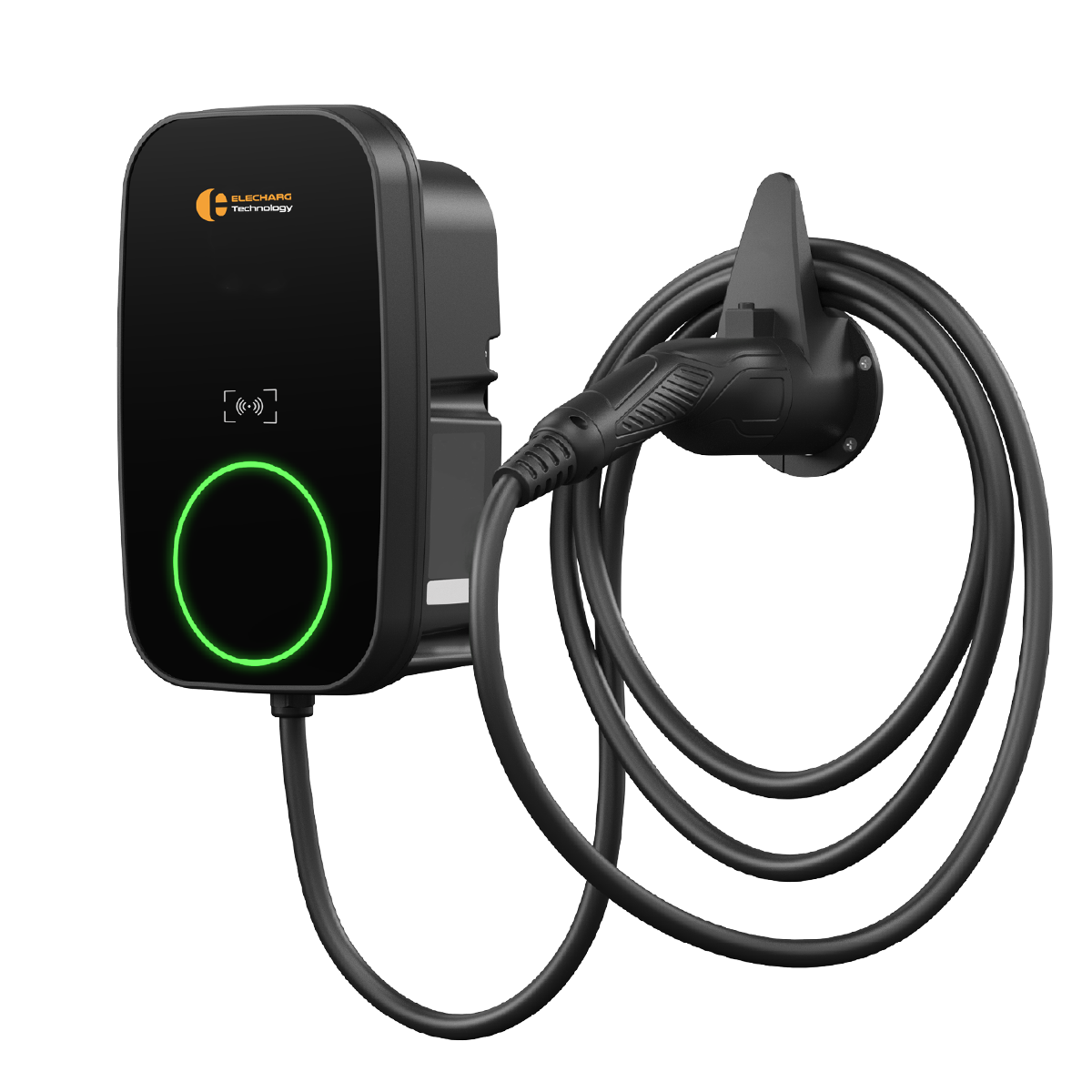

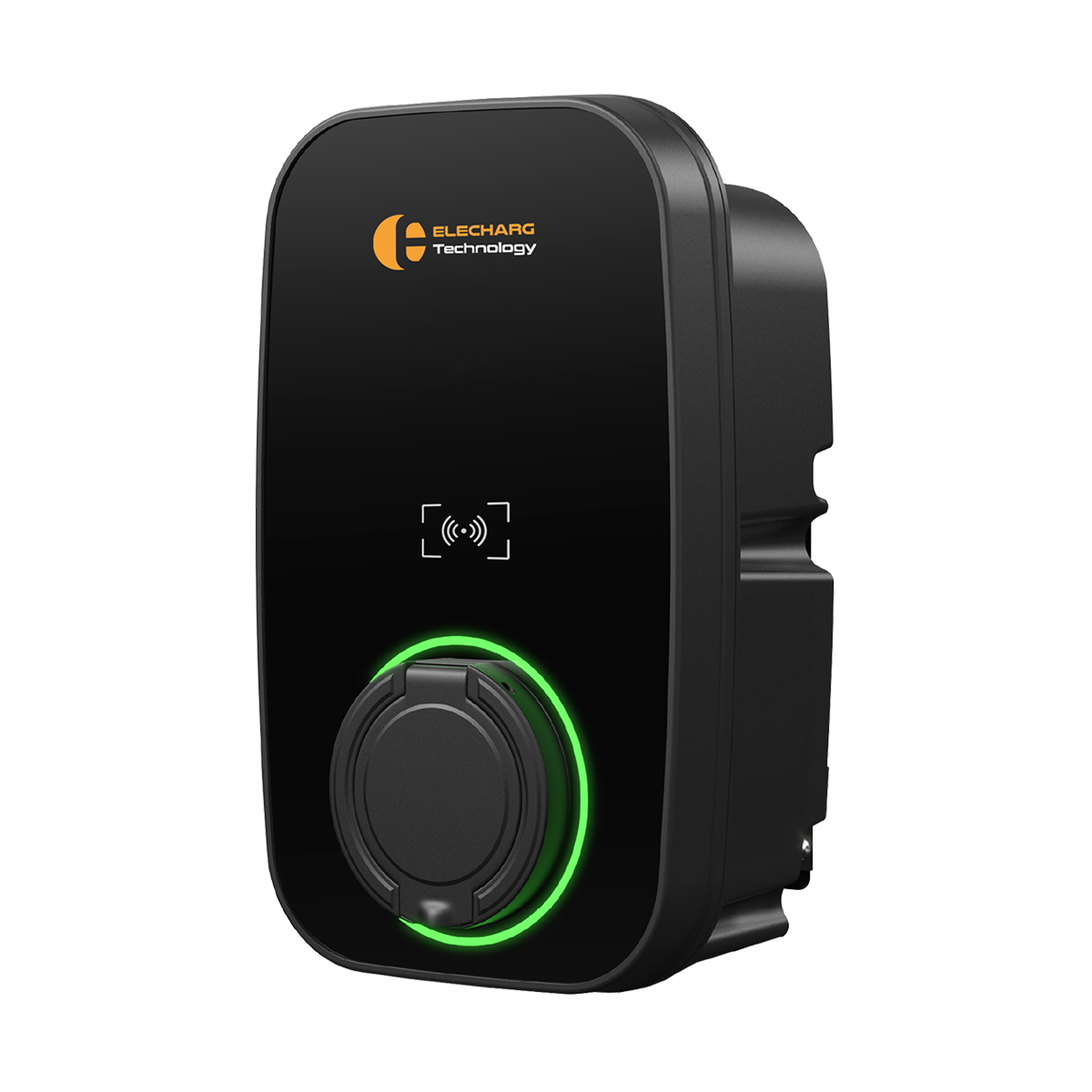

ELECHARG M3 Wall Charger
Concise, Smart, and Fully Automatic Setting for the User with Time Concern.
ELECHARG M3 is made for the Hong Kong market, highly customisable to fit the design and requirements of any place.
- Contemporary and sleek design
- Plug to Charger / App
- Charging power from 7kW(1 Phase) to 22kW (3 Phase)
- Versatile safety protections
- Built-in LED Indicator
- IP65 Dust and waterproof rating
- Wall mounted or standing pole installation
ELECHARG M3
Concise, Smart, Automatic
Connector Type
Type 1 or Type 2 Connector Options cover all local EV models.
Type 1
J1772
Type 2
Mennekes
LED Indicator
Built-in LED indicator showing the different charging status.

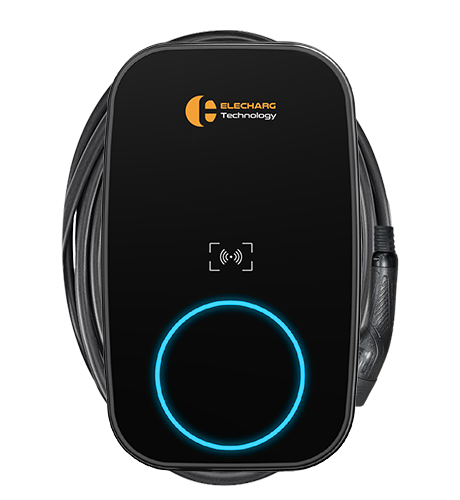

Idle
The charger is ready to use in blue light.

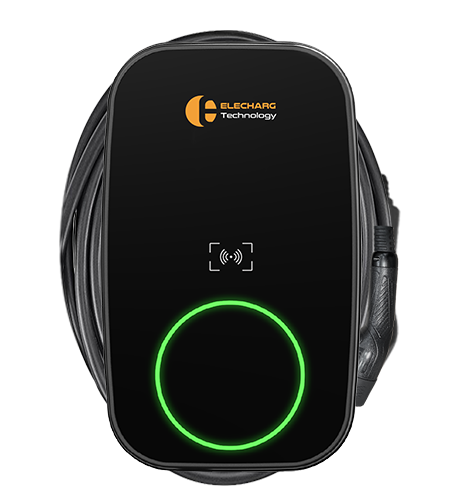

Charging
The vehicle is charging when it is in green light.
Fault
Red light shows the fault of charging.
Connector Length
Provides a wide range of connector lengths to meet your requirement.

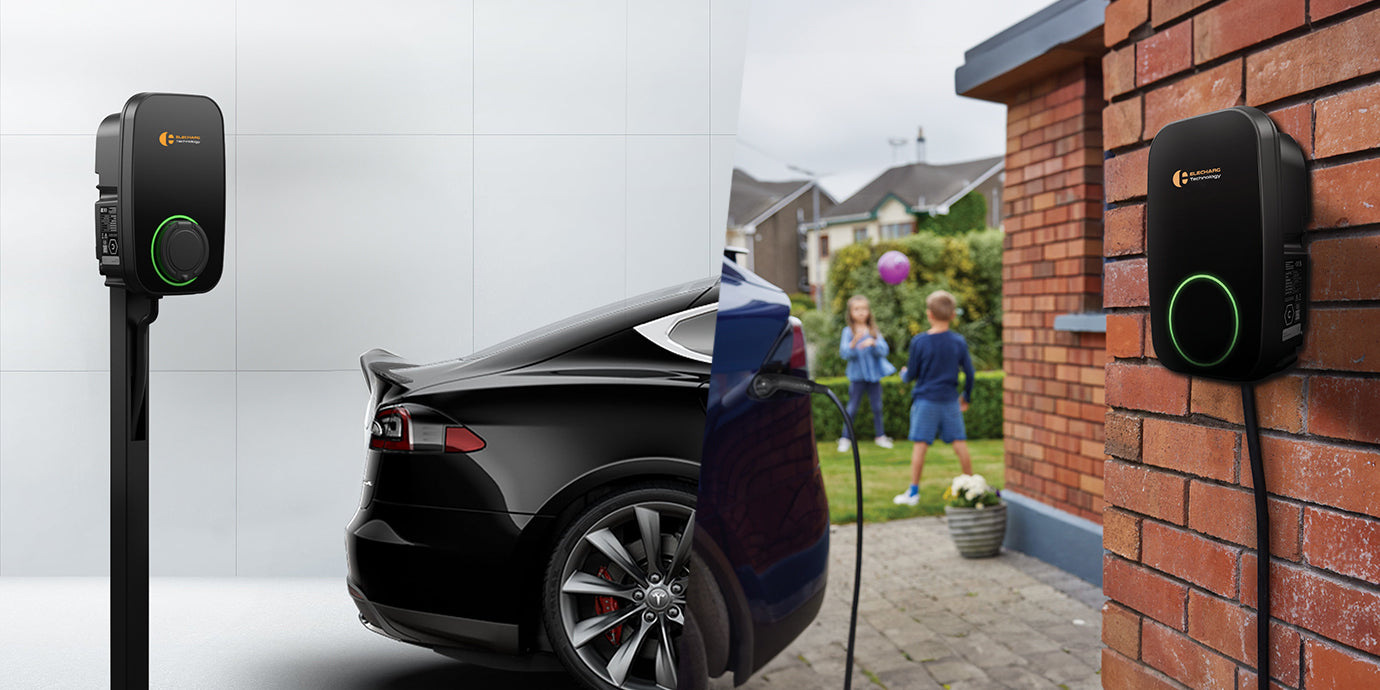

Easy Installation
ELECHARG M3 can be easily installed on wall or standing-pole with it back-plate design.
Standing Pole Installation
Wall Mounted Installation

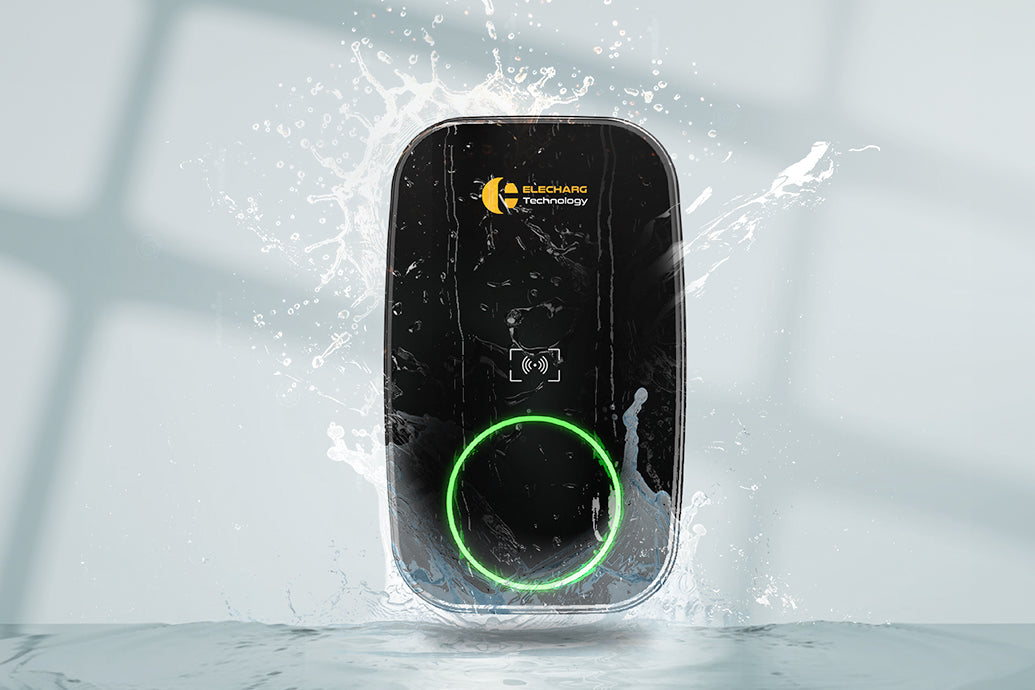

Durability
Works in extreme condition.
IP65
Enclosure Hardnress
-25°C - 50°C
Working Temperature
3 ~ 95%
Working Humidity
Compatibility
Adapt to all Electric Vehicles in Hong Kong.

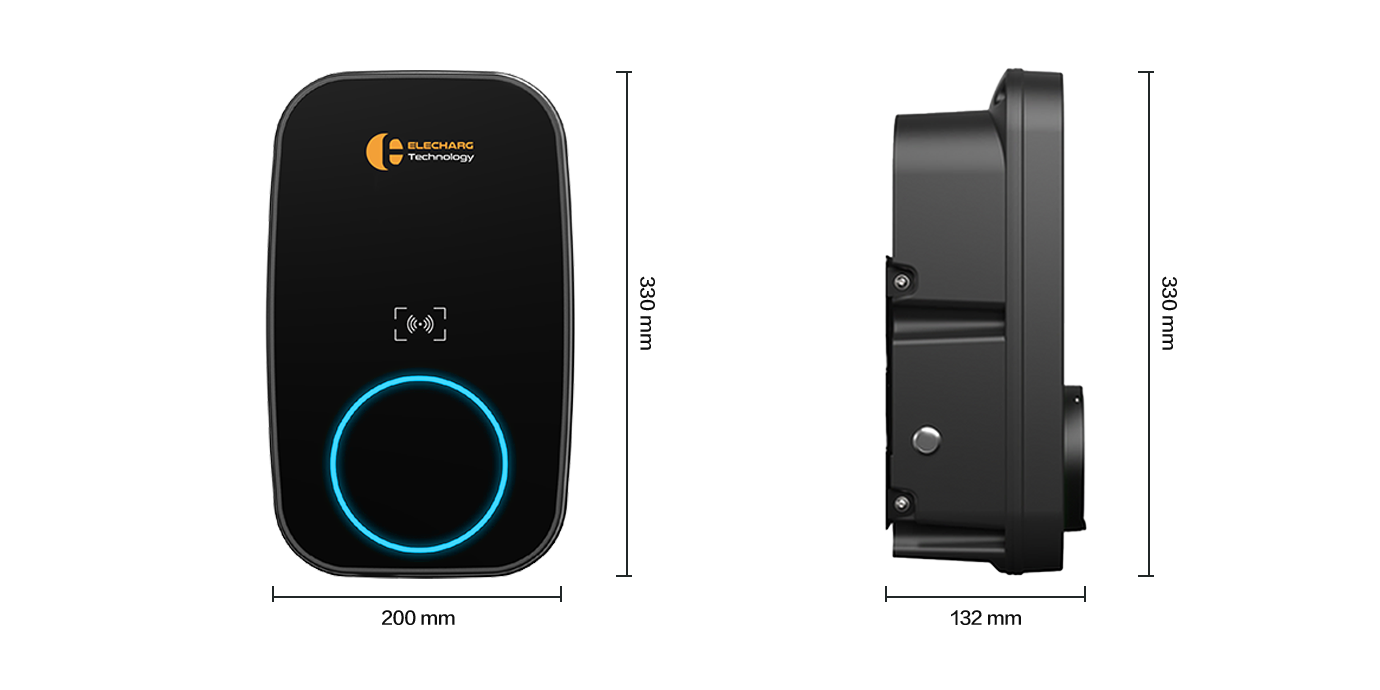

Dimension
Sleek and Compact Design
General specification
ELECHARG M3
LED Indicator / App
Plug & Charge / RFID / App
Mode 3
Type 1 / Type 2
Black / Gray
Socket / 5m / 7m / 10m / or Request
200 x 330 x 132 mm
5 kg

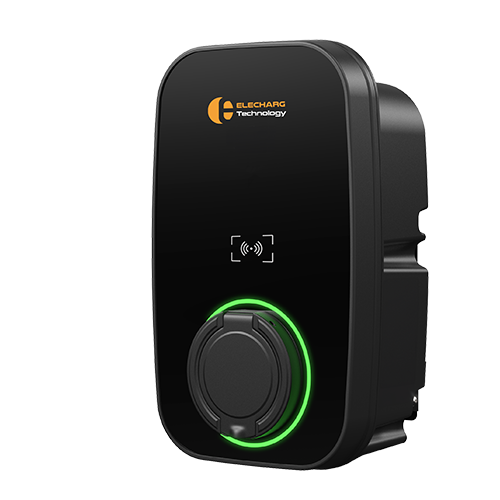

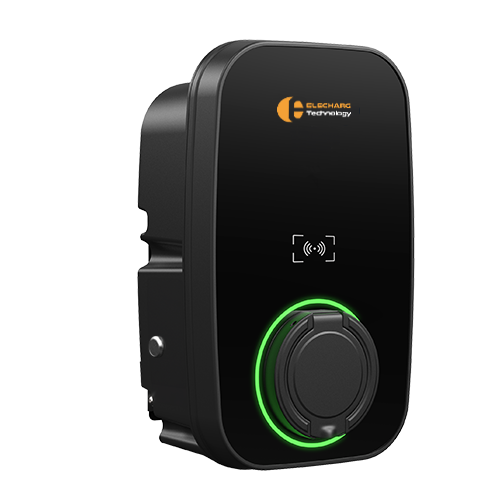

IP65, IP54 (Sokcet Ver.)
-25 ºC to 50 ºC
3% ~ 95%
CE, UKCA Mark. IEC 61851-1, IEC 61851-21-2, IEC 62196
Electrical specification
7kW (1P) / 22kW (3P)
220-240V (1P) / 380-440V (3P)
6A to 32A
50Hz / 60Hz
AC 30mA, DC 6mA
