Mini Electric Gen 3
MINI ELECTRIC Wallbox Gen 3
CHARGING MADE EASY
- Reliable, Safe and Fast Charging

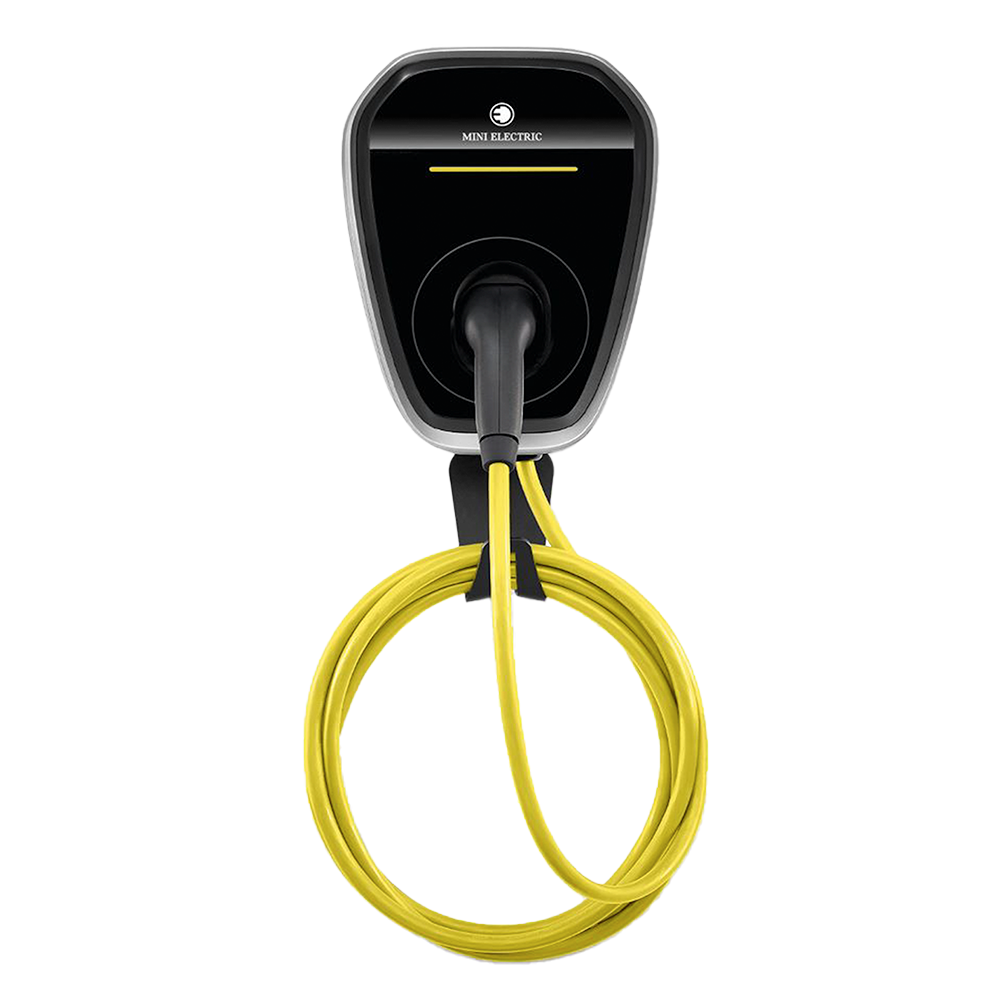

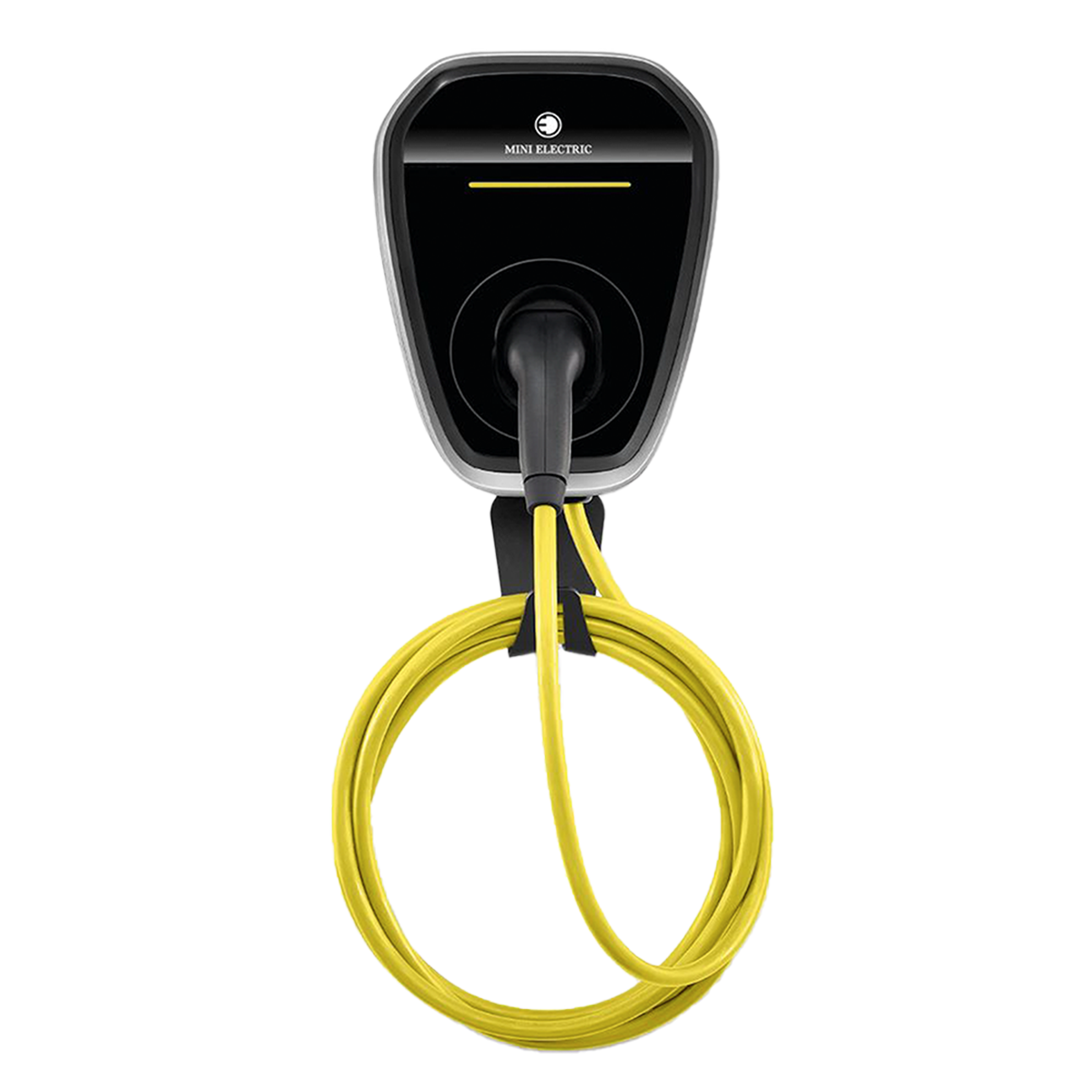

- Easy to use and Convenient Cable Management
- Integrated DC Fault Detection
- IP65 and IK09 Protection Ratings

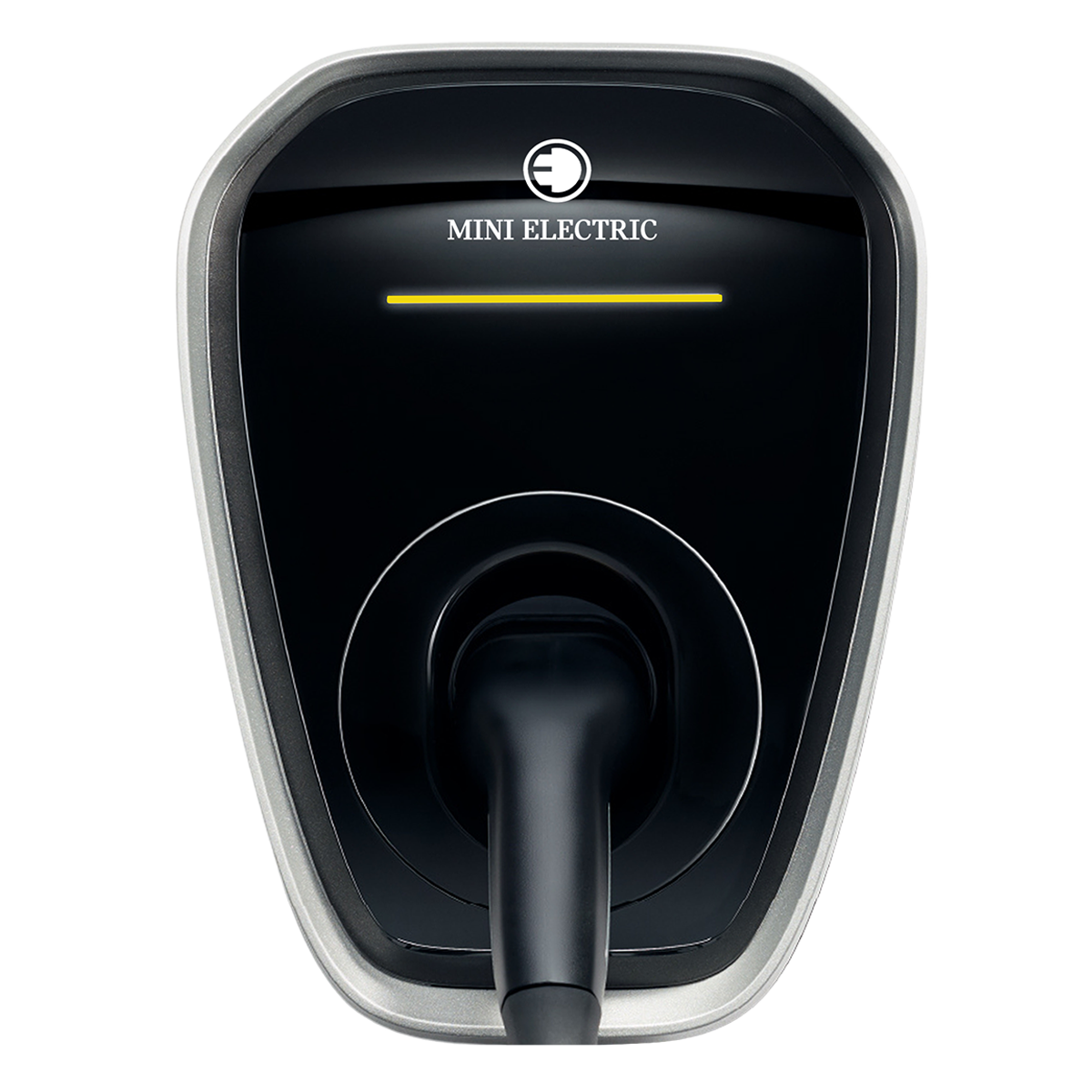

MINI Electric Wallbox Gen 3
Charging Made Easy.

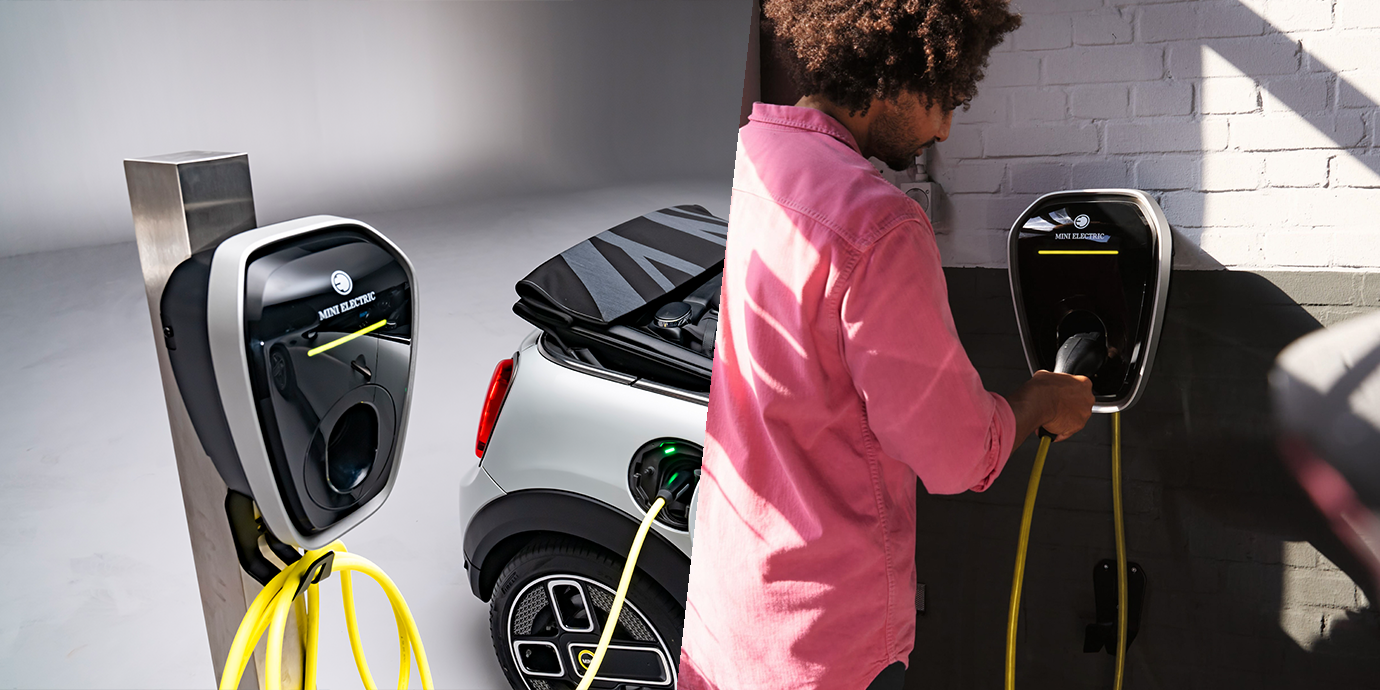

Easy Installation
BMW Wallbox can be easily installed on wall or standing-pole with it back-plate design.

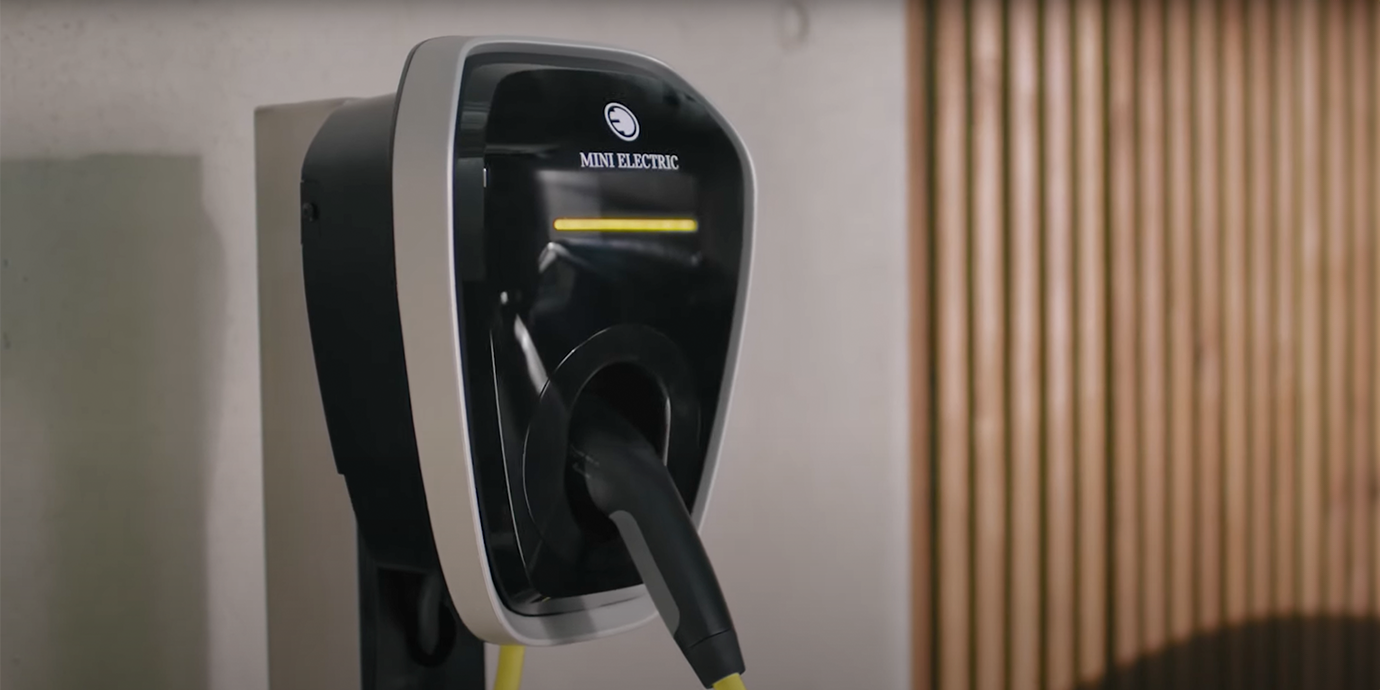

Standing Pole Installation
Wall Mounted Installation
Connector Type
Type 2 (Mennekes)
Type 2 Connectors are the norm in Hong Kong for charging your electric car at home, on a standard AC electricity supply.

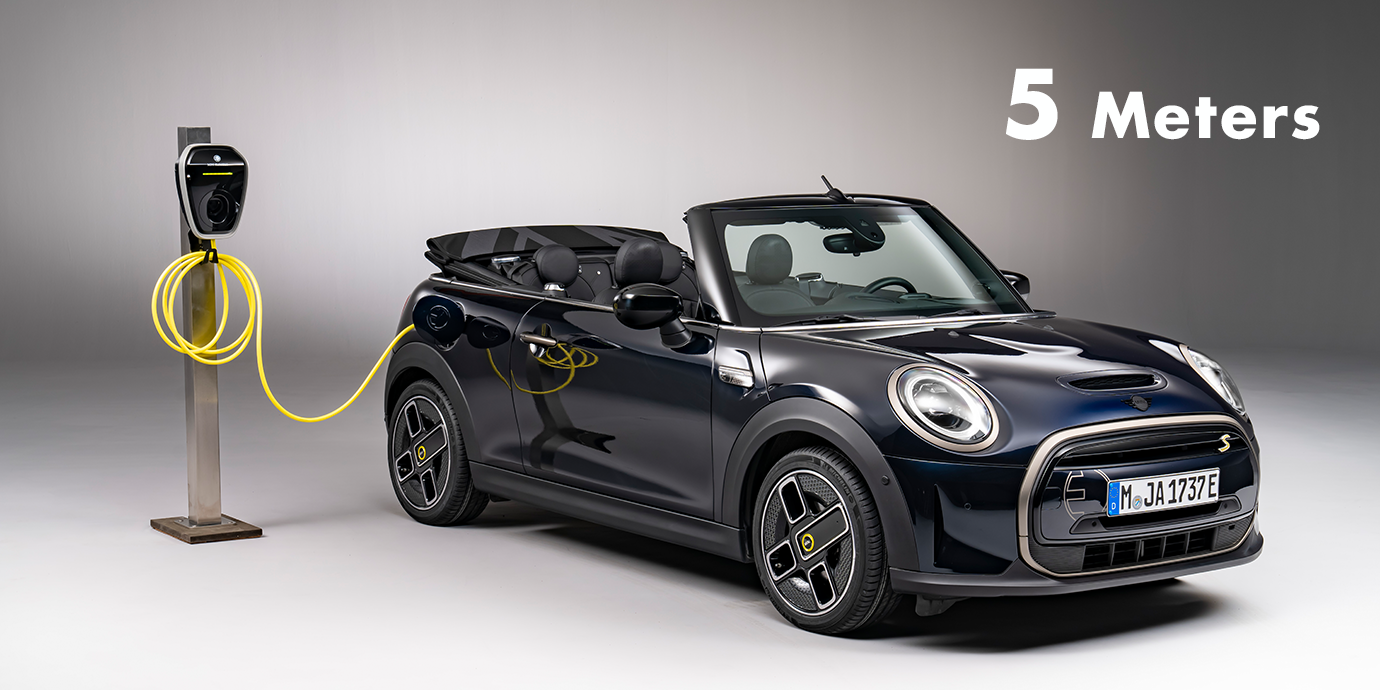

Connector Length
MINI Electric Wallbox Gen 3 comes with a 5 meters long of the connector plug.

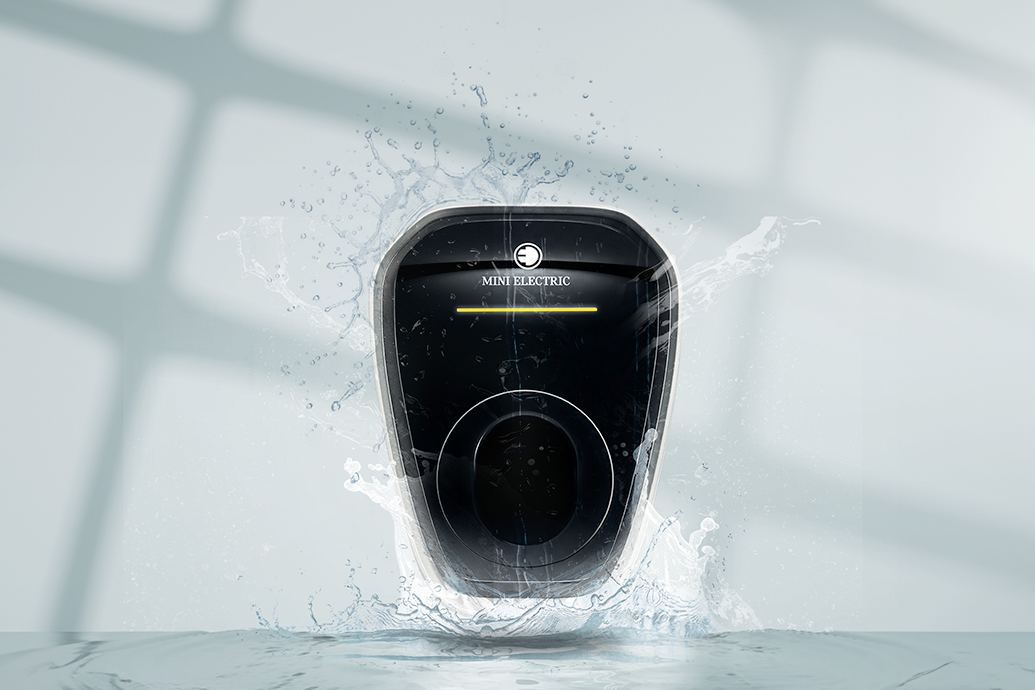

Durability
MINI Electric Wallbox Gen 3 capable to works in extreme condition.
IP65
Enclosure Hardnress
IK09
Impact Protection
-40°C ~ 50°C
Operating Temperature
Compatibility
Adapt to all Electric Vehicles in Hong Kong.

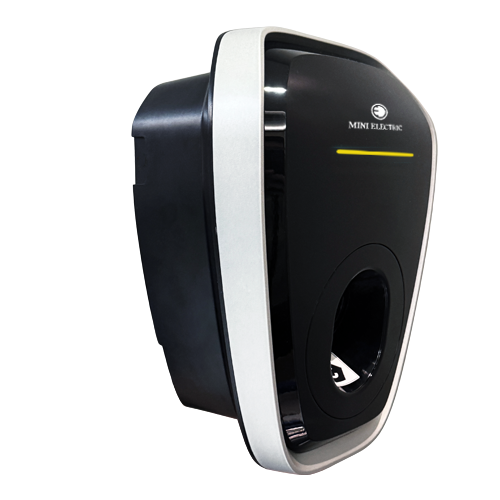

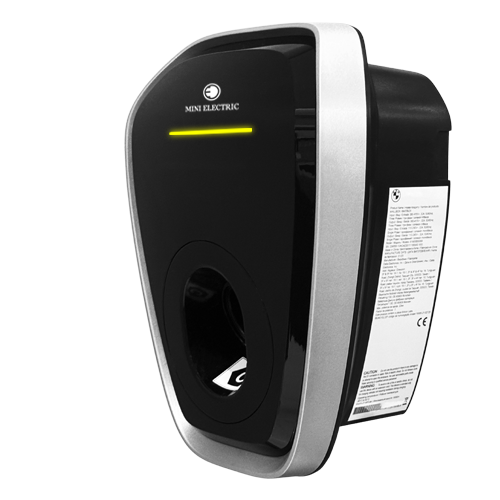

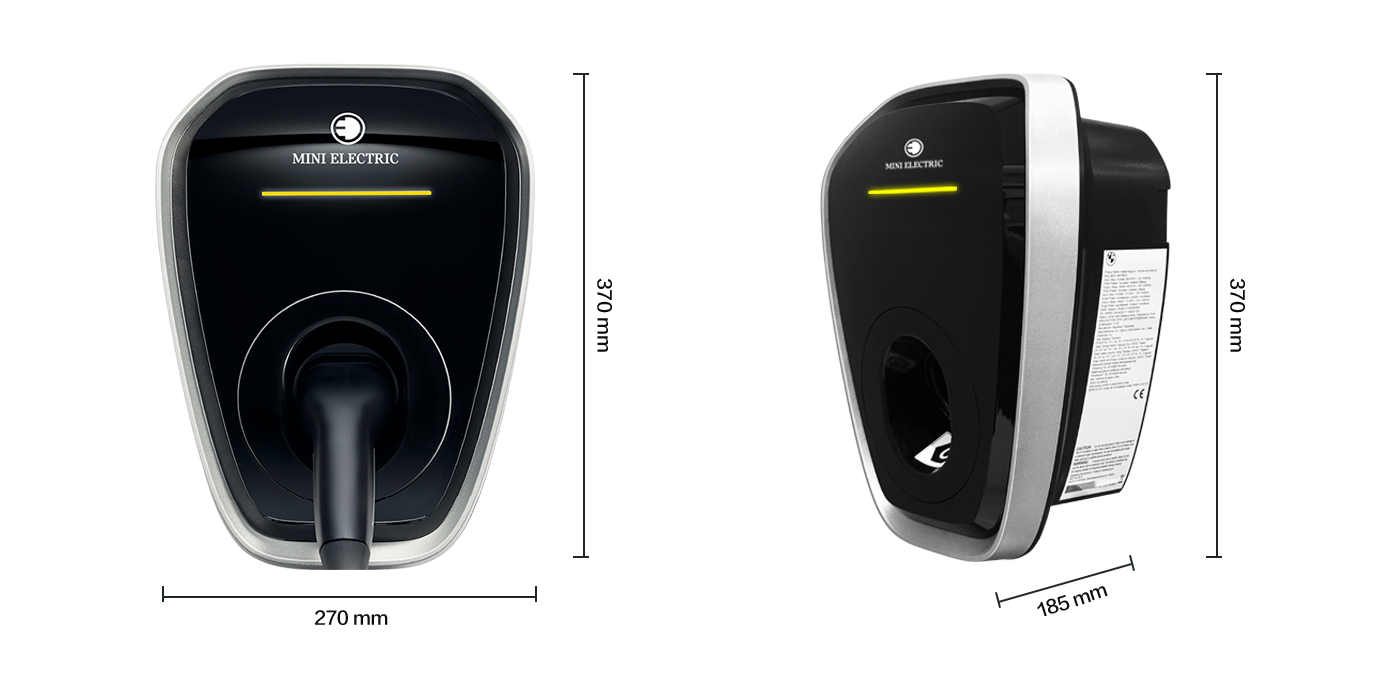

Dimension
Sleek and contemporary design.
General specification
MINI Electric Wallbox Gen 3
LED Indicator
Plug & Charge
Mode 3
Type 2
Black / Silver
5 m
270 x 370 x 185 mm
6 kg
IP65
IK09
-40 ºC to 50 ºC
95% relative humidity, non-condensing
Natural Cooling
Electrical specification
7kW (1P) / 22kW (3P)
220-240V (1P) / 380-415V (3P)
6A to 32A
50Hz / 60Hz
AC: 15~30 mA
DC: 3~6 mA
Value
Overcurrent, Short-circuit, Overvoltage, Undervoltage, Earth faults, Excess temperature.
Class II
OVC III
